SAHARA2A
DryLine® Dehydrator, Low-pressure membrane, 2.0–5.0 psig, with discrete alarm, 240 Vac, 50/60 Hz
Specifications
Product classification
| Product Type | Dehydrator |
| Product Brand | DryLine® |
General specifications
| Alarm Type | Discrete |
| Circuit Breaker Requirement | Electrical connections require separate circuits for dehydrator installation |
| Cut In Pressure | 14 kPa | 2.031 psig |
| Cut In/Out Pressure Type | Factory set |
| Cut Out Pressure | 34 kPa | 4.931 psig |
| Dehydrator Type | Automatic Membrane |
| Dew Point | Better than -45 °C (-50 °F) at 95% RH at +40 °C (+104 °F) |
| Excess-Run Alarm | 10 minutes, factory set |
| Flow Rate, nominal | 56.3 SLPM |
| High-Humidity Alarm | 7.5% RH, factory set |
| Low-Pressure Alarm | 68 mbar | 7 kPa | 1 psig |
| Mounting | Floor |
| Port Count | 1 |
| Port Type | 3/8 in PE tube |
| Power Cord | Europe power cord with stripped leads | USA power cord |
| Power-Fail Alarm | Loss of input power |
Dimensions
| Product Height | 266.7 mm | 10.5 in |
| Product Width | 431.8 mm | 17 in |
| Product Depth | 381 mm | 15 in |
| Volume Capacity, maximum | 31.1485 m³ | 1100 ft³ |
| Volume Capacity, minimum | 2.8317 m³ | 100.001 ft³ |

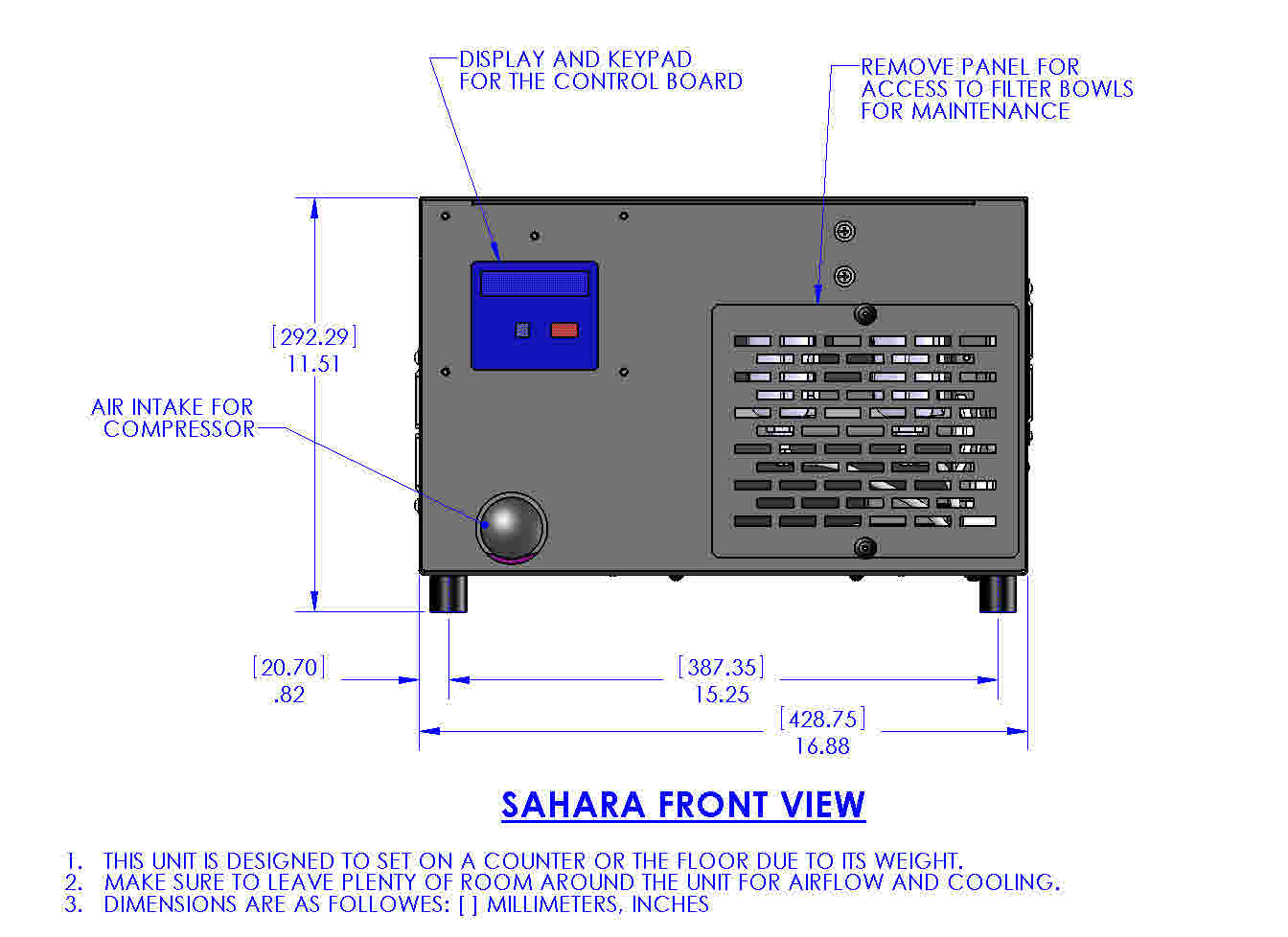

Outline drawing–front
| Click on image to enlarge. |

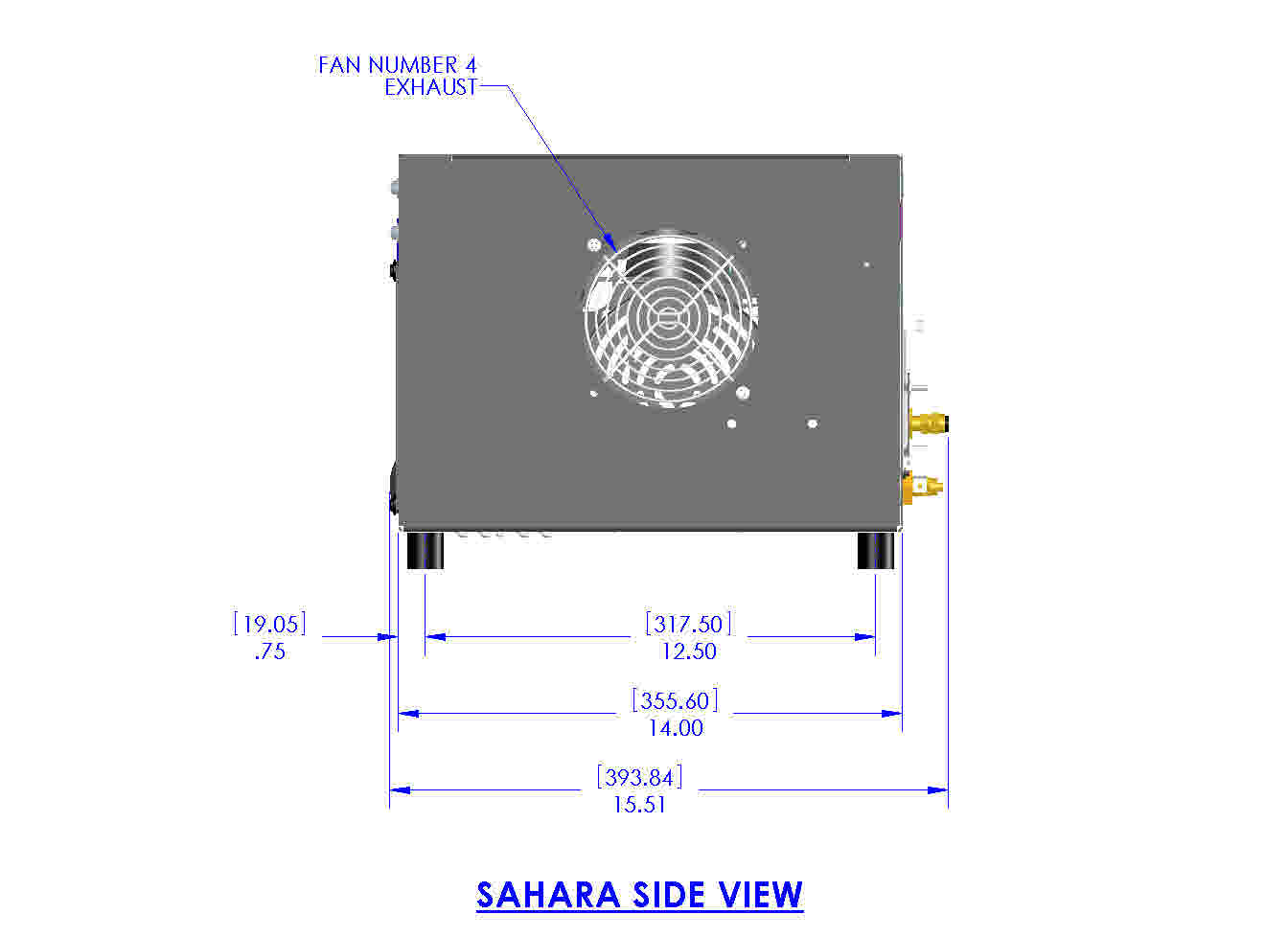

Outline drawing–side
| Click on image to enlarge. |

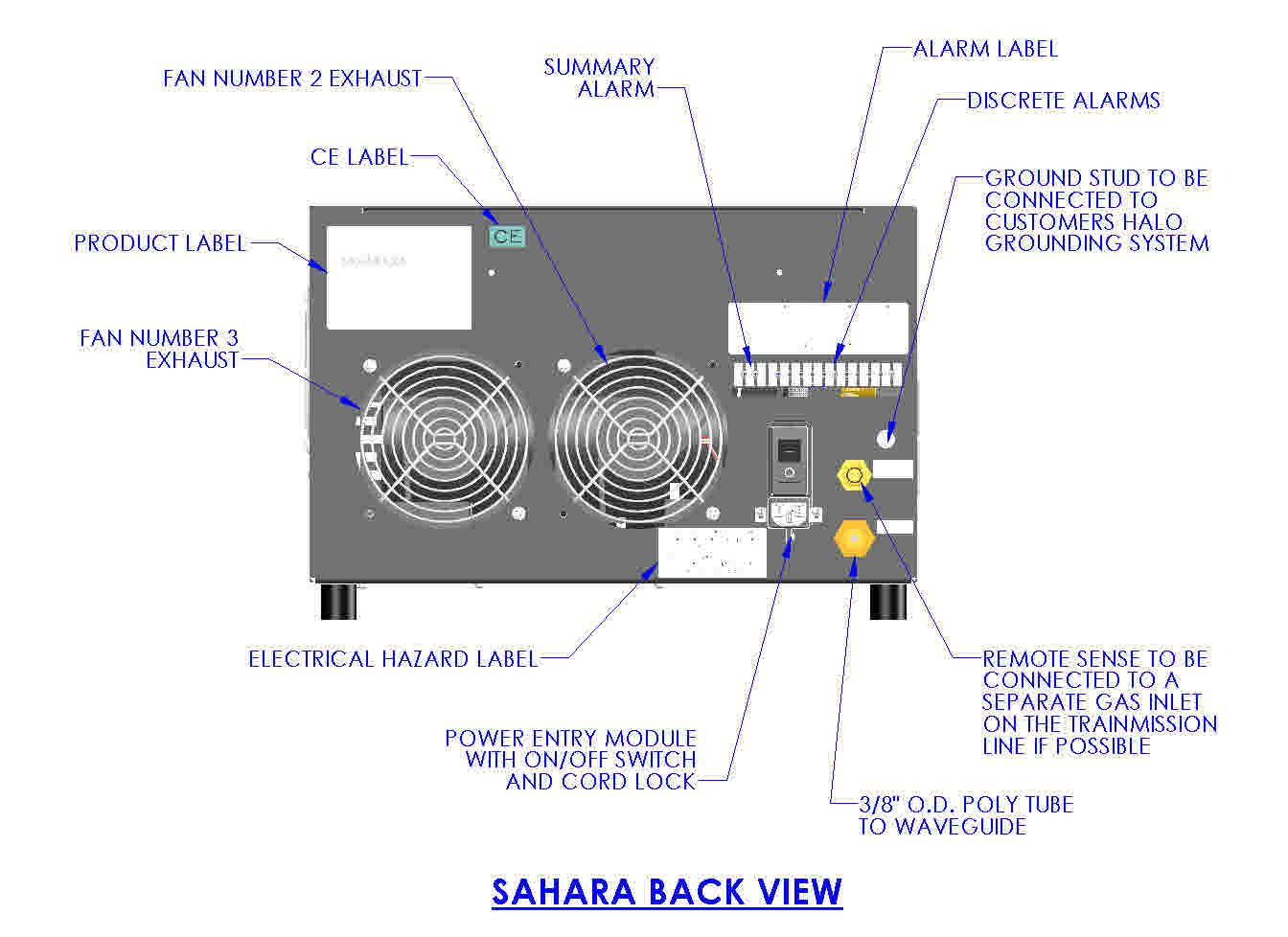

Outline drawing–back
| Click on image to enlarge. |
Outline drawing–top
| Click on image to enlarge. |
Electrical specifications
| Alarm Contact Rating | Form C dry contacts, 2 amps at 30 Vdc |
| Power Consumption, average | 925 W |
| Power Frequency | 60/50 Hz |
| Power Phase | Single |
| Suggested Circuit Breaker Size | 30 A |
| Voltage | 240 Vac ±10% |
| Voltage Type | ac |
Environmental specifications
| Operating Temperature | -10 °C to +40 °C (+14 °F to +104 °F) |
Packaging and weights
| Included | 3/8 in polyethylene tubing | 90º elbow fitting | Ball valve | Male connector fitting | PTFE tape | Power cord | Power cord connector lock | Screws |
| Weight, net | 25 kg | 55.115 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Above maximum concentration value |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
Product classification
| Product Type | Dehydrator |
| Product Brand | DryLine® |
General specifications
| Alarm Type | Discrete |
| Circuit Breaker Requirement | Electrical connections require separate circuits for dehydrator installation |
| Cut In Pressure | 14 kPa | 2.031 psig |
| Cut In/Out Pressure Type | Factory set |
| Cut Out Pressure | 34 kPa | 4.931 psig |
| Dehydrator Type | Automatic Membrane |
| Dew Point | Better than -45 °C (-50 °F) at 95% RH at +40 °C (+104 °F) |
| Excess-Run Alarm | 10 minutes, factory set |
| Flow Rate, nominal | 56.3 SLPM |
| High-Humidity Alarm | 7.5% RH, factory set |
| Low-Pressure Alarm | 68 mbar | 7 kPa | 1 psig |
| Mounting | Floor |
| Port Count | 1 |
| Port Type | 3/8 in PE tube |
| Power Cord | Europe power cord with stripped leads | USA power cord |
| Power-Fail Alarm | Loss of input power |
Dimensions
| Product Height | 266.7 mm | 10.5 in |
| Product Width | 431.8 mm | 17 in |
| Product Depth | 381 mm | 15 in |
| Volume Capacity, maximum | 31.1485 m³ | 1100 ft³ |
| Volume Capacity, minimum | 2.8317 m³ | 100.001 ft³ |
Electrical specifications
| Alarm Contact Rating | Form C dry contacts, 2 amps at 30 Vdc |
| Power Consumption, average | 925 W |
| Power Frequency | 60/50 Hz |
| Power Phase | Single |
| Suggested Circuit Breaker Size | 30 A |
| Voltage | 240 Vac ±10% |
| Voltage Type | ac |
Environmental specifications
| Operating Temperature | -10 °C to +40 °C (+14 °F to +104 °F) |
Packaging and weights
| Included | 3/8 in polyethylene tubing | 90º elbow fitting | Ball valve | Male connector fitting | PTFE tape | Power cord | Power cord connector lock | Screws |
| Weight, net | 25 kg | 55.115 lb |
| Click on image to enlarge. |
| Click on image to enlarge. |
| Click on image to enlarge. |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Above maximum concentration value |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
