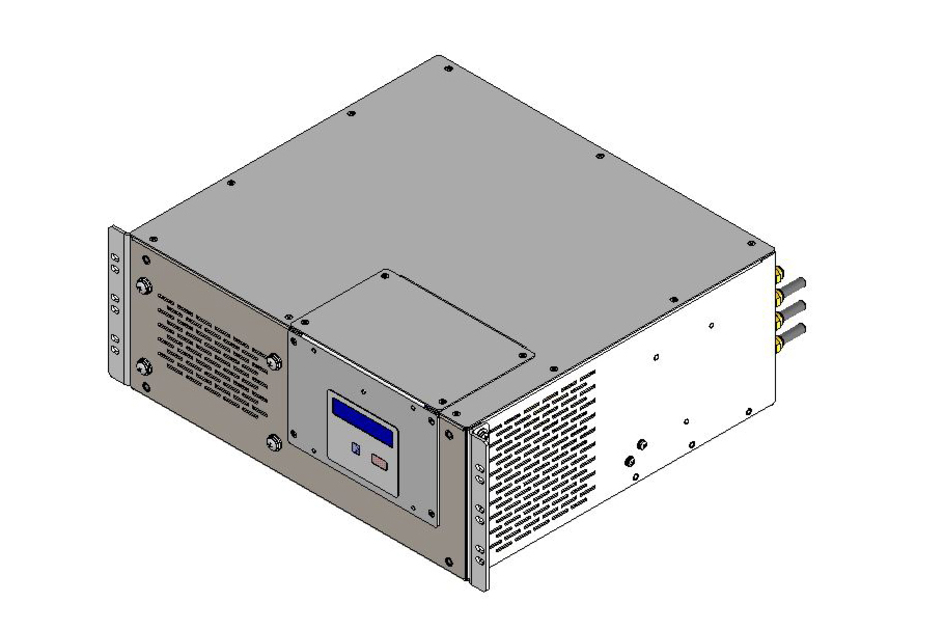

MT050C

DryLine® Dehydrator, Low-pressure membrane, 19 in rack mountable, Wall mountable, 3.0 psig (2-6 adjustable), with summary and discrete alarms, 115/230 Vac, 50/60 Hz

Finish making your selections or clear them to view relevant specifications.

Download specifications

Find a partner

Features and benefits

See related products for dc options, sold separately

Specifications

Product classification

Product Type	Dehydrator
Product Brand	DryLine®

General specifications

Alarm Type	Discrete \| Summary
Circuit Breaker Requirement	Electrical connections require separate circuits for dehydrator installation
Dehydrator Type	Automatic Membrane
Dew Point	Better than -45 °C (-50 °F) at 95% RH at +40 °C (+104 °F)
Excess-Run Alarm	10 minutes, factory set
Flow Rate, nominal	3.4 SLPM
High-Humidity Alarm	7.5% RH, factory set
Low-Pressure Alarm	68 mbar \| 7 kPa \| 1 psig
Mounting	Bench \| Floor \| Rack \| Wall
Port Count	4
Port Type	3/8 in PE tube
Power Cord	Europe power cord with stripped leads \| USA power cord
Power-Fail Alarm	Loss of input power
Rack Type	EIA 19 in \| ETSI N3 (optional)
Rack Units	4
Regulated Output Pressure Type	Factory set
Regulated Output Pressure, maximum	41.4 kPa \| 6.005 psig
Regulated Output Pressure, minimum	14 kPa \| 2.031 psig

Dimensions

Product Height	172.7 mm \| 6.799 in
Product Width	439.4 mm \| 17.299 in
Product Depth	419.1 mm \| 16.5 in
Volume Capacity, maximum	1.699 m³ \| 60 ft³
Volume Capacity, minimum	0 m³ \| 0 ft³

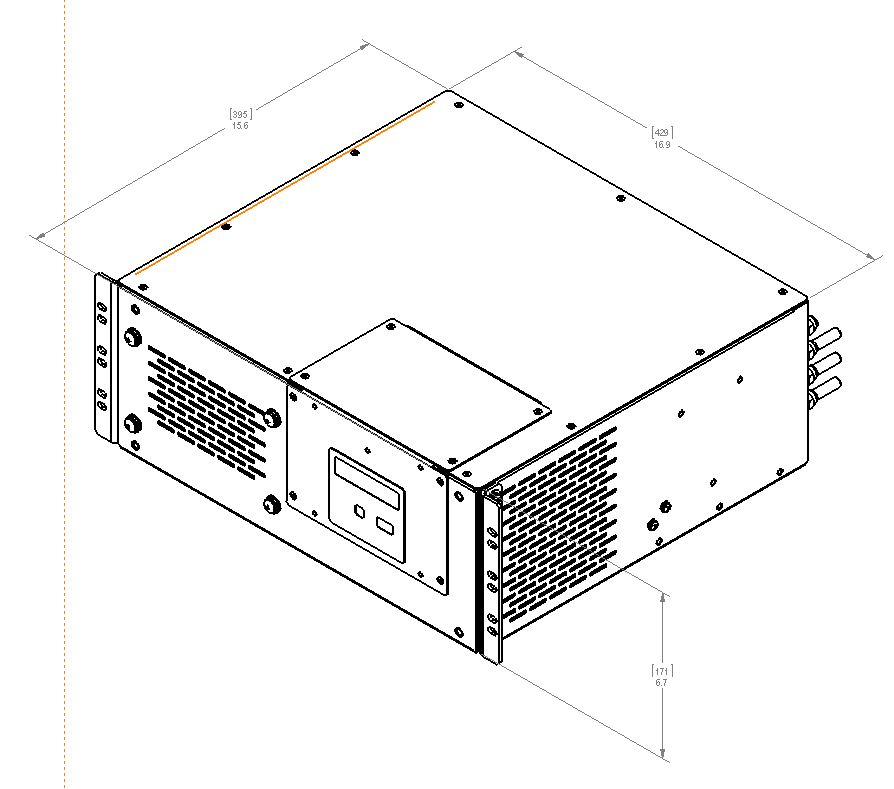

Outline drawing–section

Click on image to enlarge.

Electrical specifications

Alarm Contact Rating	Form C dry contacts, 2 amps at 30 Vdc
Power Consumption, at runtime	220 W
Power Consumption, average	6.6 W
Power Consumption, maximum	220 W
Power Consumption, minimum	0.2 W
Power Frequency	60/50 Hz
Power Phase	Single
Suggested Circuit Breaker Size	15 A
Voltage	115/230 Vac ±10%, selectable
Voltage Type	ac

Environmental specifications

Operating Temperature

-10 °C to +50 °C (+14 °F to +122 °F)

Packaging and weights

Height, packed	312.4 mm \| 12.299 in
Width, packed	502.9 mm \| 19.799 in
Depth, packed	541 mm \| 21.299 in
Included	3/8 in polyethylene tubing \| 90º elbow fitting \| Instruction sheet \| Male connector fitting \| Needle valve \| PTFE tape \| Power cord
Weight, gross	23 kg \| 50.706 lb
Weight, net	20 kg \| 44.092 lb

Regulatory compliance/certifications

Agency	Classification
CHINA-ROHS	Above maximum concentration value
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
ROHS	Compliant/Exempted
UK-ROHS	Compliant/Exempted
