S-4-UW-H-43-I6
- Available in:
- Asia
- Australia/New Zealand
- EMEA
- Latin America
- North America

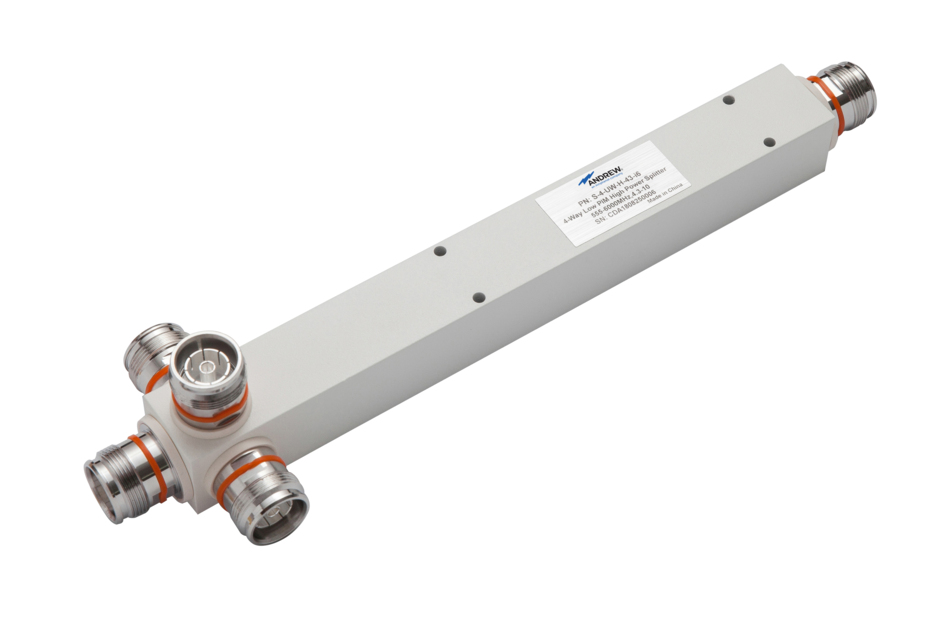

Ultra Wideband Four-way Low PIM Reactive High Power Splitter, 555–6000 MHz (Additional mounting bracket PN:42396A-17 sold separately)
Specifications
Product classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Product Type | Power splitter |
General specifications
| Device Type | Splitter |
| Application | Indoor/Outdoor |
| Color | White |
| Inner Contact Plating | Silver |
| Interface | 4.3-10 Female |
| Outer Contact Plating | Trimetal |
Dimensions
| Height | 45 mm | 1.772 in |
| Width | 66 mm | 2.598 in |
| Length | 254 mm | 10 in |
Electrical specifications
| 3rd Order IMD | -165 dBc |
| 3rd Order IMD Test Method | Two +43 dBm carriers |
| Insertion Loss at Frequency Band | 0.3 dB @ 555–2700 MHz | 0.55 dB @ 2700–3800 MHz | 0.75 dB @ 3800–4900 MHz | 1.4 dB @ 4900–6000 MHz |
| Average Power, maximum | 300 W |
| Impedance | 50 ohm |
| Operating Frequency Band | 555 – 6000 MHz |
| Peak Power, maximum | 3 kW |
| Power Rating, Splitting | 300 W |
| Reflected Power, maximum | 300 W |
| Split Loss | 6 dB |
| VSWR at Frequency Band | 1.25 @ 555–2700 MHz | 1.25:1 @ 2700–3800 MHz | 1.3:1 @ 3800–6000 MHz |
Mechanical specifications
| Coupling Nut Proof Torque | 7 N-m | 61.955 in lb |
Environmental specifications
| Operating Temperature | -35 °C to +85 °C (-31 °F to +185 °F) |
| Relative Humidity | Up to 100% |
| Corrosion Test Method | IEC 60068-2-11, 30 days |
| Ingress Protection Test Method | IEC 60529:2001, IP67 |
Packaging and weights
| Height, packed | 55 mm | 2.165 in |
| Width, packed | 77 mm | 3.031 in |
| Length, packed | 315 mm | 12.402 in |
| Weight, gross | 0.47 kg | 1.036 lb |
| Weight, net | 0.39 kg | 0.86 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| UK-ROHS | Compliant, Compliant/Exempted |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
