C-13-UW-N-AI6
- Available in:
- Asia
- Australia/New Zealand
- EMEA
- Latin America
- North America

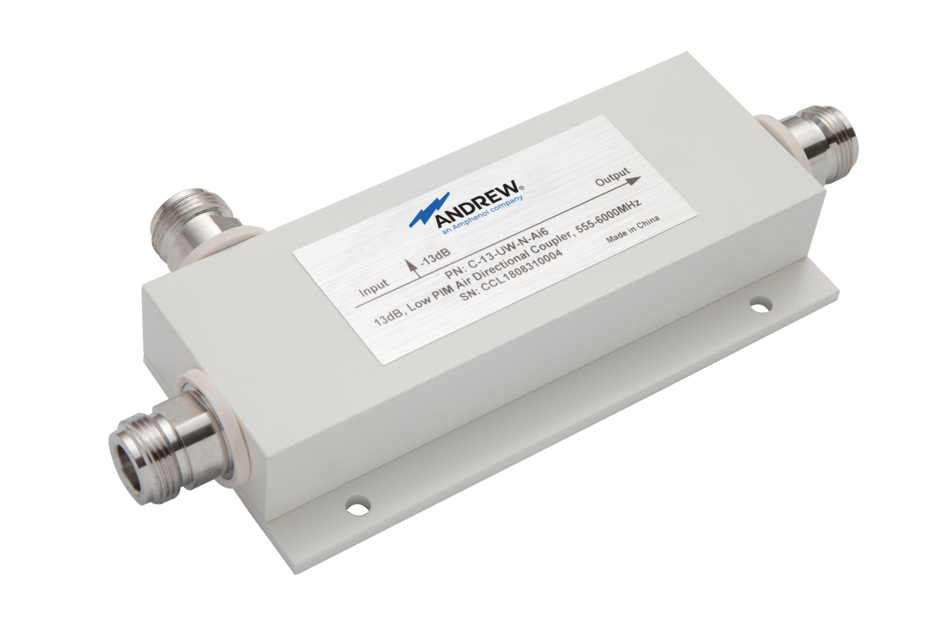

13 dB, Air Directional Coupler, 555–6000 MHz
Specifications
Product classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Product Type | Directional coupler |
General specifications
| Device Type | Coupler |
| Application | Indoor/Outdoor |
| Color | White |
| Inner Contact Plating | Silver |
| Interface | N Female |
| Outer Contact Plating | Trimetal |
Dimensions
| Height | 22 mm | 0.866 in |
| Width | 72 mm | 2.835 in |
| Length | 159 mm | 6.26 in |
Electrical specifications
| 3rd Order IMD | -163 dBc |
| 3rd Order IMD Test Method | Two +43 dBm carriers |
| Insertion Loss at Frequency Band | 0.5 dB @ 555–6000 MHz |
| Average Power, maximum | 200 W |
| Coupling | 13 dB |
| Coupling Tolerance | ±1.3dB |
| Impedance | 50 ohm |
| Isolation at Frequency Band | 26 dB @ 4900–6000 MHz | 29 dB @ 3800–4900 MHz | 31 dB @ 2700–3800 MHz | 33 dB @ 555–2700 MHz |
| Operating Frequency Band | 555 – 6000 MHz |
| Peak Power, maximum | 1 kW |
| Reflected Power, maximum | 200 W |
| VSWR at Frequency Band | 1.25:1 @ 2700–3800 MHz | 1.2:1 @ 555–2700 MHz | 1.3:1 @ 3800–6000 MHz |
Mechanical specifications
| Coupling Nut Proof Torque | 4.5 N-m | 39.828 in lb |
Environmental specifications
| Operating Temperature | -35 °C to +85 °C (-31 °F to +185 °F) |
| Relative Humidity | Up to 100% |
| Corrosion Test Method | IEC 60068-2-11, 30 days |
| Ingress Protection Test Method | IEC 60529:2001, IP67 |
Packaging and weights
| Height, packed | 45 mm | 1.772 in |
| Width, packed | 98 mm | 3.858 in |
| Length, packed | 180 mm | 7.087 in |
| Weight, gross | 0.44 kg | 0.97 lb |
| Weight, net | 0.38 kg | 0.838 lb |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
