CMAX-OUS-TUW-43I
Base product: OMNI-ANTENNAS

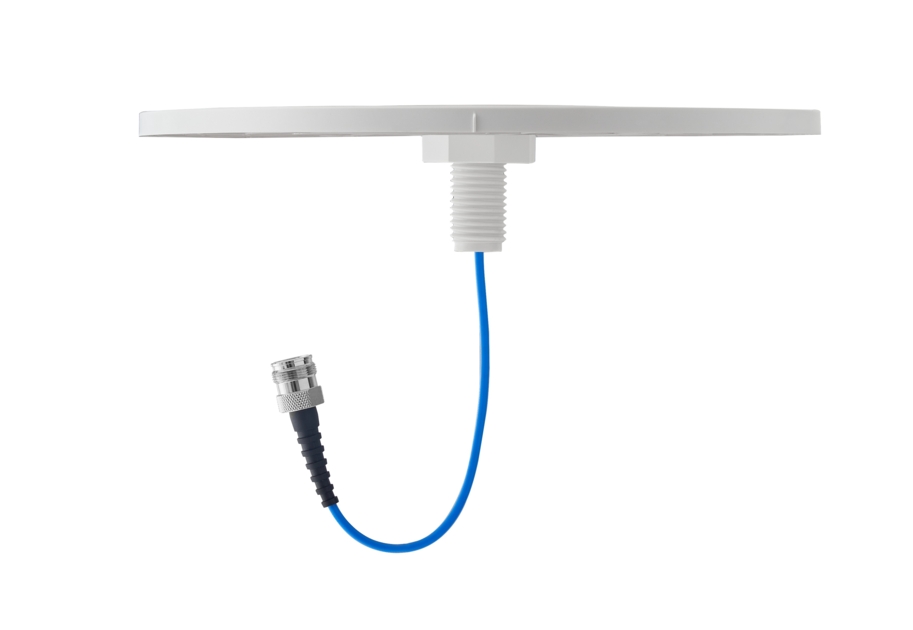

Cell-Max™ Omni In-building Antenna, 350–520 MHz, 617-960 MHz, 1350-1550 MHz, 1695-2700 MHz, 3300-4200 MHz and 4900-6000 MHz
Specifications
Product classification
| Product Type | In-building antenna |
| Product Brand | Cell-Max™ |
General specifications
| Application | Indoor |
| Antenna Type | Omni |
| Antenna Array Characteristic | SISO |
| Polarization | Linear Horizontal |
| Color | Signal white (RAL 9003) |
| Mounting | Thru-hole ceiling mount (optional) |
| Number of Ports | 1 |
| Pigtail Cable | 670-141SXE, plenum rated |
| Radome Material | ABS |
| RF Connector Interface | 4.3-10 Female |
Dimensions
| Height | 10 mm | 0.394 in |
| Pigtail Length | 250 mm | 9.843 in |
| Outer Diameter | 290 mm | 11.417 in |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 350 – 520 MHz | 617 – 960 MHz | 1350 – 1550 MHz | 1695 – 2700 MHz | 3300 – 4200 MHz | 4900 – 6000 MHz |
| Electrical Note | Values typical, unless otherwise stated |
Electrical specifications
| Frequency Band, MHz | 350–520 | 617–960 | 1350–1550 | 1695–2700 | 3300–4200 | 4900–6000 |
| Gain, dBi | 4.4 | 5.0 | 5.0 | 5.0 | 6.3 | 5.9 |
| Beamwidth, Horizontal, degrees | 360 | 360 | 360 | 360 | 360 | 360 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 | -153 | -153 | -153 | -153 |
| Input Power per Port, maximum, watts | 50 | 50 | 50 | 50 | 50 | 50 |
Return loss/vswr
| Frequency band | Vswr, maximum | Return loss, maximum (db) | Vswr, mean | Return loss, mean (db) |
| 350–520 MHz | 2.007 | 9.5 | 1.703 | 11.7 |
| 617–960 MHz | 2.007 | 9.5 | 1.703 | 11.7 |
| 1350–1550 MHz | 1.798 | 10.9 | 1.499 | 14 |
| 1695–2700 MHz | 1.798 | 10.9 | 1.499 | 14.0 |
| 3300–4200 MHz | 1.798 | 10.9 | 1.499 | 14.0 |
| 4900–6000 MHz | 1.798 | 10.9 | 1.499 | 14.0 |
Environmental specifications
| Operating Temperature | -40 °C to +60 °C (-40 °F to +140 °F) |
| Relative Humidity | Up to 100% |
Packaging and weights
| Height, packed | 310 mm | 12.205 in |
| Depth, packed | 85 mm | 3.346 in |
| Length, packed | 310 mm | 12.205 in |
| Packaging quantity | 1 |
| Weight, gross | 0.71 kg | 1.565 lb |
| Weight, net | 0.47 kg | 1.036 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Below maximum concentration value |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
Product classification
| Product Type | In-building antenna |
| Product Brand | Cell-Max™ |
General specifications
| Application | Indoor |
| Antenna Type | Omni |
| Antenna Array Characteristic | SISO |
| Polarization | Linear Horizontal |
| Color | Signal white (RAL 9003) |
| Mounting | Thru-hole ceiling mount (optional) |
| Number of Ports | 1 |
| Pigtail Cable | 670-141SXE, plenum rated |
| Radome Material | ABS |
| RF Connector Interface | 4.3-10 Female |
Dimensions
| Height | 10 mm | 0.394 in |
| Pigtail Length | 250 mm | 9.843 in |
| Outer Diameter | 290 mm | 11.417 in |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 350 – 520 MHz | 617 – 960 MHz | 1350 – 1550 MHz | 1695 – 2700 MHz | 3300 – 4200 MHz | 4900 – 6000 MHz |
| Electrical Note | Values typical, unless otherwise stated |
Electrical specifications
| Frequency Band, MHz | 350–520 | 617–960 | 1350–1550 | 1695–2700 | 3300–4200 | 4900–6000 |
| Gain, dBi | 4.4 | 5.0 | 5.0 | 5.0 | 6.3 | 5.9 |
| Beamwidth, Horizontal, degrees | 360 | 360 | 360 | 360 | 360 | 360 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 | -153 | -153 | -153 | -153 |
| Input Power per Port, maximum, watts | 50 | 50 | 50 | 50 | 50 | 50 |
Return loss/vswr
| Frequency Band | VSWR, Maximum | Return Loss, Maximum (dB) | VSWR, Mean | Return Loss, Mean (dB) |
| 350–520 MHz | 2.007 | 9.5 | 1.703 | 11.7 |
| 617–960 MHz | 2.007 | 9.5 | 1.703 | 11.7 |
| 1350–1550 MHz | 1.798 | 10.9 | 1.499 | 14 |
| 1695–2700 MHz | 1.798 | 10.9 | 1.499 | 14.0 |
| 3300–4200 MHz | 1.798 | 10.9 | 1.499 | 14.0 |
| 4900–6000 MHz | 1.798 | 10.9 | 1.499 | 14.0 |
Environmental specifications
| Operating Temperature | -40 °C to +60 °C (-40 °F to +140 °F) |
| Relative Humidity | Up to 100% |
Packaging and weights
| Height, packed | 310 mm | 12.205 in |
| Depth, packed | 85 mm | 3.346 in |
| Length, packed | 310 mm | 12.205 in |
| Packaging quantity | 1 |
| Weight, gross | 0.71 kg | 1.565 lb |
| Weight, net | 0.47 kg | 1.036 lb |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Below maximum concentration value |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
