CMAX-DMF2-43-WI53
Base product: DIRECTIONAL-ANTENNAS

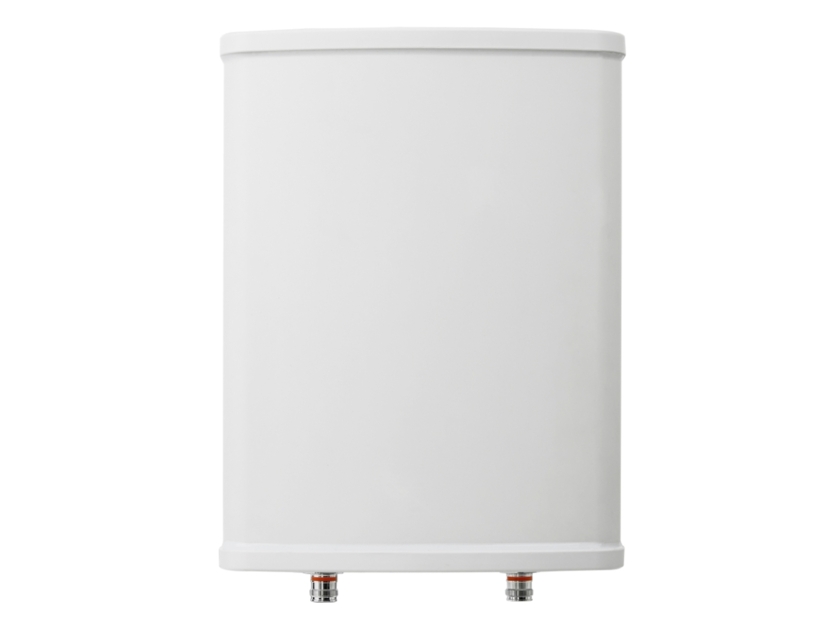

Low PIM Directional MIMO Antenna 4G/5G/C-Band, 698–960 MHz, 1695–2700 MHz and 3300-4200MHz
Specifications
Product classification
| Product Type | Indoor/outdoor antenna |
General specifications
| Application | Indoor/Outdoor |
| Antenna Type | Directional |
| Antenna Array Characteristic | MIMO 2x2 |
| Polarization | ±45° |
| Color | Light Gray (RAL 7035) |
| Number of Ports | 2 |
| Radome Material | PVC, UV resistant |
| RF Connector Interface | 4.3-10 Female |
Dimensions
| Width | 287 mm | 11.299 in |
| Depth | 132 mm | 5.197 in |
| Length | 380 mm | 14.961 in |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 698 – 960 MHz | 1695 – 2700 MHz | 3300 – 4200 MHz |
| Electrical Note | Values typical, unless otherwise stated |
Electrical specifications
| Frequency Band, MHz | 698–960 | 1695–2200 | 2200–2700 | 3300–4200 |
| Gain, dBi | 7.9 | 8.8 | 8.9 | 8.5 |
| Beamwidth, Horizontal, degrees | 77 | 67 | 57 | 54 |
| Beamwidth, Vertical, degrees | 60 | 53 | 59 | 54 |
| Front-to-Back Ratio, Copolarization 180° ± 30°, dB | 12 | 17 | 20 | 16 |
| Isolation, Cross Polarization, dB | 20 | 25 | 25 | 25 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 | -153 | -153 |
| Input Power per Port, maximum, watts | 100 | 100 | 100 | 100 |
Return loss/vswr
| Frequency band | Vswr, maximum | Return loss, maximum (db) | Vswr, mean | Return loss, mean (db) |
| 698–960 MHz | 1.703 | 11.7 | 1.499 | 14 |
| 1695–2200 MHz | 1.703 | 11.7 | 1.499 | 14 |
| 2200–2700 MHz | 1.703 | 11.7 | 1.499 | 14 |
| 3300–4200 MHz | 1.725 | 11.5 | 1.499 | 14 |
Mechanical specifications
| Wind Loading @ Velocity, maximum | 345.0 N @ 241 km/h (77.6 lbf @ 150 mph) |
Environmental specifications
| Operating Temperature | -40 °C to +60 °C (-40 °F to +140 °F) |
| Relative Humidity | Up to 100% |
| Ingress Protection Test Method | IEC 60529:2001, IP65 |
Packaging and weights
| Width, packed | 340 mm | 13.386 in |
| Depth, packed | 210 mm | 8.268 in |
| Length, packed | 590 mm | 23.228 in |

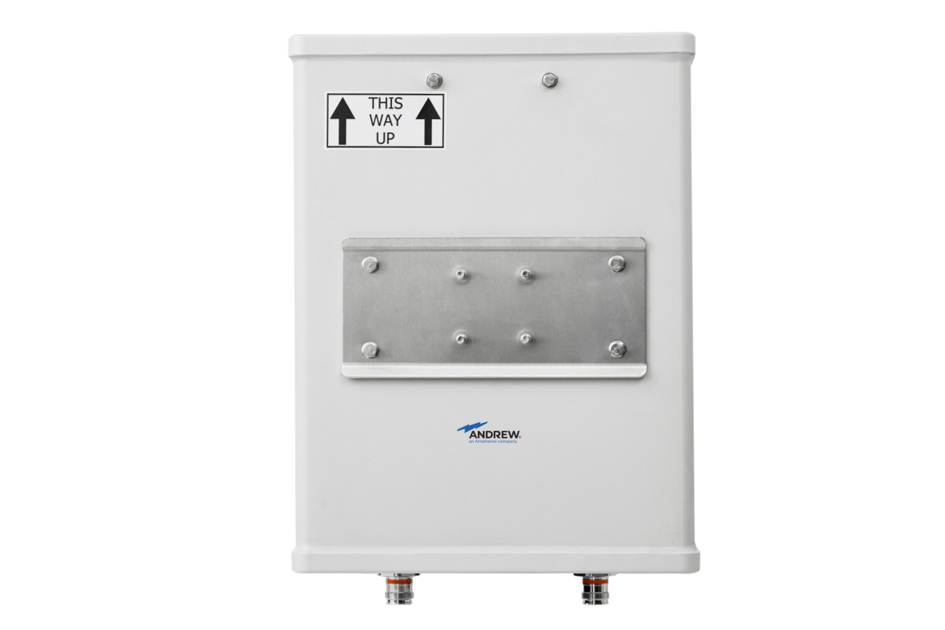

| Included | Mounting bracket |
| Weight, gross | 3.5 kg | 7.716 lb |
| Weight, net | 2.5 kg | 5.512 lb |
Product classification
| Product Type | Indoor/outdoor antenna |
General specifications
| Application | Indoor/Outdoor |
| Antenna Type | Directional |
| Antenna Array Characteristic | MIMO 2x2 |
| Polarization | ±45° |
| Color | Light Gray (RAL 7035) |
| Number of Ports | 2 |
| Radome Material | PVC, UV resistant |
| RF Connector Interface | 4.3-10 Female |
Dimensions
| Width | 287 mm | 11.299 in |
| Depth | 132 mm | 5.197 in |
| Length | 380 mm | 14.961 in |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 698 – 960 MHz | 1695 – 2700 MHz | 3300 – 4200 MHz |
| Electrical Note | Values typical, unless otherwise stated |
Electrical specifications
| Frequency Band, MHz | 698–960 | 1695–2200 | 2200–2700 | 3300–4200 |
| Gain, dBi | 7.9 | 8.8 | 8.9 | 8.5 |
| Beamwidth, Horizontal, degrees | 77 | 67 | 57 | 54 |
| Beamwidth, Vertical, degrees | 60 | 53 | 59 | 54 |
| Front-to-Back Ratio, Copolarization 180° ± 30°, dB | 12 | 17 | 20 | 16 |
| Isolation, Cross Polarization, dB | 20 | 25 | 25 | 25 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 | -153 | -153 |
| Input Power per Port, maximum, watts | 100 | 100 | 100 | 100 |
Return loss/vswr
| Frequency Band | VSWR, Maximum | Return Loss, Maximum (dB) | VSWR, Mean | Return Loss, Mean (dB) |
| 698–960 MHz | 1.703 | 11.7 | 1.499 | 14 |
| 1695–2200 MHz | 1.703 | 11.7 | 1.499 | 14 |
| 2200–2700 MHz | 1.703 | 11.7 | 1.499 | 14 |
| 3300–4200 MHz | 1.725 | 11.5 | 1.499 | 14 |
Mechanical specifications
| Wind Loading @ Velocity, maximum | 345.0 N @ 241 km/h (77.6 lbf @ 150 mph) |
Environmental specifications
| Operating Temperature | -40 °C to +60 °C (-40 °F to +140 °F) |
| Relative Humidity | Up to 100% |
| Ingress Protection Test Method | IEC 60529:2001, IP65 |
Packaging and weights
| Width, packed | 340 mm | 13.386 in |
| Depth, packed | 210 mm | 8.268 in |
| Length, packed | 590 mm | 23.228 in |
| Included | Mounting bracket |
| Weight, gross | 3.5 kg | 7.716 lb |
| Weight, net | 2.5 kg | 5.512 lb |
