CMAX-D-TCPUSEI53
Base product: DIRECTIONAL-ANTENNAS

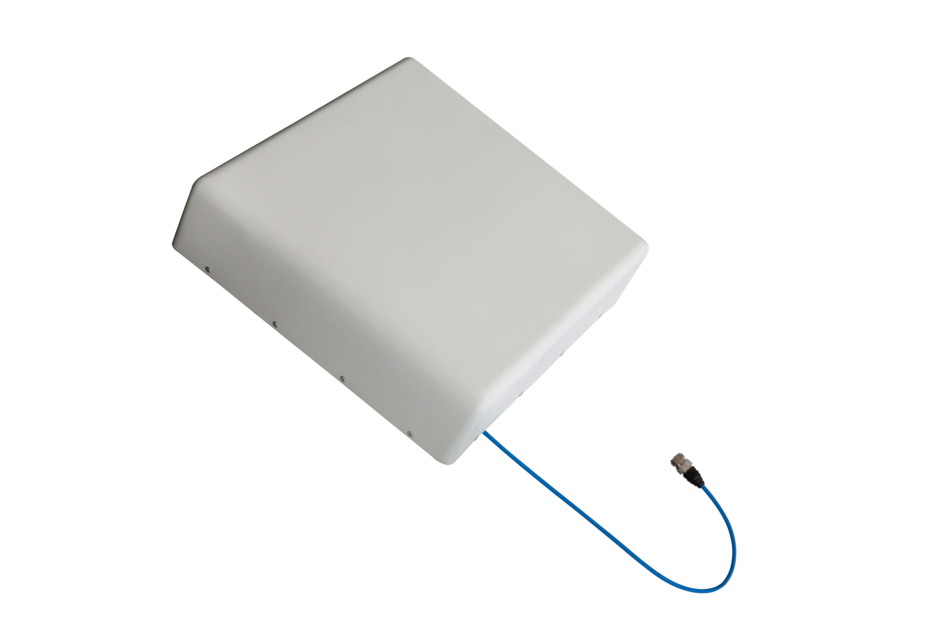

Low PIM Directional In-building Antenna, 350-470 MHz, 617–960 MHz, 1710–2700 MHz
Specifications
Product classification
| Product Type | In-building antenna |
General specifications
| Application | Indoor |
| Antenna Type | Directional |
| Antenna Array Characteristic | SISO |
| Polarization | Vertical |
| Color | White (RAL 9016) |
| Mounting | Poles between 30–55 mm with supplied clamps |
| Number of Ports | 1 |
| Pigtail Cable | 670-141SXE, plenum rated |
| Radome Material | Fiberglass, UV resistant |
| RF Connector Interface | N Female |
Dimensions
| Width | 330 mm | 12.992 in |
| Depth | 90 mm | 3.543 in |
| Length | 330 mm | 12.992 in |
| Pigtail Length | 500 mm | 19.685 in |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 350 – 470 MHz | 617 – 806 MHz | 806 – 960 MHz | 1710 – 2700 MHz |
| Electrical Note | Values typical, unless otherwise stated |
Electrical specifications
| Frequency Band, MHz | 350–470 | 617–698 | 698–960 | 1710–2700 |
| Gain, dBi | 5.2 | 7.0 | 7.0 | 9.0 |
| Beamwidth, Horizontal, degrees | 98 | 70 | 72 | 45 |
| Beamwidth, Vertical, degrees | 62 | 54 | 45 | 53 |
| VSWR | Return loss, dB | 1.8 | 10.9 | 1.8 | 10.9 | 1.8 | 10.9 | 1.8 | 10.9 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 | -153 | -153 |
| Input Power per Port, maximum, watts | 100 | 100 | 100 | 100 |
Environmental specifications
| Operating Temperature | -40 °C to +60 °C (-40 °F to +140 °F) |
| Relative Humidity | Up to 100% |
Packaging and weights
| Width, packed | 370 mm | 14.567 in |
| Depth, packed | 170 mm | 6.693 in |
| Length, packed | 470 mm | 18.504 in |
| Packaging quantity | 1 |
| Weight, gross | 3 kg | 6.614 lb |
| Weight, net | 1.9 kg | 4.189 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
Product classification
| Product Type | In-building antenna |
General specifications
| Application | Indoor |
| Antenna Type | Directional |
| Antenna Array Characteristic | SISO |
| Polarization | Vertical |
| Color | White (RAL 9016) |
| Mounting | Poles between 30–55 mm with supplied clamps |
| Number of Ports | 1 |
| Pigtail Cable | 670-141SXE, plenum rated |
| Radome Material | Fiberglass, UV resistant |
| RF Connector Interface | N Female |
Dimensions
| Width | 330 mm | 12.992 in |
| Depth | 90 mm | 3.543 in |
| Length | 330 mm | 12.992 in |
| Pigtail Length | 500 mm | 19.685 in |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 350 – 470 MHz | 617 – 806 MHz | 806 – 960 MHz | 1710 – 2700 MHz |
| Electrical Note | Values typical, unless otherwise stated |
Electrical specifications
| Frequency Band, MHz | 350–470 | 617–698 | 698–960 | 1710–2700 |
| Gain, dBi | 5.2 | 7.0 | 7.0 | 9.0 |
| Beamwidth, Horizontal, degrees | 98 | 70 | 72 | 45 |
| Beamwidth, Vertical, degrees | 62 | 54 | 45 | 53 |
| VSWR | Return loss, dB | 1.8 | 10.9 | 1.8 | 10.9 | 1.8 | 10.9 | 1.8 | 10.9 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 | -153 | -153 |
| Input Power per Port, maximum, watts | 100 | 100 | 100 | 100 |
Environmental specifications
| Operating Temperature | -40 °C to +60 °C (-40 °F to +140 °F) |
| Relative Humidity | Up to 100% |
Packaging and weights
| Width, packed | 370 mm | 14.567 in |
| Depth, packed | 170 mm | 6.693 in |
| Length, packed | 470 mm | 18.504 in |
| Packaging quantity | 1 |
| Weight, gross | 3 kg | 6.614 lb |
| Weight, net | 1.9 kg | 4.189 lb |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
