DF-CAPKIT
Base product: SURGE-ARRESTOR-ACCESSORIES
7-16 DIN Female End Cap Assembly
Specifications
Product classification
| Product Type | Surge arrestor accessory |
| Product Brand | HELIAX® |
| Ordering Note | ANDREW® non-standard product |
General specifications
| Interface | 7-16 DIN Female |
Dimensions
| Height | 35.92 mm | 1.414 in |
| Width | 35.92 mm | 1.414 in |
| Length | 16.88 mm | 0.665 in |

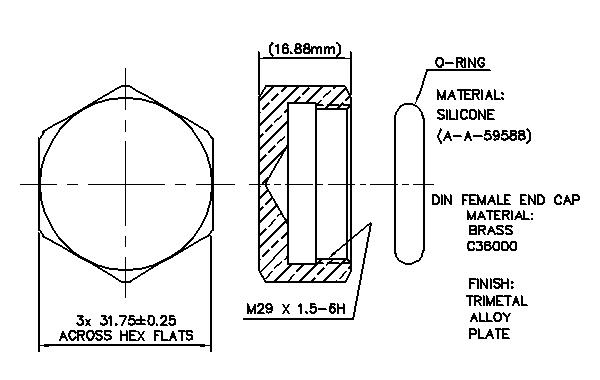

Outline drawing
| Click on image to enlarge. |
Material specifications
| Finish | Trimetal |
| Material Type | Brass |
Mechanical specifications
| Coupling Nut Proof Torque | 4 N-m | 35.403 in lb |
| Interface Durability | 50 cycles |
| Mechanical Shock Test Method | IEC 60068-2-27 |
Environmental specifications
| Operating Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
| Storage Temperature | -65 °C to +125 °C (-85 °F to +257 °F) |
| Corrosion Test Method | IEC 60068-2-11 |
| Immersion Depth | 1 m |
| Immersion Test Mating | Mated |
| Immersion Test Method | IEC 60529:2001, IP68 |
| Moisture Resistance Test Method | IEC 60068-2-3 |
| Thermal Shock Test Method | IEC 60068-2-14 |
| Vibration Test Method | IEC 60068-2-6 |
Packaging and weights
| Packaging quantity | 1 |
| Weight, net | 63.5 g | 0.14 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
Product classification
| Product Type | Surge arrestor accessory |
| Product Brand | HELIAX® |
| Ordering Note | ANDREW® non-standard product |
General specifications
| Interface | 7-16 DIN Female |
Dimensions
| Height | 35.92 mm | 1.414 in |
| Width | 35.92 mm | 1.414 in |
| Length | 16.88 mm | 0.665 in |
Material specifications
| Finish | Trimetal |
| Material Type | Brass |
Mechanical specifications
| Coupling Nut Proof Torque | 4 N-m | 35.403 in lb |
| Interface Durability | 50 cycles |
| Mechanical Shock Test Method | IEC 60068-2-27 |
Environmental specifications
| Operating Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
| Storage Temperature | -65 °C to +125 °C (-85 °F to +257 °F) |
| Corrosion Test Method | IEC 60068-2-11 |
| Immersion Depth | 1 m |
| Immersion Test Mating | Mated |
| Immersion Test Method | IEC 60529:2001, IP68 |
| Moisture Resistance Test Method | IEC 60068-2-3 |
| Thermal Shock Test Method | IEC 60068-2-14 |
| Vibration Test Method | IEC 60068-2-6 |
Packaging and weights
| Packaging quantity | 1 |
| Weight, net | 63.5 g | 0.14 lb |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
