APG-F4-NM-350
Base product: SURGE-ARRESTORS

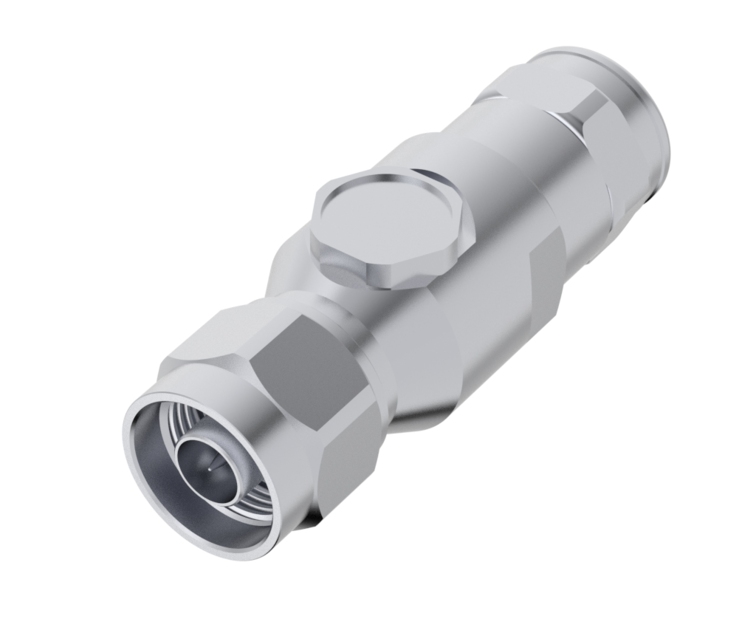

Arrestor Gas Tube Surge Arrestor (350 V), 2400–2500 MHz, with interface types N male for 1/2" Superflexible Foam Coaxial Cable
Specifications
Product classification
| Product Type | Surge arrestor |
| Ordering Note | ANDREW® non-standard product |
General specifications
| Device Type | dc Pass |
| Body Style | Straight |
| Inner Contact Attachment Method | Captivated |
| Inner Contact Plating | Gold |
| Interface | N Male |
| Outer Contact Attachment Method | Clamp |
| Outer Contact Plating | Trimetal |
| Pressurizable | No |
Dimensions
| Height | 23.7 mm | 0.933 in |
| Length | 66.7 mm | 2.626 in |

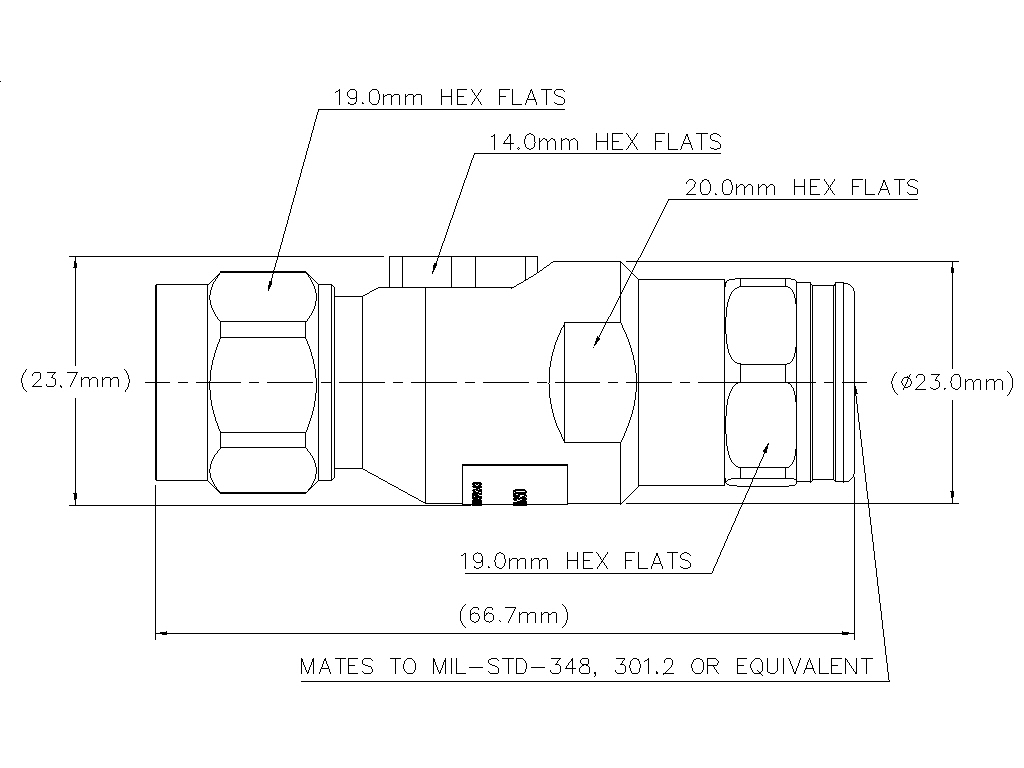

Outline drawing
| Click on image to enlarge. |
Electrical specifications
| Insertion Loss, typical | 0.2 dB |
| Average Power | 40 W |
| Connector Impedance | 50 ohm |
| Gas Tube Voltage | 350 V |
| Lightning Surge Current | 5 kA |
| Lightning Surge Current Waveform | 8/20 waveform |
| Operating Frequency Band | 2400 – 2500 MHz |
Return loss/vswr
| Frequency band | Vswr | Return loss (db) |
| 2400–2500 MHz | 1.296 | 17.80 |
Mechanical specifications
| Attachment Durability | 25 cycles |
| Interface Durability | 500 cycles |
| Interface Durability Method | IEC 61169-16:9.5 |
| Mechanical Shock Test Method | MIL-STD-202F, Method 213B, Test Condition C |
Environmental specifications
| Operating Temperature | -40 °C to +100 °C (-40 °F to +212 °F) |
| Storage Temperature | -40 °C to +100 °C (-40 °F to +212 °F) |
| Attenuation, Ambient Temperature | 20 °C | 68 °F |
| Average Power, Ambient Temperature | 40 °C | 104 °F |
| Corrosion Test Method | MIL-STD-202, Method 101, Test Condition B |
| Immersion Depth | 1 m |
| Immersion Test Mating | Mated |
| Immersion Test Method | IEC 60529:2001, IP68 |
| Moisture Resistance Test Method | MIL-STD-202, Method 106 |
| Thermal Shock Test Method | MIL-STD-202, Method 107, Test Condition A-1, Low Temperature -55 °C |
| Vibration Test Method | GR 2846-CORE |
| Water Jetting Test Mating | Mated |
| Water Jetting Test Method | IEC 60529:2001, IP66 |
Packaging and weights
| Weight, net | 0.097 kg | 0.214 lb |
Product classification
| Product Type | Surge arrestor |
| Ordering Note | ANDREW® non-standard product |
General specifications
| Device Type | dc Pass |
| Body Style | Straight |
| Inner Contact Attachment Method | Captivated |
| Inner Contact Plating | Gold |
| Interface | N Male |
| Outer Contact Attachment Method | Clamp |
| Outer Contact Plating | Trimetal |
| Pressurizable | No |
Dimensions
| Height | 23.7 mm | 0.933 in |
| Length | 66.7 mm | 2.626 in |
Electrical specifications
| Insertion Loss, typical | 0.2 dB |
| Average Power | 40 W |
| Connector Impedance | 50 ohm |
| Gas Tube Voltage | 350 V |
| Lightning Surge Current | 5 kA |
| Lightning Surge Current Waveform | 8/20 waveform |
| Operating Frequency Band | 2400 – 2500 MHz |
Return loss/vswr
| Frequency Band | VSWR | Return Loss (dB) |
| 2400–2500 MHz | 1.296 | 17.80 |
Mechanical specifications
| Attachment Durability | 25 cycles |
| Interface Durability | 500 cycles |
| Interface Durability Method | IEC 61169-16:9.5 |
| Mechanical Shock Test Method | MIL-STD-202F, Method 213B, Test Condition C |
Environmental specifications
| Operating Temperature | -40 °C to +100 °C (-40 °F to +212 °F) |
| Storage Temperature | -40 °C to +100 °C (-40 °F to +212 °F) |
| Attenuation, Ambient Temperature | 20 °C | 68 °F |
| Average Power, Ambient Temperature | 40 °C | 104 °F |
| Corrosion Test Method | MIL-STD-202, Method 101, Test Condition B |
| Immersion Depth | 1 m |
| Immersion Test Mating | Mated |
| Immersion Test Method | IEC 60529:2001, IP68 |
| Moisture Resistance Test Method | MIL-STD-202, Method 106 |
| Thermal Shock Test Method | MIL-STD-202, Method 107, Test Condition A-1, Low Temperature -55 °C |
| Vibration Test Method | GR 2846-CORE |
| Water Jetting Test Mating | Mated |
| Water Jetting Test Method | IEC 60529:2001, IP66 |
Packaging and weights
| Weight, net | 0.097 kg | 0.214 lb |
