MLOC5-LS2XMHMQ-5M

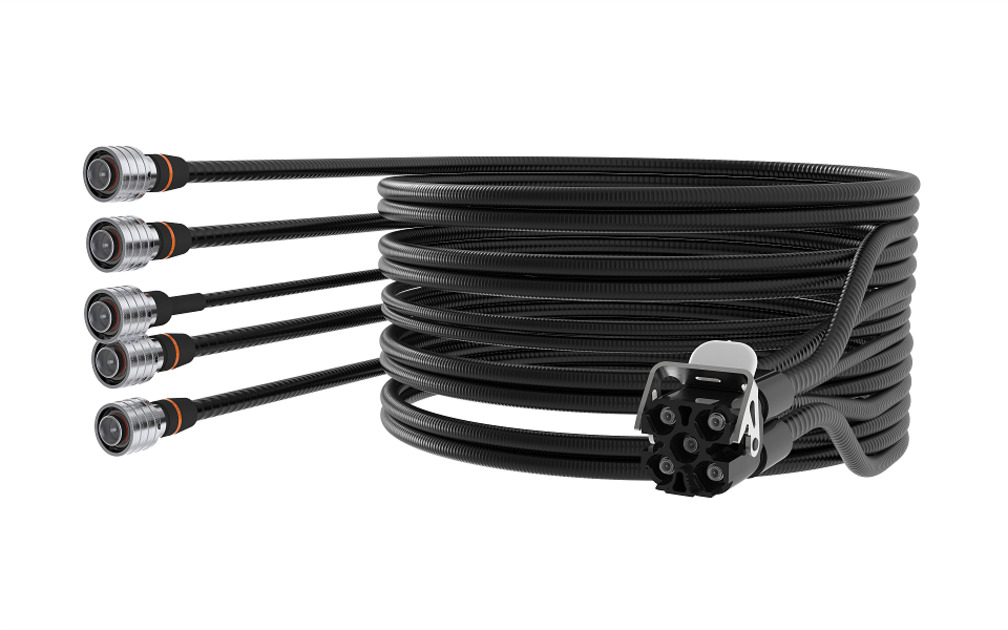

HELIAX® M-LOC Multiport cluster 5 ports SureFlex® cable assembly with interface type M-LOC latching male to 4.3-10 male push pull,size 3/8", length 5 meters
Features and benefits
- WARNING: DO NOT MATE WITH 4.1-9.5 DIN
Specifications
Product classification
| Product Type | HELIAX® MLOC cluster, SureFlex® Premium, static PIM |
| Product Brand | HELIAX® | SureFlex® |
| Product Series | MLOC |
General specifications
| Attachment, Connector A | Factory attached |
| Attachment, Connector B | Factory attached |
| Body Style, Connector A | Straight |
| Body Style, Connector B | Push-pull |
| Interface, Connector A | M-LOC Male |
| Interface, Connector B | 4.3-10 Male |
| Specification Sheet Revision Level | A |
Dimensions
| Length | 5 m | 16.404 ft |
| Cable Length Unit | Meters |
| Nominal Size | 3/8 in |

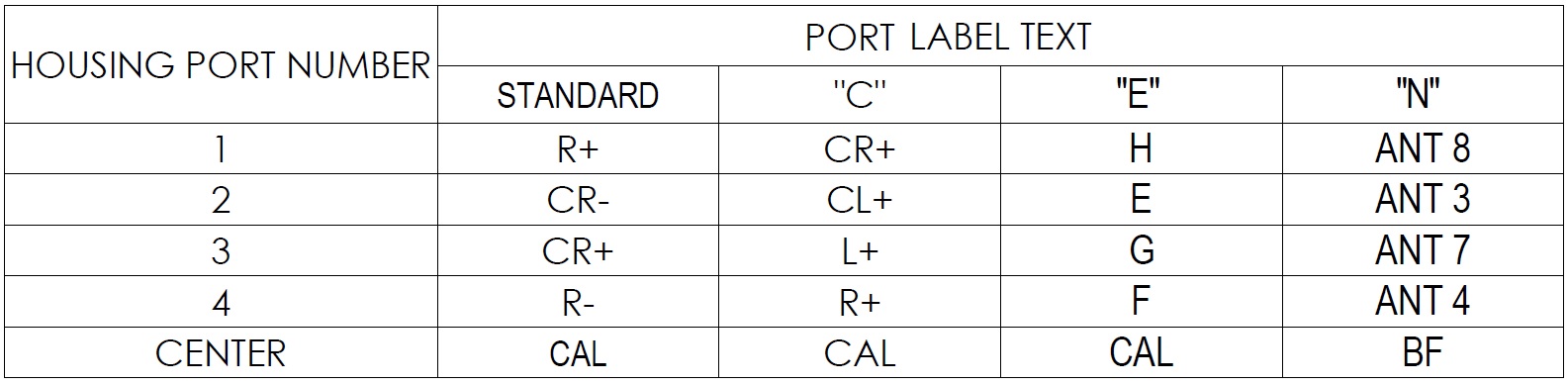

Port configuration
| Click on image to enlarge. |
Electrical specifications
| 3rd Order IMD Static | -119 dBm |
| 3rd Order IMD Static Test Method | Two +43 dBm carriers |
Return loss/vswr
| Frequency band | Gated vswr | Gated return loss (db) | Insertion loss, typical (db) |
| 1000–3000 MHz | 1.074 | 29.00 | 1.19 |
| 3100–4200 MHz | 1.074 | 29.00 | 1.44 |
| 4200–5000 MHz | 1.083 | 28.00 | 1.59 |
Mechanical specifications
| Minimum Bend Radius, multiple Bends | 25.4 mm | 1.000 in |
| Minimum Bend Radius, Single Bend | 25.4 mm | 1.000 in |
Environmental specifications
| Installation temperature | -40 °C to +60 °C (-40 °F to +140 °F) |
| Operating Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
| Storage Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
| Immersion Test Method | Meets IEC 60529:2001, IP68 in mated condition |
Product classification
| Product Type | HELIAX® MLOC cluster, SureFlex® Premium, static PIM |
| Product Brand | HELIAX® | SureFlex® |
| Product Series | MLOC |
General specifications
| Attachment, Connector A | Factory attached |
| Attachment, Connector B | Factory attached |
| Body Style, Connector A | Straight |
| Body Style, Connector B | Push-pull |
| Interface, Connector A | M-LOC Male |
| Interface, Connector B | 4.3-10 Male |
| Specification Sheet Revision Level | A |
Dimensions
| Length | 5 m | 16.404 ft |
| Cable Length Unit | Meters |
| Nominal Size | 3/8 in |
Electrical specifications
| 3rd Order IMD Static | -119 dBm |
| 3rd Order IMD Static Test Method | Two +43 dBm carriers |
Return loss/vswr
| Frequency Band | Gated VSWR | Gated Return Loss (dB) | Insertion Loss, typical (dB) |
| 1000–3000 MHz | 1.074 | 29.00 | 1.19 |
| 3100–4200 MHz | 1.074 | 29.00 | 1.44 |
| 4200–5000 MHz | 1.083 | 28.00 | 1.59 |
Mechanical specifications
| Minimum Bend Radius, multiple Bends | 25.4 mm | 1.000 in |
| Minimum Bend Radius, Single Bend | 25.4 mm | 1.000 in |
Environmental specifications
| Installation temperature | -40 °C to +60 °C (-40 °F to +140 °F) |
| Operating Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
| Storage Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
| Immersion Test Method | Meets IEC 60529:2001, IP68 in mated condition |
| Click on image to enlarge. |
