MLOC5-LS2BNHMW-8M

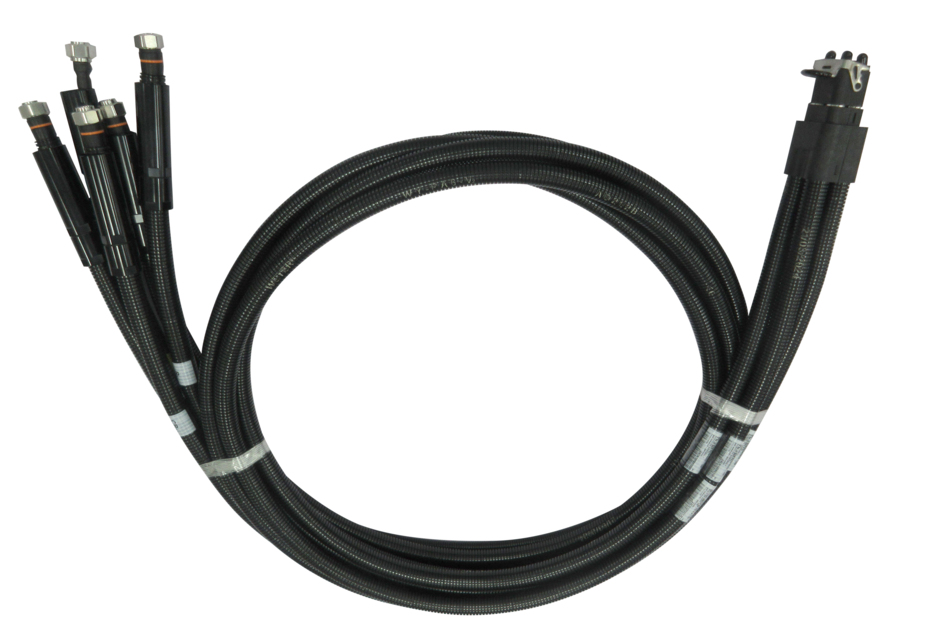

HELIAX® M-LOC Multiport cluster 5 ports SureFlex® cable assembly with interface type M-LOC latching male to 4.3-10 male,size 3/8", length 8 meters, covered by conduit shield
Features and benefits
- WARNING: DO NOT MATE WITH 4.1-9.5 DIN
Specifications
Product classification
| Product Type | HELIAX® MLOC cluster, SureFlex® D-CLASS, dynamic PIM |
| Product Brand | HELIAX® | SureFlex® |
| Product Series | MLOC |
General specifications
| Attachment, Connector A | Factory attached |
| Attachment, Connector B | Factory attached |
| Body Style, Connector A | Straight |
| Body Style, Connector B | Straight |
| Interface, Connector A | M-LOC Male |
| Interface, Connector B | 4.3-10 Male |
| Specification Sheet Revision Level | B |
Dimensions
| Length | 8 m | 26.247 ft |
| Cable Length Unit | Meters |
| Nominal Size | 3/8 in |
Port configuration
| Click on image to enlarge. |
Electrical specifications
| 3rd Order IMD Dynamic | -119 dBm |
| 3rd Order IMD Dynamic Test Method | Two +43 dBm carriers per IEC 62037 |
Return loss/vswr
| Frequency band | Gated vswr | Gated return loss (db) |
| 1000–3000 MHz | 1.074 | 29.00 |
| 3100–4200 MHz | 1.074 | 29.00 |
| 4200–5000 MHz | 1.083 | 28.00 |
Mechanical specifications
| Minimum Bend Radius, multiple Bends | 100 mm | 3.937 in |
| Minimum Bend Radius, Single Bend | 50 mm | 1.969 in |
Environmental specifications
| Installation temperature | -40 °C to +60 °C (-40 °F to +140 °F) |
| Operating Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
| Storage Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
| Weatherproofing Method | Weatherproofing tube |
Product classification
| Product Type | HELIAX® MLOC cluster, SureFlex® D-CLASS, dynamic PIM |
| Product Brand | HELIAX® | SureFlex® |
| Product Series | MLOC |
General specifications
| Attachment, Connector A | Factory attached |
| Attachment, Connector B | Factory attached |
| Body Style, Connector A | Straight |
| Body Style, Connector B | Straight |
| Interface, Connector A | M-LOC Male |
| Interface, Connector B | 4.3-10 Male |
| Specification Sheet Revision Level | B |
Dimensions
| Length | 8 m | 26.247 ft |
| Cable Length Unit | Meters |
| Nominal Size | 3/8 in |
Electrical specifications
| 3rd Order IMD Dynamic | -119 dBm |
| 3rd Order IMD Dynamic Test Method | Two +43 dBm carriers per IEC 62037 |
Return loss/vswr
| Frequency Band | Gated VSWR | Gated Return Loss (dB) |
| 1000–3000 MHz | 1.074 | 29.00 |
| 3100–4200 MHz | 1.074 | 29.00 |
| 4200–5000 MHz | 1.083 | 28.00 |
Mechanical specifications
| Minimum Bend Radius, multiple Bends | 100 mm | 3.937 in |
| Minimum Bend Radius, Single Bend | 50 mm | 1.969 in |
Environmental specifications
| Installation temperature | -40 °C to +60 °C (-40 °F to +140 °F) |
| Operating Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
| Storage Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
| Weatherproofing Method | Weatherproofing tube |
