MLOC-A-F1XMHMW-M45

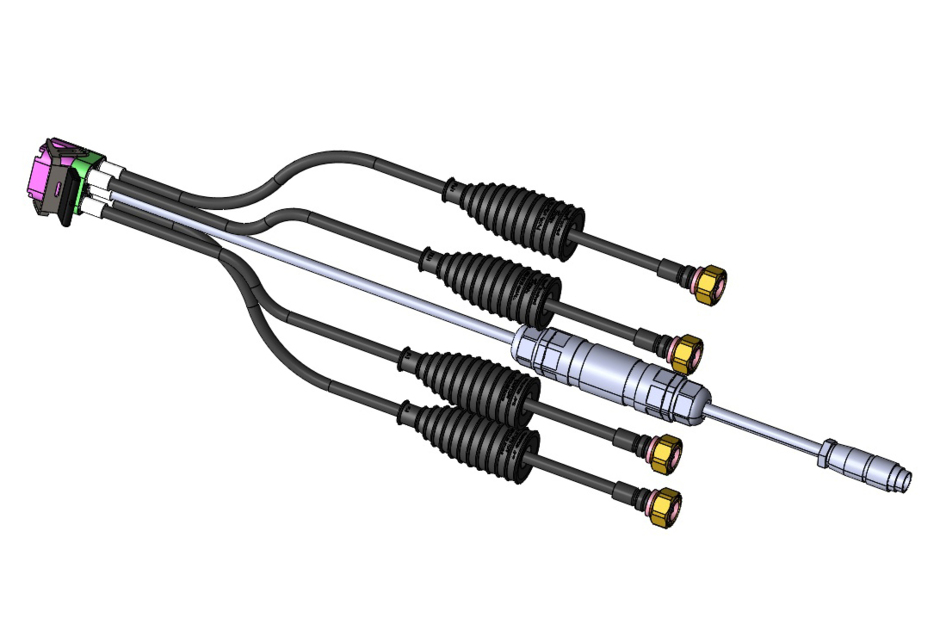

HELIAX® M-LOC Multiport cluster 5 ports SureFlex® cable assembly with interface type M-LOC latching male to 4.3-10 male with HELIAX® SureGuard weatherproofing, with AISG converter in the center port, size 1/4", length 0.45 meters

Finish making your selections or clear them to view relevant specifications.

Download specifications

Find a partner

Specifications

Product classification

Product Type	HELIAX® MLOC cluster, SureFlex® D-CLASS, dynamic PIM
Product Brand	HELIAX® \| SureFlex®
Product Series	MLOC

General specifications

Attachment, Connector A	Factory attached
Attachment, Connector B	Factory attached
Body Style, Connector A	Straight
Body Style, Connector B	Straight
Interface, Connector A	M-LOC Male
Interface, Connector B	4.3-10 Male
Specification Sheet Revision Level	A

Dimensions

Length	0.45 m \| 1.476 ft
Cable Length Unit	Meters
Nominal Size	1/4 in

Port configuration

Click on image to enlarge.

Electrical specifications

3rd Order IMD Dynamic	-119 dBm
3rd Order IMD Dynamic Test Method	Two +43 dBm carriers per IEC 62037

Return loss/vswr

Frequency band	Vswr	Return loss (db)	Gated vswr	Gated return loss (db)	Insertion loss, typical (db)
1000–3000 MHz	1.135	23.98	1.070	30.00	0.34
3000–4200 MHz	1.222	20.01	1.110	26.00	0.40
4200–5000 MHz	1.250	19.08	1.120	25.00	0.44

Mechanical specifications

Minimum Bend Radius, multiple Bends	25.4 mm \| 1.000 in
Minimum Bend Radius, Single Bend	25.4 mm \| 1.000 in

Environmental specifications

Installation temperature	-40 °C to +60 °C (-40 °F to +140 °F)
Operating Temperature	-55 °C to +85 °C (-67 °F to +185 °F)
Storage Temperature	-55 °C to +85 °C (-67 °F to +185 °F)
Immersion Test Method	Meets IEC 60529:2001, IP68 in mated condition
Weatherproofing Method	HELIAX® SureGuard weatherproofing boot
