C141-PDFSF-1

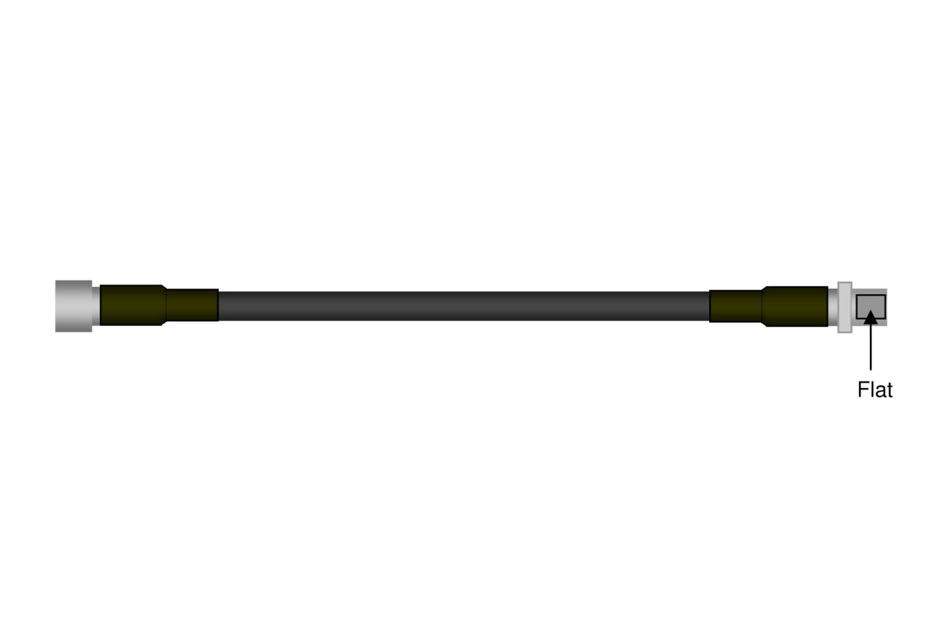

CF141-50 Jumper with interface types 7-16 DIN Female Panel Mount and SMA Female, 0.3 m
Specifications
Product classification
| Product Type | Braided cable assembly |
| Product Series | CF141-50 |
General specifications
| Body Style, Connector A | Panel mount |
| Body Style, Connector B | Straight |
| Cable Family | CF141-50 |
| Interface, Connector A | 7-16 DIN Female |
| Interface, Connector B | SMA Female |
| Specification Sheet Revision Level | A |
Dimensions
| Length | 0.3 m | 0.984 ft |
| Nominal Size | 0.141 in |
Electrical specifications
| DTF, Connector A | -28 dB |
| DTF, Connector B | -28 dB |
Jumper assembly sample label
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
Product classification
| Product Type | Braided cable assembly |
| Product Series | CF141-50 |
General specifications
| Body Style, Connector A | Panel mount |
| Body Style, Connector B | Straight |
| Cable Family | CF141-50 |
| Interface, Connector A | 7-16 DIN Female |
| Interface, Connector B | SMA Female |
| Specification Sheet Revision Level | A |
Dimensions
| Length | 0.3 m | 0.984 ft |
| Nominal Size | 0.141 in |
Electrical specifications
| DTF, Connector A | -28 dB |
| DTF, Connector B | -28 dB |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
