TA-HFHM
4.3-10 Female to 4.3-10 Male Low-PIM Adapter
Specifications
Product classification
| Product Type | Adapter |
General specifications
| Inner Contact Plating | Silver |
| Interface | 4.3-10 Female |
| Interface 2 | 4.3-10 Male |
| Outer Contact Plating | Trimetal |
| Pressurizable | No |
Dimensions
| Length | 68 mm | 2.677 in |
| Diameter | 24 mm | 0.945 in |

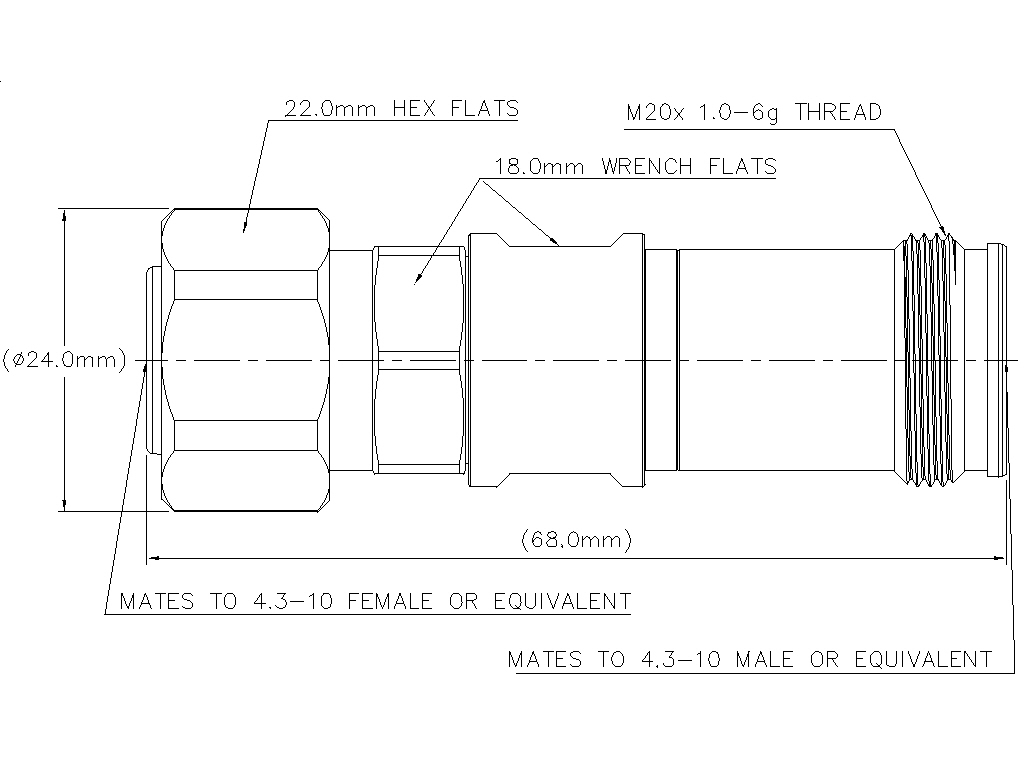

Outline drawing
| Click on image to enlarge. |
Electrical specifications
| 3rd Order IMD Test Method | Two +43 dBm carriers |
| Average Power | 200 W |
| Connector Impedance | 50 ohm |
| dc Test Voltage | 2500 V |
| Inner Contact Resistance, maximum | 1 mOhm |
| Operating Frequency Band | 0 – 6000 MHz |
| Peak Power, maximum | 2 kW |
Return loss/vswr
| Frequency band | Vswr | Return loss (db) |
| 0–6000 MHz | 1.083 | 28.00 |
Mechanical specifications
| Coupling Nut Proof Torque | 5 N-m | 44.254 in lb |
| Coupling Nut Retention Force | 450.000 N | 101.164 N |
| Coupling Nut Retention Force Method | IEC 61169-154 |
| Interface Durability | 100 cycles |
| Interface Durability Method | IEC 61169-154 |
| Mechanical Shock Test Method | MIL-STD-202F, Method 213B, Test Condition C |
Environmental specifications
| Operating Temperature | -40 °C to +65 °C (-40 °F to +149 °F) |
| Storage Temperature | -40 °C to +85 °C (-40 °F to +185 °F) |
| Attenuation, Ambient Temperature | 20 °C | 68 °F |
| Average Power, Ambient Temperature | 40 °C | 104 °F |
| Corrosion Test Method | MIL-STD-1344A, Method 1001.1, Test Condition A |
| Immersion Depth | 1 m |
| Immersion Test Mating | Mated |
| Immersion Test Method | IEC 60529:2001, IP68 |
| Moisture Resistance Test Method | MIL-STD-202F, Method 106F |
| Thermal Shock Test Method | MIL-STD-202F, Method 107G |
| Vibration Test Method | MIL-STD-202F, Method 204D, Test Condition B |
Packaging and weights
| Weight, net | 96.37 g | 0.212 lb |
Product classification
| Product Type | Adapter |
General specifications
| Inner Contact Plating | Silver |
| Interface | 4.3-10 Female |
| Interface 2 | 4.3-10 Male |
| Outer Contact Plating | Trimetal |
| Pressurizable | No |
Dimensions
| Length | 68 mm | 2.677 in |
| Diameter | 24 mm | 0.945 in |
Electrical specifications
| 3rd Order IMD Test Method | Two +43 dBm carriers |
| Average Power | 200 W |
| Connector Impedance | 50 ohm |
| dc Test Voltage | 2500 V |
| Inner Contact Resistance, maximum | 1 mOhm |
| Operating Frequency Band | 0 – 6000 MHz |
| Peak Power, maximum | 2 kW |
Return loss/vswr
| Frequency Band | VSWR | Return Loss (dB) |
| 0–6000 MHz | 1.083 | 28.00 |
Mechanical specifications
| Coupling Nut Proof Torque | 5 N-m | 44.254 in lb |
| Coupling Nut Retention Force | 450.000 N | 101.164 N |
| Coupling Nut Retention Force Method | IEC 61169-154 |
| Interface Durability | 100 cycles |
| Interface Durability Method | IEC 61169-154 |
| Mechanical Shock Test Method | MIL-STD-202F, Method 213B, Test Condition C |
Environmental specifications
| Operating Temperature | -40 °C to +65 °C (-40 °F to +149 °F) |
| Storage Temperature | -40 °C to +85 °C (-40 °F to +185 °F) |
| Attenuation, Ambient Temperature | 20 °C | 68 °F |
| Average Power, Ambient Temperature | 40 °C | 104 °F |
| Corrosion Test Method | MIL-STD-1344A, Method 1001.1, Test Condition A |
| Immersion Depth | 1 m |
| Immersion Test Mating | Mated |
| Immersion Test Method | IEC 60529:2001, IP68 |
| Moisture Resistance Test Method | MIL-STD-202F, Method 106F |
| Thermal Shock Test Method | MIL-STD-202F, Method 107G |
| Vibration Test Method | MIL-STD-202F, Method 204D, Test Condition B |
Packaging and weights
| Weight, net | 96.37 g | 0.212 lb |

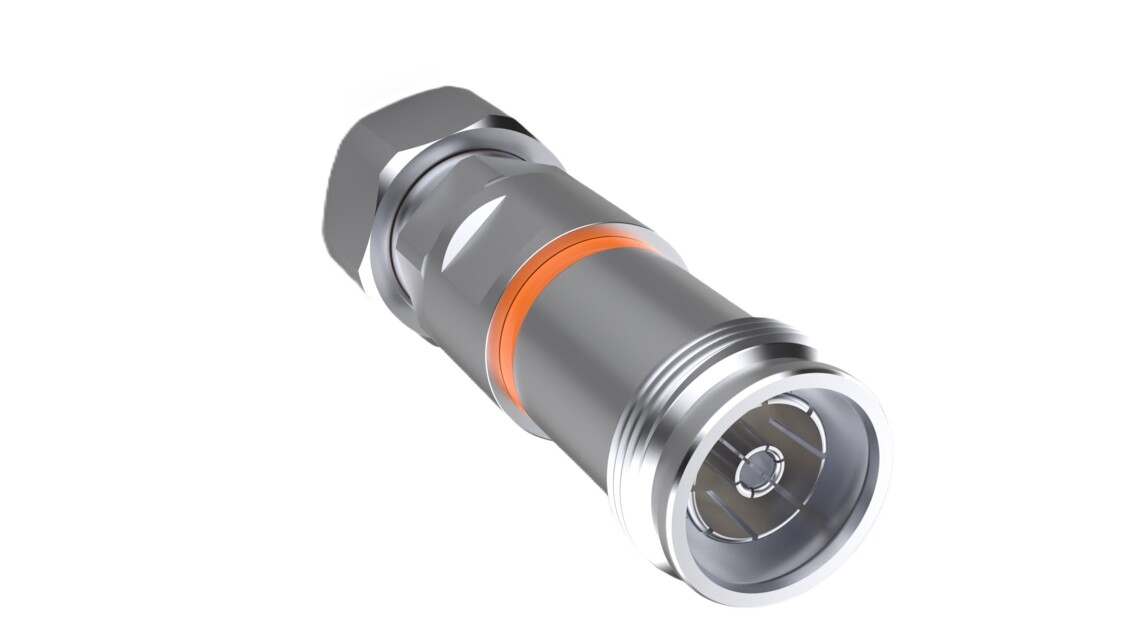

| Click on image to enlarge. |
