R7PNF
Type N Female Low PIM Positive Stop™ for 1-5/8 in RCT RADIAX® Radiating cable
Specifications
Product classification
| Product Type | Wireless and radiating connector |
| Product Brand | RADIAX® |
General specifications
| Body Style | Straight |
| Cable Family | RCT7 |
| Inner Contact Attachment Method | Thread-in stub |
| Inner Contact Plating | Gold |
| Interface | N Female |
| Mounting Angle | Straight |
| Outer Contact Attachment Method | Clamp |
| Outer Contact Plating | Trimetal |
| Pressurizable | No |
Dimensions
| Length | 105.66 mm | 4.160 in |
| Diameter | 62.74 mm | 2.470 in |
| Nominal Size | 1-5/8 in |

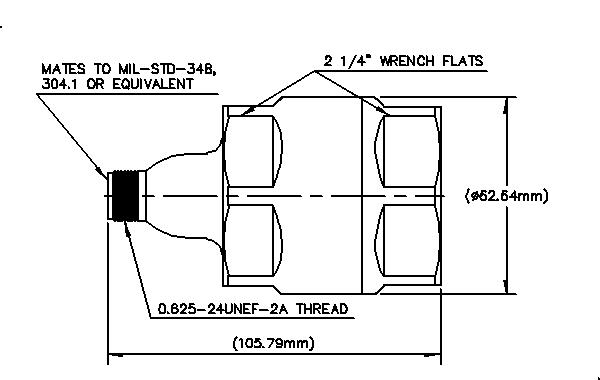

Outline drawing
| Click on image to enlarge. |
Electrical specifications
| 3rd Order IMD at Frequency | -107 dBm @ 910 MHz |
| 3rd Order IMD Test Method | Two +43 dBm carriers |
| Insertion Loss Coefficient, typical | 0.05 |
| Average Power at Frequency | 0.6 kW @ 900 MHz |
| Cable Impedance | 50 ohm |
| Connector Impedance | 50 ohm |
| dc Test Voltage | 2000 V |
| Inner Contact Resistance, maximum | 2 mOhm |
| Insulation Resistance, minimum | 5000 mOhm |
| Operating Frequency Band | 0 – 2700 MHz |
| Outer Contact Resistance, maximum | 0.3 mOhm |
| Peak Power, maximum | 10 kW |
| RF Operating Voltage, maximum (vrms) | 707 V |
Return loss/vswr
| Frequency band | Vswr | Return loss (db) |
| 50–1000 MHz | 1.065 | 30.04 |
| 1010–2200 MHz | 1.065 | 30.04 |
| 2210–2700 MHz | 1.083 | 27.99 |
Mechanical specifications
| Attachment Durability | 25 cycles |
| Connector Retention Tensile Force | 889.64 N | 200.000 lbf |
| Connector Retention Torque | 4.52 N-m | 39.997 in lb |
| Insertion Force | 66.72 N | 15.000 lbf |
| Insertion Force Method | MIL-C-39012C-3.12, 4.6.9 |
| Interface Durability | 500 cycles |
| Interface Durability Method | IEC 61169-16:9.5 |
| Mechanical Shock Test Method | MIL-STD-202F, Method 213B, Test Condition C |
Environmental specifications
| Operating Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
| Storage Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
| Attenuation, Ambient Temperature | 20 °C | 68 °F |
| Average Power, Ambient Temperature | 40 °C | 104 °F |
| Corrosion Test Method | MIL-STD-1344A, Method 1001.1, Test Condition A |
| Thermal Shock Test Method | MIL-STD-202F, Method 107G, Test Condition A-1, Low Temperature -55 °C |
Packaging and weights
| Weight, net | 833.95 g | 1.839 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
Product classification
| Product Type | Wireless and radiating connector |
| Product Brand | RADIAX® |
General specifications
| Body Style | Straight |
| Cable Family | RCT7 |
| Inner Contact Attachment Method | Thread-in stub |
| Inner Contact Plating | Gold |
| Interface | N Female |
| Mounting Angle | Straight |
| Outer Contact Attachment Method | Clamp |
| Outer Contact Plating | Trimetal |
| Pressurizable | No |
Dimensions
| Length | 105.66 mm | 4.160 in |
| Diameter | 62.74 mm | 2.470 in |
| Nominal Size | 1-5/8 in |
Electrical specifications
| 3rd Order IMD at Frequency | -107 dBm @ 910 MHz |
| 3rd Order IMD Test Method | Two +43 dBm carriers |
| Insertion Loss Coefficient, typical | 0.05 |
| Average Power at Frequency | 0.6 kW @ 900 MHz |
| Cable Impedance | 50 ohm |
| Connector Impedance | 50 ohm |
| dc Test Voltage | 2000 V |
| Inner Contact Resistance, maximum | 2 mOhm |
| Insulation Resistance, minimum | 5000 mOhm |
| Operating Frequency Band | 0 – 2700 MHz |
| Outer Contact Resistance, maximum | 0.3 mOhm |
| Peak Power, maximum | 10 kW |
| RF Operating Voltage, maximum (vrms) | 707 V |
Return loss/vswr
| Frequency Band | VSWR | Return Loss (dB) |
| 50–1000 MHz | 1.065 | 30.04 |
| 1010–2200 MHz | 1.065 | 30.04 |
| 2210–2700 MHz | 1.083 | 27.99 |
Mechanical specifications
| Attachment Durability | 25 cycles |
| Connector Retention Tensile Force | 889.64 N | 200.000 lbf |
| Connector Retention Torque | 4.52 N-m | 39.997 in lb |
| Insertion Force | 66.72 N | 15.000 lbf |
| Insertion Force Method | MIL-C-39012C-3.12, 4.6.9 |
| Interface Durability | 500 cycles |
| Interface Durability Method | IEC 61169-16:9.5 |
| Mechanical Shock Test Method | MIL-STD-202F, Method 213B, Test Condition C |
Environmental specifications
| Operating Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
| Storage Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
| Attenuation, Ambient Temperature | 20 °C | 68 °F |
| Average Power, Ambient Temperature | 40 °C | 104 °F |
| Corrosion Test Method | MIL-STD-1344A, Method 1001.1, Test Condition A |
| Thermal Shock Test Method | MIL-STD-202F, Method 107G, Test Condition A-1, Low Temperature -55 °C |
Packaging and weights
| Weight, net | 833.95 g | 1.839 lb |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
