F2PDR-C

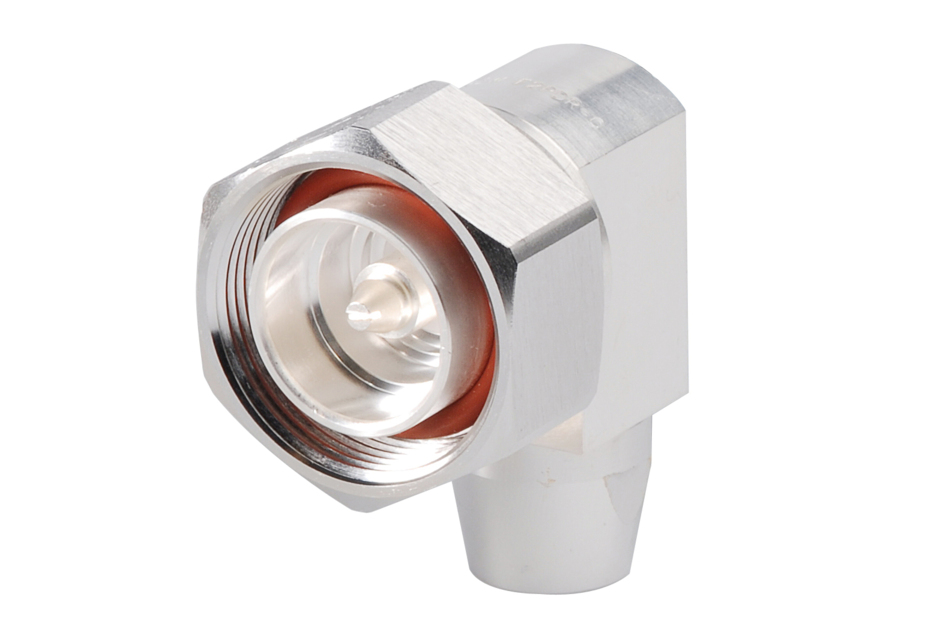

7-16 DIN Male Right Angle for 3/8 in FSJ2 and PTS2 cable
Specifications
Product classification
| Product Type | Wireless and radiating connector |
| Product Brand | HELIAX® |
| Product Series | FSJ2-50 |
General specifications
| Body Style | Right angle |
| Cable Family | FSJ2-50 |
| Inner Contact Attachment Method | Captivated |
| Inner Contact Plating | Silver |
| Interface | 7-16 DIN Male |
| Mounting Angle | Right angle |
| Outer Contact Attachment Method | Self-flare |
| Outer Contact Plating | Silver |
| Pressurizable | No |
Dimensions
| Height | 42.67 mm | 1.680 in |
| Length | 51.31 mm | 2.020 in |
| Diameter | 36.07 mm | 1.420 in |
| Nominal Size | 3/8 in |

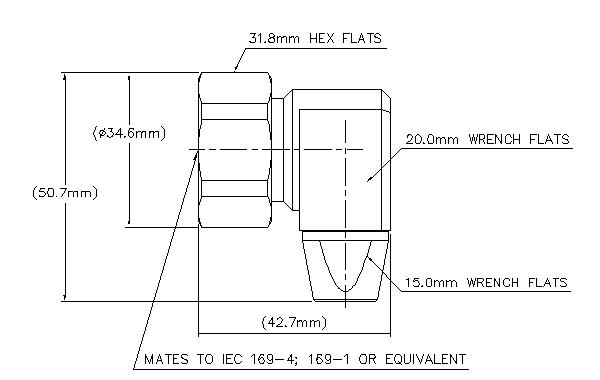

Outline drawing
| Click on image to enlarge. |
Electrical specifications
| 3rd Order IMD at Frequency | -112 dBm @ 910 MHz |
| 3rd Order IMD Test Method | Two +43 dBm carriers |
| Average Power at Frequency | 0.7 kW @ 900 MHz |
| Cable Impedance | 50 ohm |
| Connector Impedance | 50 ohm |
| dc Test Voltage | 2300 V |
| Inner Contact Resistance, maximum | 0.4 mOhm |
| Insulation Resistance, minimum | 10000 mOhm |
| Operating Frequency Band | 0 – 3000 MHz |
| Outer Contact Resistance, maximum | 1.5 mOhm |
| Peak Power, maximum | 13.2 kW |
| RF Operating Voltage, maximum (vrms) | 813 V |
| Shielding Effectiveness | -110 dB |
Return loss/vswr
| Frequency band | Vswr | Return loss (db) |
| 45–2000 MHz | 1.058 | 31.00 |
Mechanical specifications
| Connector Retention Tensile Force | 671.68 N | 151.000 lbf |
| Connector Retention Torque | 2.7 N-m | 23.897 in lb |
| Coupling Nut Proof Torque | 35 N-m | 309.776 in lb |
| Coupling Nut Proof Torque Method | IEC 61169-16:9.3.11 |
| Coupling Nut Retention Force | 1000 N | 224.810 lbf |
| Coupling Nut Retention Force Method | IEC 61169-17:9.3.11 |
| Insertion Force | 889.64 N | 200.000 lbf |
| Insertion Force Method | IEC 61169-16:9.3.5 |
| Interface Durability | 500 cycles |
| Interface Durability Method | IEC 61169-4:17 |
| Mechanical Shock Test Method | IEC 60068-2-27 |
Environmental specifications
| Operating Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
| Storage Temperature | -65 °C to +125 °C (-85 °F to +257 °F) |
| Attenuation, Ambient Temperature | 20 °C | 68 °F |
| Average Power, Ambient Temperature | 40 °C | 104 °F |
| Average Power, Inner Conductor Temperature | 100 °C | 212 °F |
| Corrosion Test Method | IEC 60068-2-11 |
| Immersion Depth | 1 m |
| Immersion Test Mating | Mated |
| Immersion Test Method | IEC 60529:2001, IP68 |
| Moisture Resistance Test Method | IEC 60068-2-3 |
| Thermal Shock Test Method | IEC 60068-2-14 |
| Vibration Test Method | IEC 60068-2-6 |
Packaging and weights
| Weight, net | 214.4 g | 0.473 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| UK-ROHS | Compliant, Compliant/Exempted |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
Product classification
| Product Type | Wireless and radiating connector |
| Product Brand | HELIAX® |
| Product Series | FSJ2-50 |
General specifications
| Body Style | Right angle |
| Cable Family | FSJ2-50 |
| Inner Contact Attachment Method | Captivated |
| Inner Contact Plating | Silver |
| Interface | 7-16 DIN Male |
| Mounting Angle | Right angle |
| Outer Contact Attachment Method | Self-flare |
| Outer Contact Plating | Silver |
| Pressurizable | No |
Dimensions
| Height | 42.67 mm | 1.680 in |
| Length | 51.31 mm | 2.020 in |
| Diameter | 36.07 mm | 1.420 in |
| Nominal Size | 3/8 in |
Electrical specifications
| 3rd Order IMD at Frequency | -112 dBm @ 910 MHz |
| 3rd Order IMD Test Method | Two +43 dBm carriers |
| Average Power at Frequency | 0.7 kW @ 900 MHz |
| Cable Impedance | 50 ohm |
| Connector Impedance | 50 ohm |
| dc Test Voltage | 2300 V |
| Inner Contact Resistance, maximum | 0.4 mOhm |
| Insulation Resistance, minimum | 10000 mOhm |
| Operating Frequency Band | 0 – 3000 MHz |
| Outer Contact Resistance, maximum | 1.5 mOhm |
| Peak Power, maximum | 13.2 kW |
| RF Operating Voltage, maximum (vrms) | 813 V |
| Shielding Effectiveness | -110 dB |
Return loss/vswr
| Frequency Band | VSWR | Return Loss (dB) |
| 45–2000 MHz | 1.058 | 31.00 |
Mechanical specifications
| Connector Retention Tensile Force | 671.68 N | 151.000 lbf |
| Connector Retention Torque | 2.7 N-m | 23.897 in lb |
| Coupling Nut Proof Torque | 35 N-m | 309.776 in lb |
| Coupling Nut Proof Torque Method | IEC 61169-16:9.3.11 |
| Coupling Nut Retention Force | 1000 N | 224.810 lbf |
| Coupling Nut Retention Force Method | IEC 61169-17:9.3.11 |
| Insertion Force | 889.64 N | 200.000 lbf |
| Insertion Force Method | IEC 61169-16:9.3.5 |
| Interface Durability | 500 cycles |
| Interface Durability Method | IEC 61169-4:17 |
| Mechanical Shock Test Method | IEC 60068-2-27 |
Environmental specifications
| Operating Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
| Storage Temperature | -65 °C to +125 °C (-85 °F to +257 °F) |
| Attenuation, Ambient Temperature | 20 °C | 68 °F |
| Average Power, Ambient Temperature | 40 °C | 104 °F |
| Average Power, Inner Conductor Temperature | 100 °C | 212 °F |
| Corrosion Test Method | IEC 60068-2-11 |
| Immersion Depth | 1 m |
| Immersion Test Mating | Mated |
| Immersion Test Method | IEC 60529:2001, IP68 |
| Moisture Resistance Test Method | IEC 60068-2-3 |
| Thermal Shock Test Method | IEC 60068-2-14 |
| Vibration Test Method | IEC 60068-2-6 |
Packaging and weights
| Weight, net | 214.4 g | 0.473 lb |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| UK-ROHS | Compliant, Compliant/Exempted |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
