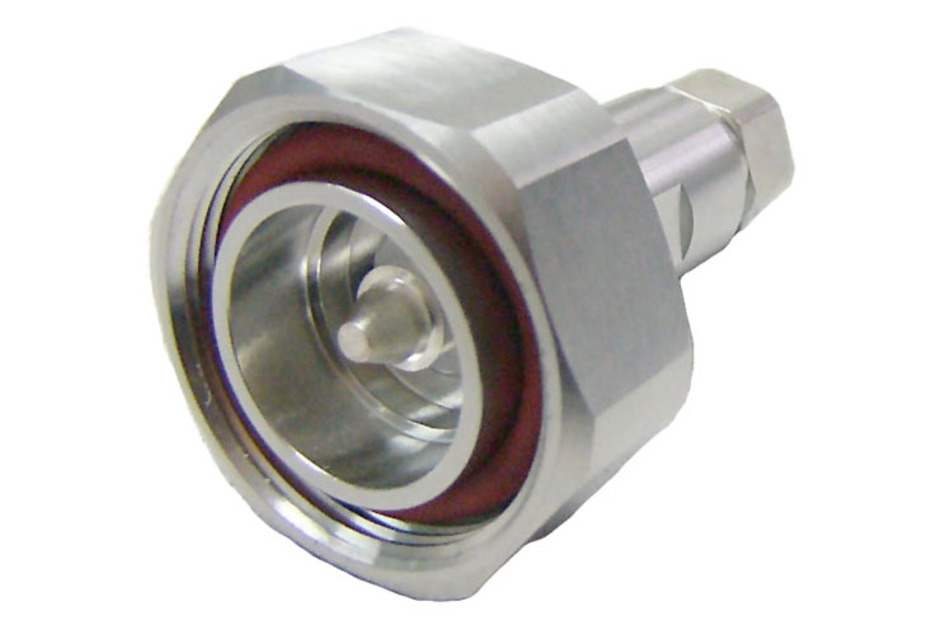

F1TDM-C
7-16 DIN Male for 1/4 in FSJ1-50A cable
Specifications
Product classification
| Product Type | Wireless and radiating connector |
| Product Brand | HELIAX® |
| Product Series | FSJ1-50A |
General specifications
| Body Style | Straight |
| Cable Family | FSJ1-50A |
| Inner Contact Attachment Method | Captivated |
| Inner Contact Plating | Silver |
| Interface | 7-16 DIN Male |
| Mounting Angle | Straight |
| Outer Contact Attachment Method | Self-clamping |
| Outer Contact Plating | Trimetal |
Dimensions
| Height | 34.54 mm | 1.360 in |
| Width | 35.81 mm | 1.410 in |
| Length | 49.53 mm | 1.950 in |
| Diameter | 34.54 mm | 1.360 in |
| Nominal Size | 1/4 in |

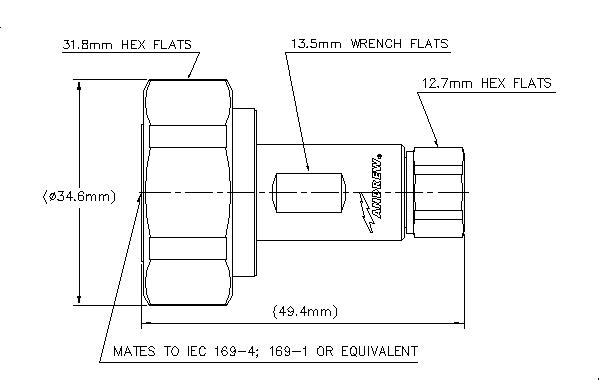

Outline drawing
| Click on image to enlarge. |
Electrical specifications
| 3rd Order IMD at Frequency | -112 dBm @ 910 MHz |
| 3rd Order IMD Test Method | Two +43 dBm carriers |
| Cable Impedance | 50 ohm |
| Connector Impedance | 50 ohm |
| dc Test Voltage | 1600 V |
| Inner Contact Resistance, maximum | 0.4 mOhm |
| Insulation Resistance, minimum | 10000 mOhm |
| Operating Frequency Band | 0 – 6000 MHz |
| Outer Contact Resistance, maximum | 1.5 mOhm |
| Peak Power, maximum | 6.4 kW |
| RF Operating Voltage, maximum (vrms) | 565 V |
| Shielding Effectiveness | -110 dB |
Return loss/vswr
| Frequency band | Vswr | Return loss (db) |
| 0–3000 MHz | 1.060 | 30.72 |
| 3000–6000 MHz | 1.150 | 23.13 |
Mechanical specifications
| Connector Retention Tensile Force | 449.27 N | 101.000 lbf |
| Coupling Nut Proof Torque | 50 N-m | 442.537 in lb |
| Coupling Nut Retention Force | 1000 N | 224.810 lbf |
| Coupling Nut Retention Force Method | IEC 61169-4:9.3.11 |
| Interface Durability | 500 cycles |
| Interface Durability Method | IEC 61169-4:9.5 |
| Mechanical Shock Test Method | IEC 60068-2-27 |
Environmental specifications
| Operating Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
| Storage Temperature | -65 °C to +125 °C (-85 °F to +257 °F) |
| Attenuation, Ambient Temperature | 20 °C | 68 °F |
| Average Power, Ambient Temperature | 40 °C | 104 °F |
| Average Power, Inner Conductor Temperature | 100 °C | 212 °F |
| Corrosion Test Method | IEC 60068-2-11 |
| Immersion Depth | 1 m |
| Immersion Test Mating | Mated |
| Immersion Test Method | IEC 60529:2001, IP68 |
| Moisture Resistance Test Method | IEC 60068-2-3 |
| Thermal Shock Test Method | IEC 60068-2-14 |
| Vibration Test Method | IEC 60068-2-6 |
Packaging and weights
| Weight, net | 100.76 g | 0.222 lb |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
Product classification
| Product Type | Wireless and radiating connector |
| Product Brand | HELIAX® |
| Product Series | FSJ1-50A |
General specifications
| Body Style | Straight |
| Cable Family | FSJ1-50A |
| Inner Contact Attachment Method | Captivated |
| Inner Contact Plating | Silver |
| Interface | 7-16 DIN Male |
| Mounting Angle | Straight |
| Outer Contact Attachment Method | Self-clamping |
| Outer Contact Plating | Trimetal |
Dimensions
| Height | 34.54 mm | 1.360 in |
| Width | 35.81 mm | 1.410 in |
| Length | 49.53 mm | 1.950 in |
| Diameter | 34.54 mm | 1.360 in |
| Nominal Size | 1/4 in |
Electrical specifications
| 3rd Order IMD at Frequency | -112 dBm @ 910 MHz |
| 3rd Order IMD Test Method | Two +43 dBm carriers |
| Cable Impedance | 50 ohm |
| Connector Impedance | 50 ohm |
| dc Test Voltage | 1600 V |
| Inner Contact Resistance, maximum | 0.4 mOhm |
| Insulation Resistance, minimum | 10000 mOhm |
| Operating Frequency Band | 0 – 6000 MHz |
| Outer Contact Resistance, maximum | 1.5 mOhm |
| Peak Power, maximum | 6.4 kW |
| RF Operating Voltage, maximum (vrms) | 565 V |
| Shielding Effectiveness | -110 dB |
Return loss/vswr
| Frequency Band | VSWR | Return Loss (dB) |
| 0–3000 MHz | 1.060 | 30.72 |
| 3000–6000 MHz | 1.150 | 23.13 |
Mechanical specifications
| Connector Retention Tensile Force | 449.27 N | 101.000 lbf |
| Coupling Nut Proof Torque | 50 N-m | 442.537 in lb |
| Coupling Nut Retention Force | 1000 N | 224.810 lbf |
| Coupling Nut Retention Force Method | IEC 61169-4:9.3.11 |
| Interface Durability | 500 cycles |
| Interface Durability Method | IEC 61169-4:9.5 |
| Mechanical Shock Test Method | IEC 60068-2-27 |
Environmental specifications
| Operating Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
| Storage Temperature | -65 °C to +125 °C (-85 °F to +257 °F) |
| Attenuation, Ambient Temperature | 20 °C | 68 °F |
| Average Power, Ambient Temperature | 40 °C | 104 °F |
| Average Power, Inner Conductor Temperature | 100 °C | 212 °F |
| Corrosion Test Method | IEC 60068-2-11 |
| Immersion Depth | 1 m |
| Immersion Test Mating | Mated |
| Immersion Test Method | IEC 60529:2001, IP68 |
| Moisture Resistance Test Method | IEC 60068-2-3 |
| Thermal Shock Test Method | IEC 60068-2-14 |
| Vibration Test Method | IEC 60068-2-6 |
Packaging and weights
| Weight, net | 100.76 g | 0.222 lb |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
Installation & videos
Installation instruction
F1TDM-C 716 DIN Male Connector Installation for HELIAX® FSJ1 cables -manual tool MCPT-1412
F1TDM-C 716 DIN Male Connector Installation for HELIAX® FSJ1 cables -manual tool MCPT-1412
