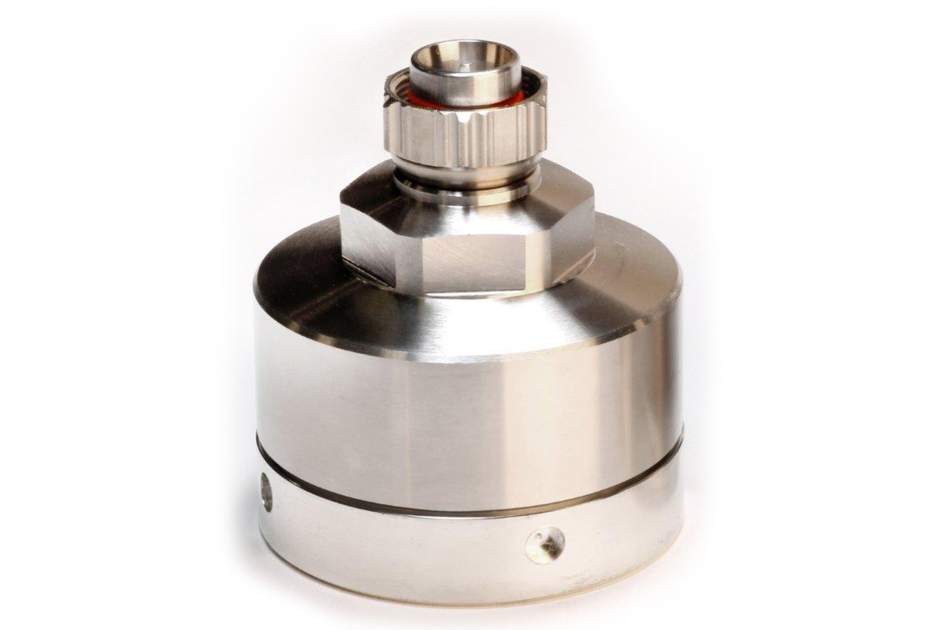

A6HM-S
4.3-10 Male for 1-1/4 in AVA6-50 cable
Specifications
Product classification
| Product Type | Wireless and radiating connector |
| Product Brand | HELIAX® |
| Product Series | AVA6-50 | AVA6RK-50 |
General specifications
| Body Style | Straight |
| Cable Family | AVA6-50 |
| Harmonized System (HS) Code | 85366910 (Coaxial cable and other coaxial electric conductors) |
| Inner Contact Attachment Method | Captivated |
| Inner Contact Plating | Silver |
| Interface | 4.3-10 Male |
| Mounting Angle | Straight |
| Outer Contact Attachment Method | Clamp |
| Outer Contact Plating | Trimetal |
Dimensions
| Length | 60.3 mm | 2.374 in |
| Diameter | 49 mm | 1.929 in |
| Nominal Size | 1-1/4 in |

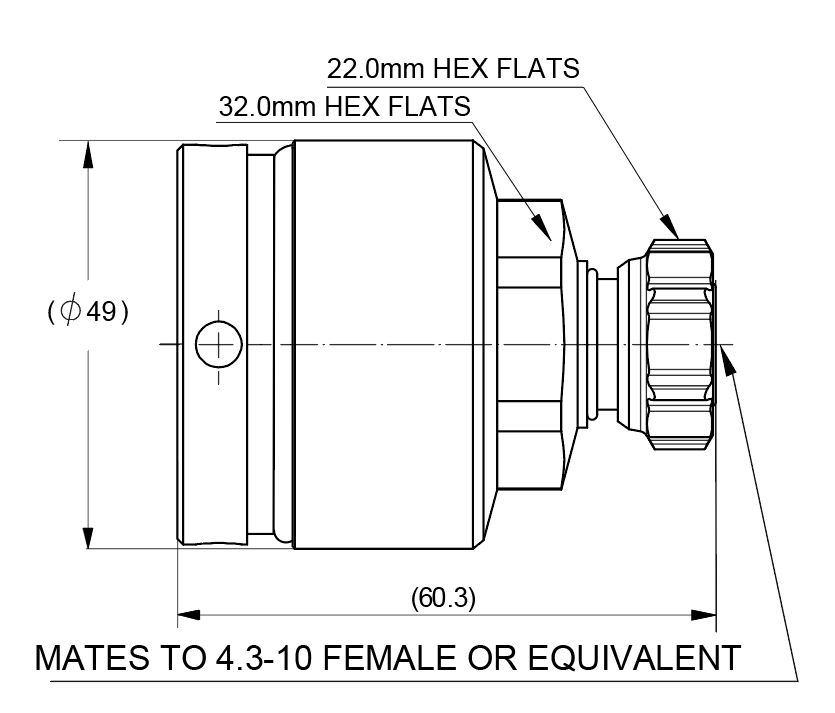

Outline drawing
| Click on image to enlarge. |
Electrical specifications
| 3rd Order IMD at Frequency | -117 dBm @ 1800 MHz |
| 3rd Order IMD Test Method | Two +43 dBm carriers |
| Insertion Loss Coefficient, typical | 0.05 |
| Return Loss Note | Measurements taken using a .9 m (3 ft) jumper assembly |
| Connector Impedance | 50 ohm |
| Operating Frequency Band | 0 – 4000 MHz |
Return loss/vswr
| Frequency band | Vswr | Return loss (db) |
| 0–1000 MHz | 1.020 | 40.09 |
| 1000–2700 MHz | 1.040 | 34.16 |
| 2700–3300 MHz | 1.070 | 29.42 |
Mechanical specifications
| Coupling Nut Proof Torque | 10 N-m | 88.507 in lb |
| Interface Durability Method | IEC 61169-4:9.5 |
| Mechanical Shock Test Method | IEC 60068-2-27 |
Environmental specifications
| Operating Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
| Storage Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
| Attenuation, Ambient Temperature | 20 °C | 68 °F |
| Average Power, Ambient Temperature | 40 °C | 104 °F |
| Corrosion Test Method | IEC 60068-2-11 |
| Immersion Depth | 1 m |
| Immersion Test Mating | Mated |
| Immersion Test Method | IEC 60529:2001, IP68 |
| Moisture Resistance Test Method | IEC 60068-2-3 |
| Thermal Shock Test Method | IEC 60068-2-14 |
| Vibration Test Method | IEC 60068-2-6 |
| Water Jetting Test Mating | Mated |
| Water Jetting Test Method | IEC 60529:2001, IP66 |
Packaging and weights
| Weight, net | 295 g | 0.65 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Above maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
Product classification
| Product Type | Wireless and radiating connector |
| Product Brand | HELIAX® |
| Product Series | AVA6-50 | AVA6RK-50 |
General specifications
| Body Style | Straight |
| Cable Family | AVA6-50 |
| Harmonized System (HS) Code | 85366910 (Coaxial cable and other coaxial electric conductors) |
| Inner Contact Attachment Method | Captivated |
| Inner Contact Plating | Silver |
| Interface | 4.3-10 Male |
| Mounting Angle | Straight |
| Outer Contact Attachment Method | Clamp |
| Outer Contact Plating | Trimetal |
Dimensions
| Length | 60.3 mm | 2.374 in |
| Diameter | 49 mm | 1.929 in |
| Nominal Size | 1-1/4 in |
Electrical specifications
| 3rd Order IMD at Frequency | -117 dBm @ 1800 MHz |
| 3rd Order IMD Test Method | Two +43 dBm carriers |
| Insertion Loss Coefficient, typical | 0.05 |
| Return Loss Note | Measurements taken using a .9 m (3 ft) jumper assembly |
| Connector Impedance | 50 ohm |
| Operating Frequency Band | 0 – 4000 MHz |
Return loss/vswr
| Frequency Band | VSWR | Return Loss (dB) |
| 0–1000 MHz | 1.020 | 40.09 |
| 1000–2700 MHz | 1.040 | 34.16 |
| 2700–3300 MHz | 1.070 | 29.42 |
Mechanical specifications
| Coupling Nut Proof Torque | 10 N-m | 88.507 in lb |
| Interface Durability Method | IEC 61169-4:9.5 |
| Mechanical Shock Test Method | IEC 60068-2-27 |
Environmental specifications
| Operating Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
| Storage Temperature | -55 °C to +85 °C (-67 °F to +185 °F) |
| Attenuation, Ambient Temperature | 20 °C | 68 °F |
| Average Power, Ambient Temperature | 40 °C | 104 °F |
| Corrosion Test Method | IEC 60068-2-11 |
| Immersion Depth | 1 m |
| Immersion Test Mating | Mated |
| Immersion Test Method | IEC 60529:2001, IP68 |
| Moisture Resistance Test Method | IEC 60068-2-3 |
| Thermal Shock Test Method | IEC 60068-2-14 |
| Vibration Test Method | IEC 60068-2-6 |
| Water Jetting Test Mating | Mated |
| Water Jetting Test Method | IEC 60529:2001, IP66 |
Packaging and weights
| Weight, net | 295 g | 0.65 lb |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Above maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
