TA-XMHF

NEX10 Male to 4.3-10 Female Adapter

Finish making your selections or clear them to view relevant specifications.
Download specifications
Find a partner

Product classification

Product Type Adapter

General specifications

Body Style Straight
Inner Contact Plating Silver
Interface NEX10 Male
Interface 2 4.3-10 Female
Outer Contact Plating Trimetal

Dimensions

Length 40.1 mm | 1.579 in
Diameter 20 mm | 0.787 in

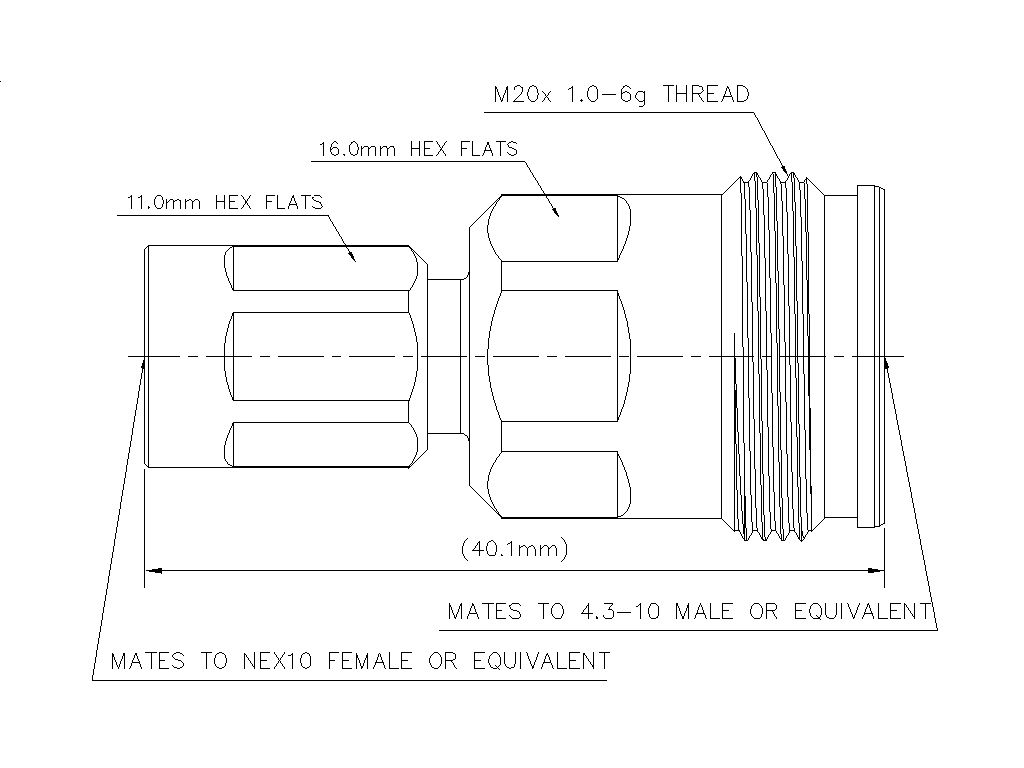

Outline drawing

Click on image to enlarge.

Electrical specifications

3rd Order IMD at Frequency -119 dBm @ 1900 MHz
3rd Order IMD Test Method Two +43 dBm carriers
Insertion Loss, maximum 0.05 dB
Connector Impedance 50 ohm
dc Test Voltage 1500 V
Inner Contact Resistance, maximum 2 mOhm
Insulation Resistance, minimum 5000 mOhm
Operating Frequency Band 0 – 6000 MHz
Outer Contact Resistance, maximum 1 mOhm
Peak Power, maximum 0.1 kW
RF Operating Voltage, maximum (vrms) 1000 V
Shielding Effectiveness 110 dB

Return loss/vswr

Frequency band Vswr Return loss (db)
0–3000 MHz 1.052 32.00
3000–6000 MHz 1.106 26.00

Mechanical specifications

Coupling Nut Torque 1.5 N-m | 13.276 in lb
Coupling Nut Proof Torque 5 N-m | 44.254 in lb
Coupling Nut Proof Torque Method IEC 61169-1:9.3.6
Coupling Nut Retention Force 450 N | 101.164 lbf
Coupling Nut Retention Force Method IEC 61169-1:9.3.11
Insertion Force 35 N | 7.868 lbf
Interface Durability 100 cycles
Mechanical Shock Test Method IEC 60068-2-27

Environmental specifications

Operating Temperature -55 °C to +85 °C (-67 °F to +185 °F)
Storage Temperature -65 °C to +125 °C (-85 °F to +257 °F)
Attenuation, Ambient Temperature 20 °C | 68 °F
Average Power, Ambient Temperature 40 °C | 104 °F
Average Power, Inner Conductor Temperature 100 °C | 212 °F
Climatic Sequence Test Method IEC 60068-1
Corrosion Test Method IEC 60068-2-11
Damp Heat Steady State Test Method IEC 60068-2-3
Immersion Depth 1 m
Immersion Test Mating Mated
Immersion Test Method IEC 60529:2001, IP68
Thermal Shock Test Method IEC 60068-2-14
Vibration Test Method IEC 60068-2-6

Packaging and weights

Weight, net 33.1 g | 0.073 lb

Regulatory compliance/certifications

Agency Classification
CHINA-ROHS Above maximum concentration value
ROHS Compliant/Exempted
UK-ROHS Compliant/Exempted

Product classification

Product Type Adapter

General specifications

Body Style Straight
Inner Contact Plating Silver
Interface NEX10 Male
Interface 2 4.3-10 Female
Outer Contact Plating Trimetal

Dimensions

Length 40.1 mm | 1.579 in
Diameter 20 mm | 0.787 in

Electrical specifications

3rd Order IMD at Frequency -119 dBm @ 1900 MHz
3rd Order IMD Test Method Two +43 dBm carriers
Insertion Loss, maximum 0.05 dB
Connector Impedance 50 ohm
dc Test Voltage 1500 V
Inner Contact Resistance, maximum 2 mOhm
Insulation Resistance, minimum 5000 mOhm
Operating Frequency Band 0 – 6000 MHz
Outer Contact Resistance, maximum 1 mOhm
Peak Power, maximum 0.1 kW
RF Operating Voltage, maximum (vrms) 1000 V
Shielding Effectiveness 110 dB

Return loss/vswr

Frequency Band VSWR Return Loss (dB)
0–3000 MHz 1.052 32.00
3000–6000 MHz 1.106 26.00

Mechanical specifications

Coupling Nut Torque 1.5 N-m | 13.276 in lb
Coupling Nut Proof Torque 5 N-m | 44.254 in lb
Coupling Nut Proof Torque Method IEC 61169-1:9.3.6
Coupling Nut Retention Force 450 N | 101.164 lbf
Coupling Nut Retention Force Method IEC 61169-1:9.3.11
Insertion Force 35 N | 7.868 lbf
Interface Durability 100 cycles
Mechanical Shock Test Method IEC 60068-2-27

Environmental specifications

Operating Temperature -55 °C to +85 °C (-67 °F to +185 °F)
Storage Temperature -65 °C to +125 °C (-85 °F to +257 °F)
Attenuation, Ambient Temperature 20 °C | 68 °F
Average Power, Ambient Temperature 40 °C | 104 °F
Average Power, Inner Conductor Temperature 100 °C | 212 °F
Climatic Sequence Test Method IEC 60068-1
Corrosion Test Method IEC 60068-2-11
Damp Heat Steady State Test Method IEC 60068-2-3
Immersion Depth 1 m
Immersion Test Mating Mated
Immersion Test Method IEC 60529:2001, IP68
Thermal Shock Test Method IEC 60068-2-14
Vibration Test Method IEC 60068-2-6

Packaging and weights

Weight, net 33.1 g | 0.073 lb

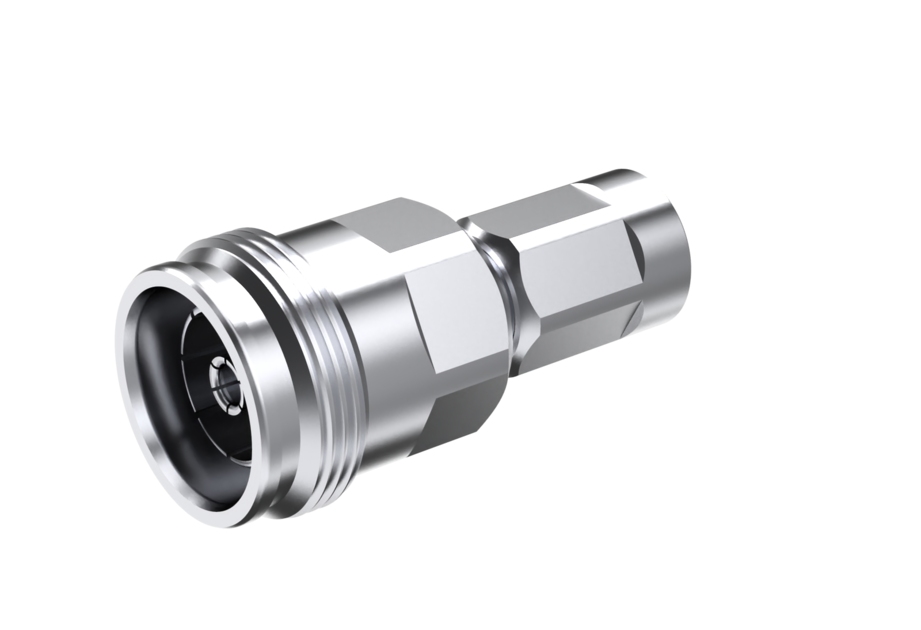

Click on image to enlarge.

Regulatory compliance/certifications

Agency Classification
CHINA-ROHS Above maximum concentration value
ROHS Compliant/Exempted
UK-ROHS Compliant/Exempted

Product compliance documentation

Global Trade Data
Statement of Compliance RoHS/REACH

Product specification

TA-XMHF Product specifications

Warranty

ANDREW Terms, Conditions and Warranty

Product compliance documentation

Global Trade Data
Statement of Compliance RoHS/REACH

Product specification

TA-XMHF Product specifications

Warranty

ANDREW Terms, Conditions and Warranty
