DPJ-212-48V-40
Base product: DPJ-212-SERIES
- Available in:
- Asia
- Australia/New Zealand
- EMEA
- Latin America
- North America

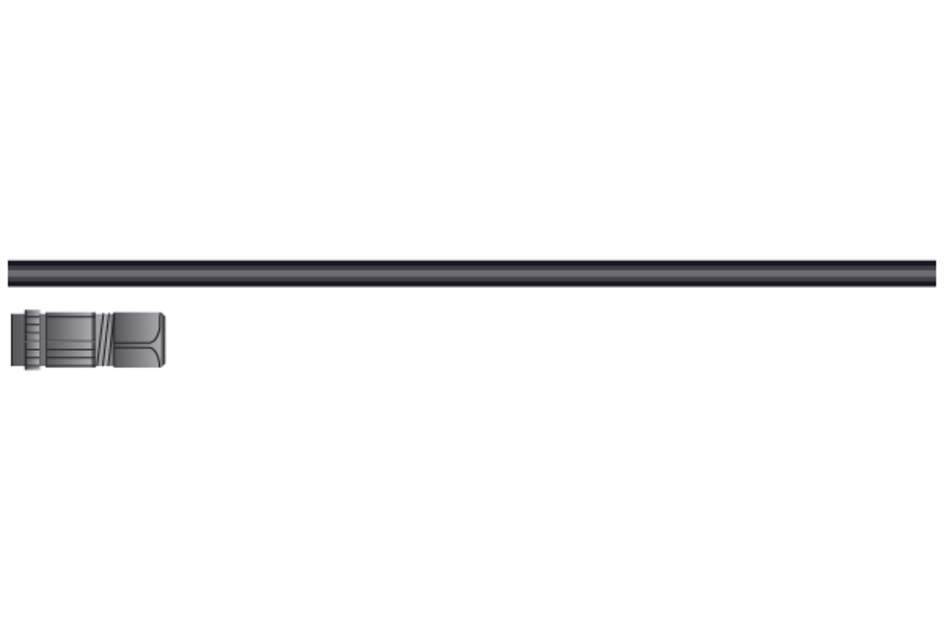

PowerShift Metro® Power cable assembly from Remote Node to RRU, 2 x 12 AWG, shielded, End 1: RRU ready, End 2: Blunt cut, DC connector included, 40ft
Specifications
Product classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Product Type | Power cable assembly |
| Product Brand | PowerShift Metro® |
| Product Series | DPJ |
General specifications
| Cable Type | Power |
| Conductor Type, singles | Stranded |
| Conductors, quantity | 2 |
| Construction Type | Direct power tail |
| Jacket Color | Black |
| Supported Application | Industrial |
Dimensions
| Diameter Over Conductor, singles, specific | 0.1260 in per 105 strands |
| Diameter Over Dielectric | 4.724 mm | 0.186 in |
| Diameter Over Jacket, nominal | 10.135 mm | 0.399 in |
| Jacket Thickness | 1.143 mm | 0.045 in |
| Conductor Gauge, singles | 12 AWG |
| Drain Wire Gauge | 16 AWG |
| Ground Wire Gauge | 12 AWG |
Electrical specifications
| Conductor dc Resistance | 5.413 ohms/km | 1.65 ohms/kft |
| Conductor dc Resistance Note | Maximum value based on a standard condition of 20 °C (68 °F) |
Material specifications
| Conductor Material | Tinned copper |
| Dielectric Material | PVC |
| Filler Material | Polypropylene |
| Insulation Material, singles | PVC |
| Jacket Material | PVC |
Mechanical specifications
| Minimum Bend Radius | 8.3 mm | 0.327 in |
Environmental specifications
| Installation temperature | -30 °C to +70 °C (-22 °F to +158 °F) |
| Operating Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Environmental Space | UV resistant for outdoor and/or direct burial installations |
| Safety Standard | NEC Article 336 (Type TC) |
Packaging and weights
| Cable weight | 0.38 kg/m | 0.255 lb/ft |
Product classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Product Type | Power cable assembly |
| Product Brand | PowerShift Metro® |
| Product Series | DPJ |
General specifications
| Cable Type | Power |
| Conductor Type, singles | Stranded |
| Conductors, quantity | 2 |
| Construction Type | Direct power tail |
| Jacket Color | Black |
| Supported Application | Industrial |
Dimensions
| Diameter Over Conductor, singles, specific | 0.1260 in per 105 strands |
| Diameter Over Dielectric | 4.724 mm | 0.186 in |
| Diameter Over Jacket, nominal | 10.135 mm | 0.399 in |
| Jacket Thickness | 1.143 mm | 0.045 in |
| Conductor Gauge, singles | 12 AWG |
| Drain Wire Gauge | 16 AWG |
| Ground Wire Gauge | 12 AWG |
Electrical specifications
| Conductor dc Resistance | 5.413 ohms/km | 1.65 ohms/kft |
| Conductor dc Resistance Note | Maximum value based on a standard condition of 20 °C (68 °F) |
Material specifications
| Conductor Material | Tinned copper |
| Dielectric Material | PVC |
| Filler Material | Polypropylene |
| Insulation Material, singles | PVC |
| Jacket Material | PVC |
Mechanical specifications
| Minimum Bend Radius | 8.3 mm | 0.327 in |
Environmental specifications
| Installation temperature | -30 °C to +70 °C (-22 °F to +158 °F) |
| Operating Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
| Environmental Space | UV resistant for outdoor and/or direct burial installations |
| Safety Standard | NEC Article 336 (Type TC) |
Packaging and weights
| Cable weight | 0.38 kg/m | 0.255 lb/ft |
