760245739 | HTC-144SM-DT-412-218-APVA

Available in:
Asia
Australia/New Zealand
EMEA
Latin America
North America

HELIAX® Hybrid Cable with aluminum armor

Finish making your selections or clear them to view relevant specifications.

Find a partner

Specifications

Product classification

Regional Availability	Asia \| Australia/New Zealand \| EMEA \| Latin America \| North America
Product Type	Hybrid cable, copper and fiber
Product Brand	HELIAX®

General specifications

Application	Remote radio head
Cable Type	Wireless feeder
Conductors, quantity	4
Construction Type	Shielded
Fiber Short Description	RFF – 12AWG
Inner Shield (Tape) Material	Corrugated aluminum
Jacket Color	Black
Outer Shield (Tape) Material	PE
Strength Members	Glass reinforced plastic rod
Subunit, quantity	12
Fibers per Subunit, quantity	12
Total Fiber Count	144
Water Blocking Method	Water blocking tape(s) \| Water blocking threads

Dimensions

Buffer Tube/Subunit Diameter	2.54 mm \| 0.1 in
Diameter Over Jacket	22.352 mm \| 0.88 in
Conductor Gauge	12 AWG

Electrical specifications

dc Resistance Note	Maximum value based on a standard condition of 20 °C (68 °F)
dc Resistance, maximum	5.413 ohms/km \| 1.65 ohms/kft
Electrical Safety Standard	UL 1277, Type TC-ER-OF

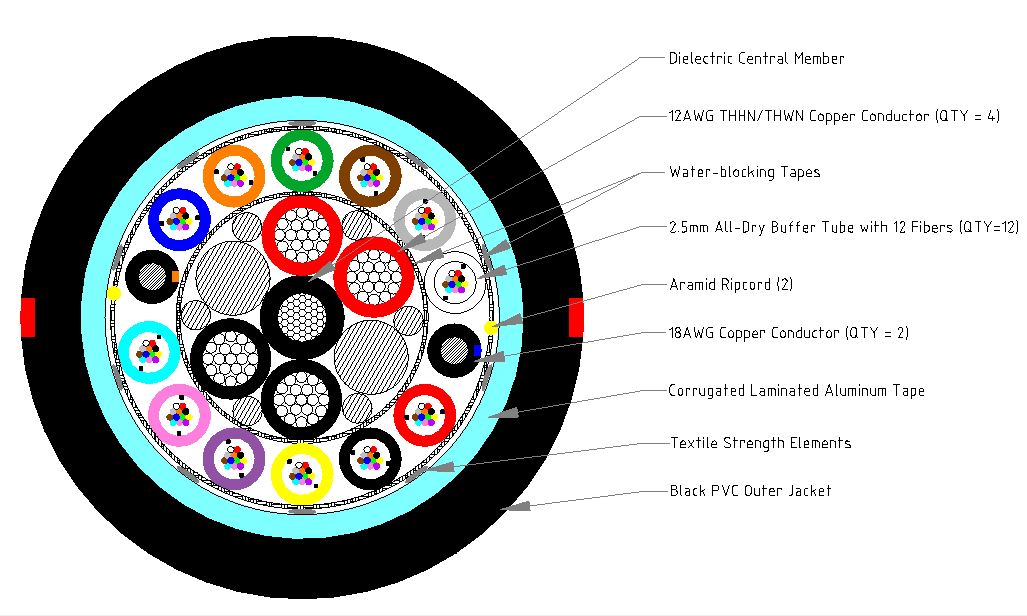

Representative image

Click on image to enlarge.

Material specifications

Ripcord Material

Para-aramid synthetic fiber

Mechanical specifications

Minimum Bend Radius, multiple bends, loaded	436.88 mm \| 17.2 in
Minimum Bend Radius, multiple bends, unloaded	261.62 mm \| 10.3 in
Minimum Bend Radius, single bend, unloaded	152.4 mm \| 6 in
Tensile Load, long term, maximum	800.68 N \| 180 lbf
Tensile Load, short term, maximum	2668.932 N \| 600 lbf
Compression	2.25 kg/mm \| 126 lb/in
Compression Test Method	FOTP-41
Flex	25 cycles
Flex Test Method	FOTP-104
Impact	2.942 N-m \| 2.17 ft lb
Impact Test Method	FOTP-25
Twist	10 cycles
Twist Test Method	FOTP-85

Optical specifications

Fiber Type

G.652.D and G.657.A1

Environmental specifications

Installation temperature	-30 °C to +70 °C (-22 °F to +158 °F)
Operating Temperature	-40 °C to +70 °C (-40 °F to +158 °F)
Storage Temperature	-40 °C to +80 °C (-40 °F to +176 °F)
Cable Qualification Standards	ANSI/ICEA S-87-640 \| Telcordia GR-20 \| UL 1277
Environmental Space	Wireless installation
Jacket UV Resistance	UV stabilized

Packaging and weights

Cable weight

568.479 kg/km | 382 lb/kft

Regulatory compliance/certifications

Agency	Classification
CHINA-ROHS	Below maximum concentration value
ROHS	Compliant
UK-ROHS	Compliant
REACH-SVHC	Compliant as per SVHC revision on www.andrew.com/ProductCompliance
