DFJ-2M4-7-HW-1M
Base product: DFJ-SERIES
- Available in:
- Asia
- Australia/New Zealand
- EMEA
- Latin America
- North America

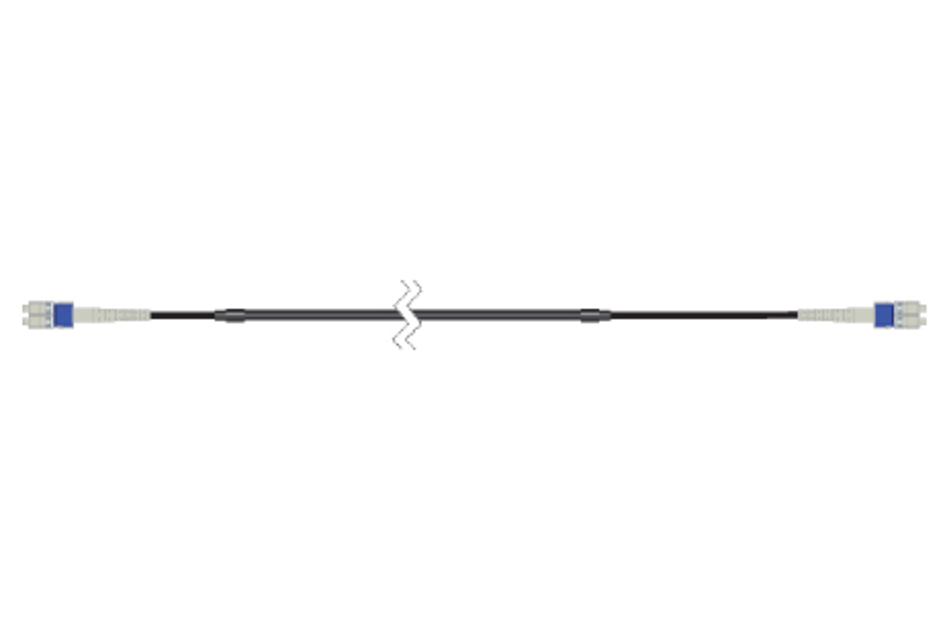

HELIAX® Discrete, 2 multimode fiber, 7 mm LSZH cable. End 1: DLC. End 2: DLC, 1 m
Specifications
Product classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Product Type | Wireless Fiber Cable Assemblies |
| Product Brand | HELIAX® |
| Product Series | DFJ |
| Ordering Note | ANDREW® non-standard product |
General specifications
| Construction Type | Discrete fiber tail |
| Interface, Connector A | DLC |
| Interface Body Style, connector A | Straight |
| Interface, Connector B | DLC |
| Interface Body Style, connector B | Straight |
| Jacket Color | Black |
| Total Fibers, quantity | 2 |
Dimensions
| Cord Length | 1 m | 3.281 ft |
| Diameter Over Jacket | 7 mm | 0.276 in |
Material specifications
| Jacket Material | Low Smoke Zero Halogen (LSZH) |
Optical specifications
| Fiber Mode | Multimode |
| Fiber Type | OM4, bend insensitive |
| Insertion Loss, typical note | Insertion loss is measured at 850 nm |
| Insertion Loss, typical | 0.5 dB |
Environmental specifications
| Operating Temperature | -40 °C to +80 °C (-40 °F to +176 °F) |
| Environmental Space | Low Smoke Zero Halogen (LSZH) |
Packaging and weights
| Cable weight | 25 kg/km | 16.799 lb/kft |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
