DFJ-1S5-U1HAN-XM
Base product: DFJ-SERIES
- Available in:
- Asia
- Australia/New Zealand
- EMEA
- Latin America
- North America

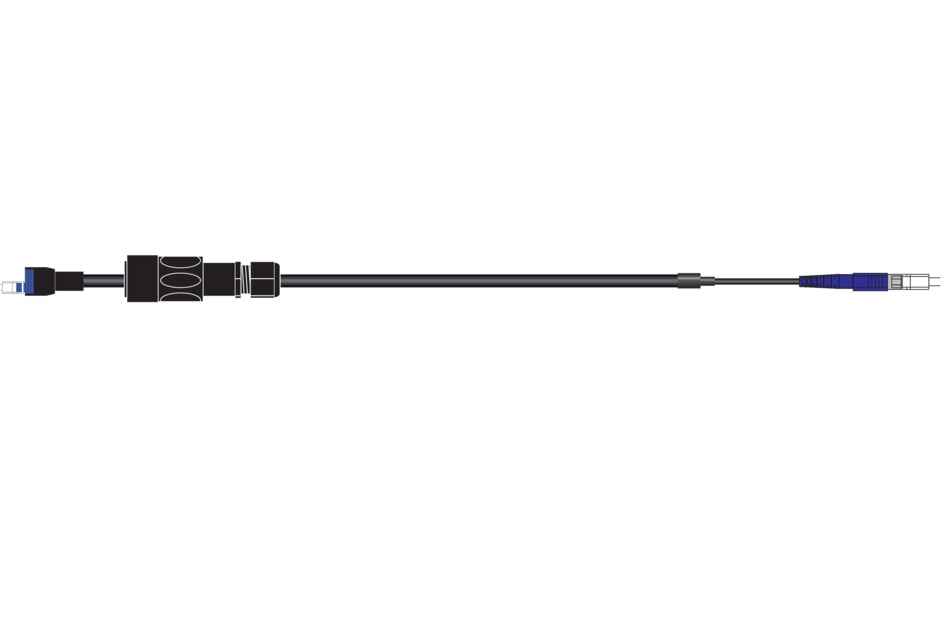

HELIAX® Discrete Fiber Jumper, Single Mode fiber, LSZH jacket cable, terminated with Uni-boot DLC at End 1, Simplex SC at End 2.
Specifications
Product classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Product Type | Wireless Fiber Cable Assemblies |
| Product Brand | ANDREW® | HELIAX® |
| Product Series | DFJ |
| Ordering Note | ANDREW® Standard Product in Europe |
General specifications
| Construction Type | Discrete fiber tail |
| Interface, Connector A | DLC/UPC |
| Interface Feature, connector A | Standard |
| Interface, Connector B | SC/UPC |
| Interface Feature, connector B | Standard |
| Jacket Color | Black |
| Total Fibers, quantity | 1 |
Dimensions
| Breakout Length, connector B | 386.842 mm | 15.23 in |
| Cable Assembly Length Range (m) | 1 – 100 |
| Diameter Over Jacket | 5 mm | 0.197 in |
Material specifications
| Jacket Material | UV resistant |
Mechanical specifications
| Minimum Bend Radius | 50 mm | 1.969 in |
| Tensile Load, long term, maximum | 70 N | 15.737 lbf |
Optical specifications
| Fiber Mode | Singlemode |
| Fiber Type | G.657.A2 |
| Insertion Loss, typical note | Insertion loss is measured at 1310 and 1550 nm |
| Insertion Loss, typical | 0.3 dB |
| Return Loss, minimum, connector B | 50 dB |
Environmental specifications
| Operating Temperature | -40 °C to +75 °C (-40 °F to +167 °F) |
| Environmental Space | Indoor/Outdoor |
| Jacket UV Resistance | UV stabilized |
Product classification
| Regional Availability | Asia | Australia/New Zealand | EMEA | Latin America | North America |
| Product Type | Wireless Fiber Cable Assemblies |
| Product Brand | ANDREW® | HELIAX® |
| Product Series | DFJ |
| Ordering Note | ANDREW® Standard Product in Europe |
General specifications
| Construction Type | Discrete fiber tail |
| Interface, Connector A | DLC/UPC |
| Interface Feature, connector A | Standard |
| Interface, Connector B | SC/UPC |
| Interface Feature, connector B | Standard |
| Jacket Color | Black |
| Total Fibers, quantity | 1 |
Dimensions
| Breakout Length, connector B | 386.842 mm | 15.23 in |
| Cable Assembly Length Range (m) | 1 – 100 |
| Diameter Over Jacket | 5 mm | 0.197 in |
Material specifications
| Jacket Material | UV resistant |
Mechanical specifications
| Minimum Bend Radius | 50 mm | 1.969 in |
| Tensile Load, long term, maximum | 70 N | 15.737 lbf |
Optical specifications
| Fiber Mode | Singlemode |
| Fiber Type | G.657.A2 |
| Insertion Loss, typical note | Insertion loss is measured at 1310 and 1550 nm |
| Insertion Loss, typical | 0.3 dB |
| Return Loss, minimum, connector B | 50 dB |
Environmental specifications
| Operating Temperature | -40 °C to +75 °C (-40 °F to +167 °F) |
| Environmental Space | Indoor/Outdoor |
| Jacket UV Resistance | UV stabilized |
