CS-PWRCN

Base product: COLD-SHRINK-SERIES

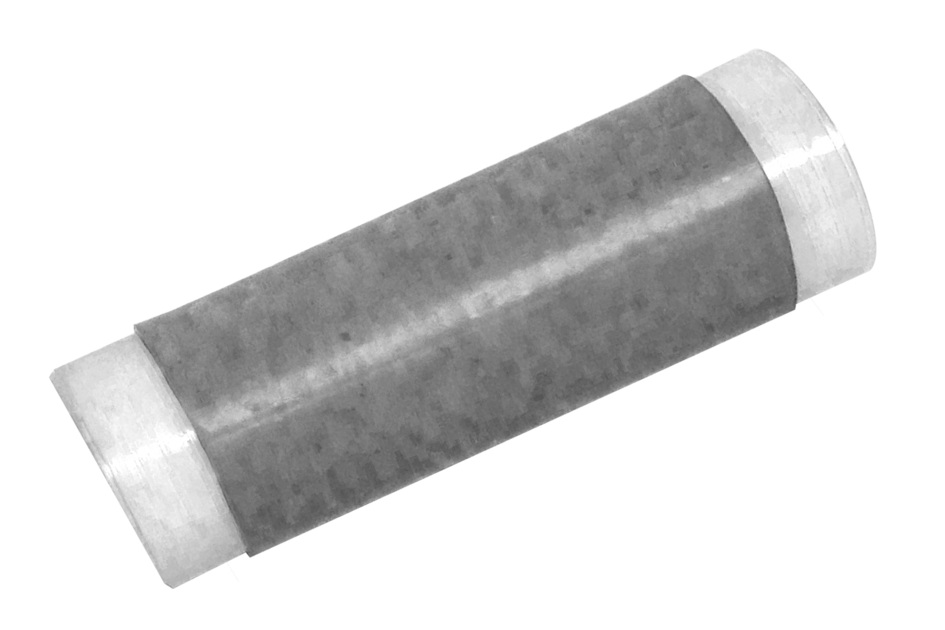

Cold shrink Kit for 0.41 in (10.4 mm) to 1.185 in (30.1 mm) product diameters

Finish making your selections or clear them to view relevant specifications.
Download specifications
Find a partner

Product classification

Product Type Cold shrink kit
Product Brand HELIAX®
Ordering Note ANDREW® standard product (Global)

General specifications

Application Protects connector from corrosion
Color Gray

Dimensions

Length 152.4 mm | 6 in
Compatible Diameter for Seal, maximum 30.1 mm | 1.185 in
Compatible Diameter for Seal, minimum 10.4 mm | 0.409 in
Inner Diameter 35 mm | 1.378 in

Material specifications

Material Type Silicone rubber

Environmental specifications

UV Resistance Test Method UV condensation reference ASTM-G-53, light source UVA 340 fluorescent lamp
UV Resistance, minimum with no degradation ≥2000 hours
Weather Resistance Test Method 04AS00-03.6.0 | IEC 60529:2001, IP67 | MIL-STD-1344A, Method 1002

Packaging and weights

Height, packed 50.8 mm | 2 in
Width, packed 50.8 mm | 2 in
Length, packed 177.8 mm | 7 in
Included One Silicone Rubber Tube
Packaging quantity 1
Weight, gross 0.08 kg | 0.176 lb

Regulatory compliance/certifications

Agency Classification
CHINA-ROHS Below maximum concentration value
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
UK-ROHS Compliant
REACH-SVHC Compliant as per SVHC revision on www.andrew.com/ProductCompliance
