SCE-114
Base product: ENTRY-PANEL-SERIES

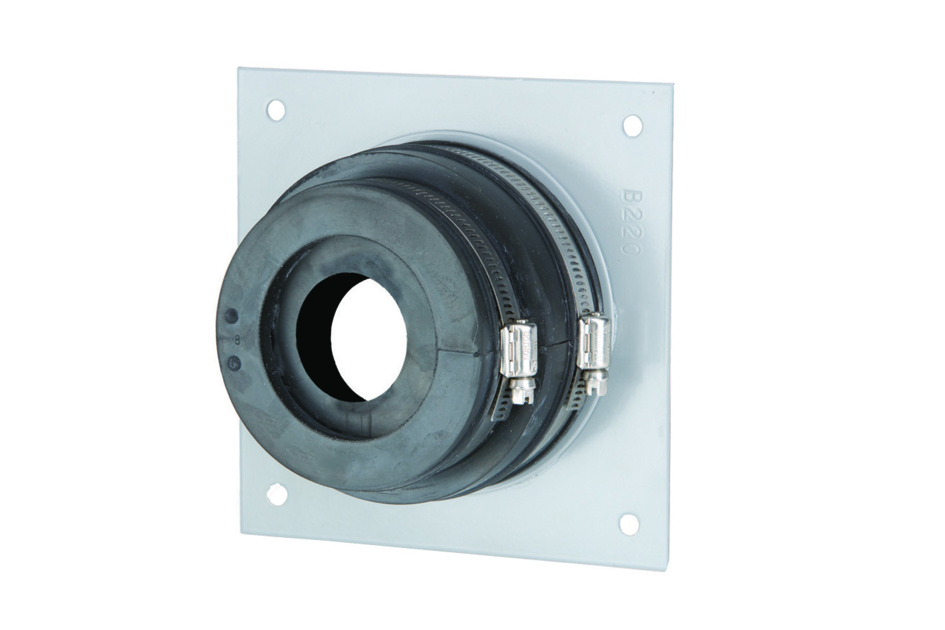

4" Port Entrance Panel 5.5" x 5.5", Includes Single Entrance Assembly for 1-1/4" Coaxial Cable
Specifications
Product classification
| Product Type | Entrance panel |
| Product Brand | HELIAX® |
| Ordering Note | ANDREW® non-standard product |
General specifications
| Color | Gray |
| Entry Panel Port Size | 101.6 mm | 4 in |
| Number of Ports | 1 |
| Panel Type | Single |
Dimensions
| Height | 139.700 mm | 5.5 in |
| Width | 139.700 mm | 5.5 in |
| Nominal Size | 1-1/4 in |
Material specifications
| Material Type | Aluminum |
Environmental specifications
| Weather Resistance Test Method | 04AS00-03.9.0 | IEC 60529:2001, IP66 |
Packaging and weights
| Height, packed | 381 mm | 15 in |
| Width, packed | 76.2 mm | 3 in |
| Length, packed | 381 mm | 15 in |
| Included | Boot | Hardware | Port |
| Packaging quantity | 1 |
| Weight, gross | 1.1 kg | 2.425 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
Product classification
| Product Type | Entrance panel |
| Product Brand | HELIAX® |
| Ordering Note | ANDREW® non-standard product |
General specifications
| Color | Gray |
| Entry Panel Port Size | 101.6 mm | 4 in |
| Number of Ports | 1 |
| Panel Type | Single |
Dimensions
| Height | 139.700 mm | 5.5 in |
| Width | 139.700 mm | 5.5 in |
| Nominal Size | 1-1/4 in |
Material specifications
| Material Type | Aluminum |
Environmental specifications
| Weather Resistance Test Method | 04AS00-03.9.0 | IEC 60529:2001, IP66 |
Packaging and weights
| Height, packed | 381 mm | 15 in |
| Width, packed | 76.2 mm | 3 in |
| Length, packed | 381 mm | 15 in |
| Included | Boot | Hardware | Port |
| Packaging quantity | 1 |
| Weight, gross | 1.1 kg | 2.425 lb |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
