UA-3
Base product: ANGLE-ADAPTER-SERIES

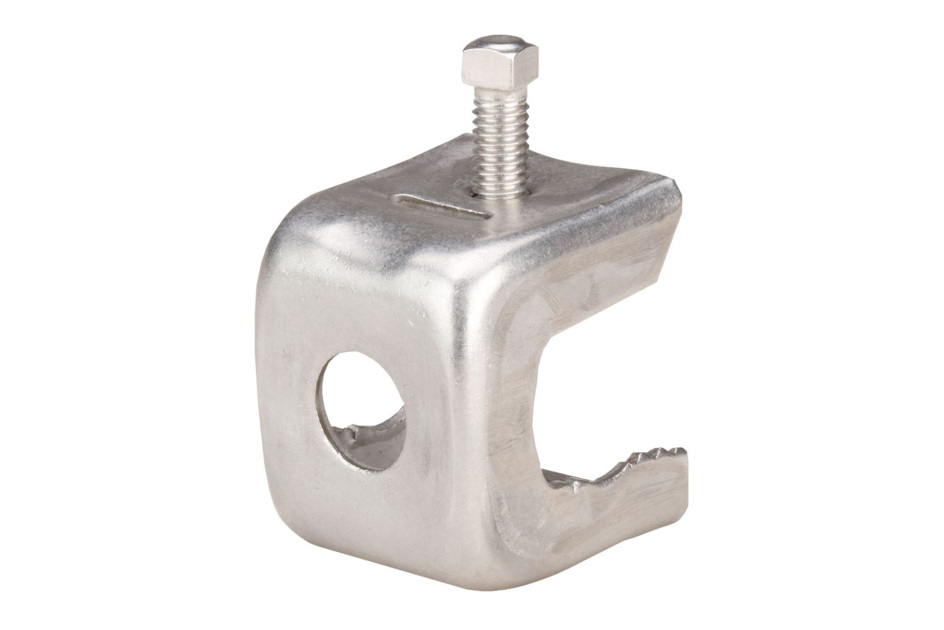

Angle Adapter, universal, snap-in, 3/4 in through hole
Specifications
Product classification
| Product Type | Angle adapter |
| Product Brand | HELIAX® |
| Ordering Note | ANDREW® standard product (Global) |
General specifications
| Adapter Type | Angle adapter |
| Mounting | 3/4 in through hole |
Dimensions
| Inside Width | 22.352 mm | 0.88 in |
| Outside Width | 57.15 mm | 2.25 in |
| Inside Length | 25.4 mm | 1 in |
| Outside Length | 50.8 mm | 2 in |
| Material Thickness | 2.667 mm | 0.105 in |
Material specifications
| Material Type | Stainless steel |
Mechanical specifications
| Installation Torque, maximum | 20.337 N-m | 15 ft lb |
| Installation Torque, minimum | 14.914 N-m | 11 ft lb |
| Maximum Loading | Triple stack, 1-5/8 in cable |
Packaging and weights
| Height, packed | 25 cm | 9.843 in |
| Width, packed | 14 cm | 5.512 in |
| Length, packed | 12 cm | 4.724 in |
| Packaging quantity | 10 |
| Weight, gross | 2.32 kg | 5.115 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
