ARA-22
Base product: STAND-OFF-ADAPTER-SERIES

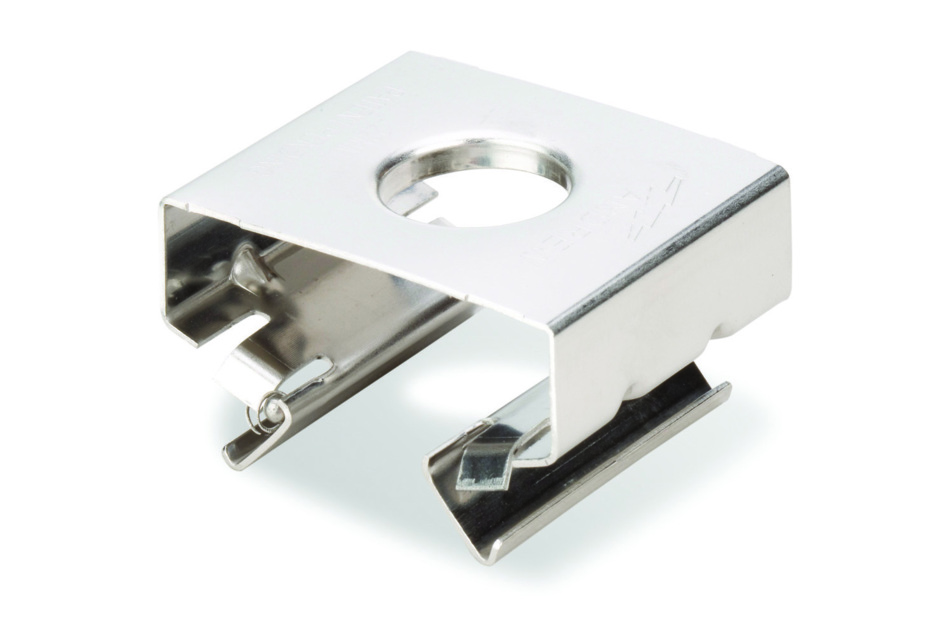

Anchor Rail Adapter, 22 mm
Specifications
Product classification
| Product Type | Anchor |
| Product Brand | HELIAX® |
| Ordering Note | ANDREW® standard product (Global) |
General specifications
| Adapter Type | Adapter |
| Mounting | 3/4 in through hole |
Dimensions
| Outside Width | 1285.24 mm | 50.6 in |
| Outside Length | 1178.56 mm | 46.4 in |
| Material Thickness | 2.591 mm | 0.102 in |
Material specifications
| Material Type | Stainless steel |
Mechanical specifications
| Maximum Loading | Double stack, 1-5/8 in cable |
Packaging and weights
| Height, packed | 14 cm | 5.512 in |
| Width, packed | 14 cm | 5.512 in |
| Length, packed | 8 cm | 3.15 in |
| Packaging quantity | 10 |
| Weight, gross | 0.97 kg | 2.138 lb |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
