294571
Base product: ANGLE-ADAPTER-SERIES

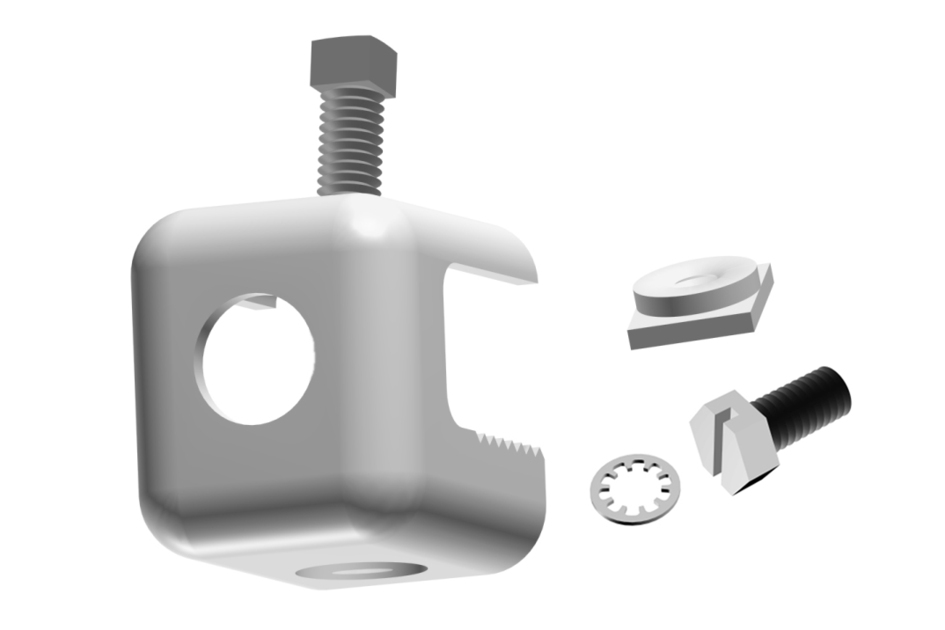

Angle Adapter, snap-in, 3/4 in through hole (no insert included)
Specifications
Product classification
| Product Type | Angle adapter |
| Product Brand | I-Line |
| Ordering Note | ANDREW® non-standard product |
General specifications
| Adapter Type | Angle adapter |
| Mounting | 3/4 in through hole |
Dimensions
| Inside Width | 16.002 mm | 0.63 in |
| Outside Width | 38.1 mm | 1.5 in |
| Inside Length | 16.002 mm | 0.63 in |
| Outside Length | 46.99 mm | 1.85 in |
| Material Thickness | 2.972 mm | 0.117 in |
Material specifications
| Material Type | Stainless steel |
Mechanical specifications
| Installation Torque, maximum | 17.626 N-m | 13 ft lb |
| Installation Torque, minimum | 14.914 N-m | 11 ft lb |
| Maximum Loading | Double stack, 1-5/8 in cable |
Packaging and weights
| Height, packed | 17 cm | 6.693 in |
| Width, packed | 13 cm | 5.118 in |
| Length, packed | 10 cm | 3.937 in |
| Packaging quantity | 10 |
| Weight, gross | 1.59 kg | 3.505 lb |
Regulatory compliance/certifications
| Agency | Classification |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
