294561
Base product: STAND-OFF-ADAPTER-SERIES

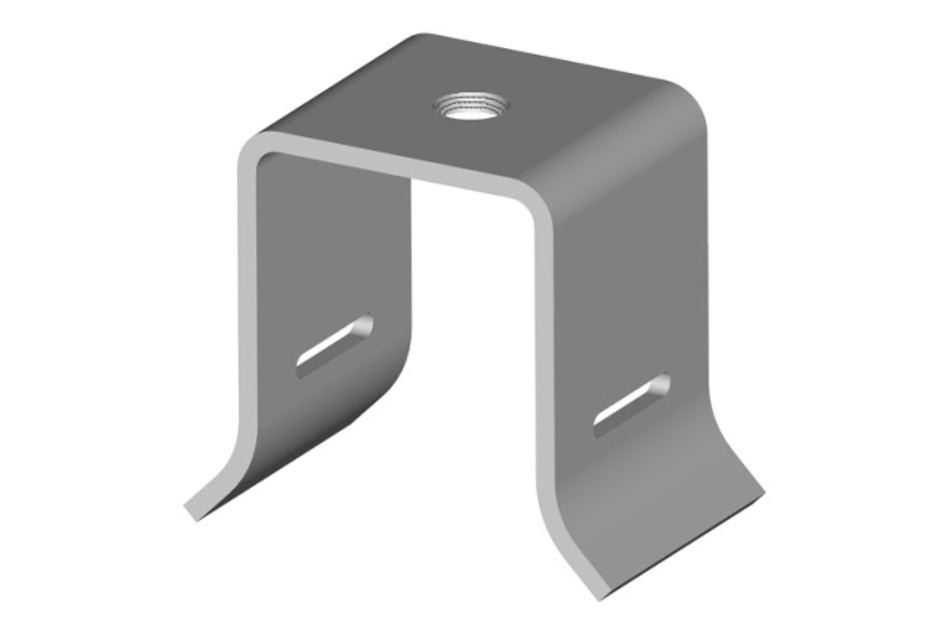

Stand-off Adapter, 3/8 in tapped hole. Provides 2 inches of standoff from round member.
Specifications
Product classification
| Product Type | Stand-off mount |
| Product Brand | I-Line |
| Ordering Note | ANDREW® non-standard product |
General specifications
| Adapter Type | Stand-off adapter |
| Mounting | 3/8 in tapped hole |
Dimensions
| Inside Width | 44.45 mm | 1.75 in |
| Outside Width | 57.15 mm | 2.25 in |
| Inside Length | 60.452 mm | 2.38 in |
| Outside Length | 38.1 mm | 1.5 in |
| Material Thickness | 2.667 mm | 0.105 in |
Material specifications
| Material Type | Stainless steel |
Mechanical specifications
| Installation Torque, maximum | 20.337 N-m | 15 ft lb |
| Installation Torque, minimum | 14.914 N-m | 11 ft lb |
| Maximum Loading | Double stack, 1-5/8 in cable |
Packaging and weights
| Height, packed | 17 cm | 6.693 in |
| Width, packed | 13 cm | 5.118 in |
| Length, packed | 10 cm | 3.937 in |
| Packaging quantity | 10 |
| Weight, gross | 1.7 kg | 3.748 lb |
Regulatory compliance/certifications
| Agency | Classification |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
Product classification
| Product Type | Stand-off mount |
| Product Brand | I-Line |
| Ordering Note | ANDREW® non-standard product |
General specifications
| Adapter Type | Stand-off adapter |
| Mounting | 3/8 in tapped hole |
Dimensions
| Inside Width | 44.45 mm | 1.75 in |
| Outside Width | 57.15 mm | 2.25 in |
| Inside Length | 60.452 mm | 2.38 in |
| Outside Length | 38.1 mm | 1.5 in |
| Material Thickness | 2.667 mm | 0.105 in |
Material specifications
| Material Type | Stainless steel |
Mechanical specifications
| Installation Torque, maximum | 20.337 N-m | 15 ft lb |
| Installation Torque, minimum | 14.914 N-m | 11 ft lb |
| Maximum Loading | Double stack, 1-5/8 in cable |
Packaging and weights
| Height, packed | 17 cm | 6.693 in |
| Width, packed | 13 cm | 5.118 in |
| Length, packed | 10 cm | 3.937 in |
| Packaging quantity | 10 |
| Weight, gross | 1.7 kg | 3.748 lb |
Regulatory compliance/certifications
| Agency | Classification |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
