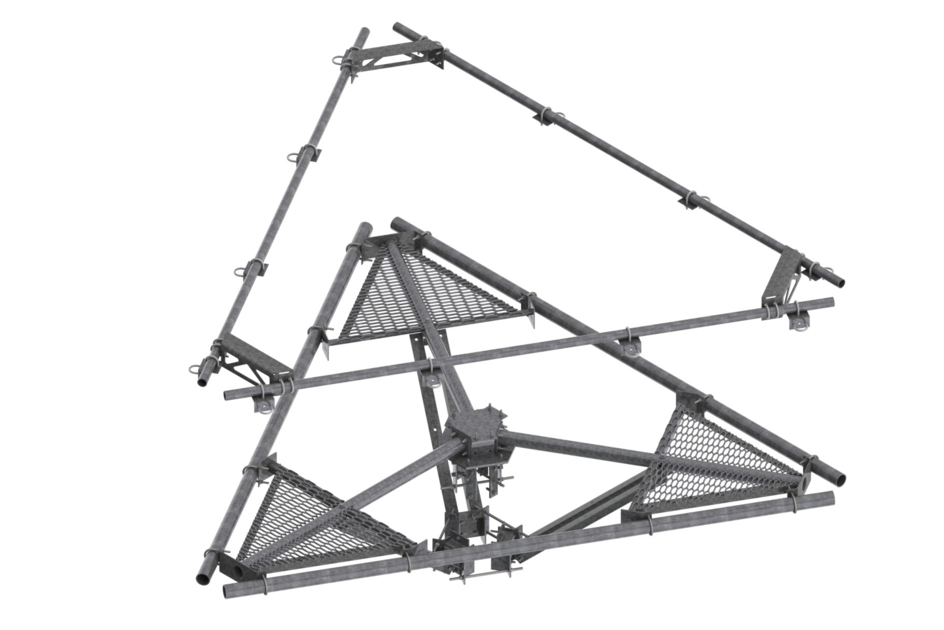

WP-TH12-B
Wood Pole Top Hat, 12 ft 6 in face, 7 in to 14 in wood poles
Specifications
Product classification
| Product Type | Wood pole mount |
General specifications
| Mounting | Wood pole, 177.8–355.6 mm (7–14 in) OD |
| Pipe, quantity | 0 |
| Sectors, quantity | 3 |
Dimensions
| Height | 355.6 mm | 14 in |
| Face Width | 3.81 m | 12.5 ft |
| Width | 3810 mm | 150 in |
| Length | 914.4 mm | 36 in |
| Mounting Diameter, maximum | 355.6 mm | 14 in |
| Mounting Diameter, minimum | 177.8 mm | 7 in |
| Pipe Outer Diameter | 60.96 mm | 2.4 in |
| Stand-off Distance | 914.4 mm | 36 in |
| Mounting Circumference, maximum | 353.06 mm | 13.9 in |
| Mounting Circumference, minimum | 175.26 mm | 6.9 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating | For Specifications, please contact your local ANDREW representative |
Environmental specifications
| Man Rating | 250 lb vertical man load at 15 mph (BWS) |
Packaging and weights
| Included | Platform | Ring mount |
| Packaging quantity | 1 |
| Weight, net | 771.016 kg | 1699.8 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Above maximum concentration value |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
Product classification
| Product Type | Wood pole mount |
General specifications
| Mounting | Wood pole, 177.8–355.6 mm (7–14 in) OD |
| Pipe, quantity | 0 |
| Sectors, quantity | 3 |
Dimensions
| Height | 355.6 mm | 14 in |
| Face Width | 3.81 m | 12.5 ft |
| Width | 3810 mm | 150 in |
| Length | 914.4 mm | 36 in |
| Mounting Diameter, maximum | 355.6 mm | 14 in |
| Mounting Diameter, minimum | 177.8 mm | 7 in |
| Pipe Outer Diameter | 60.96 mm | 2.4 in |
| Stand-off Distance | 914.4 mm | 36 in |
| Mounting Circumference, maximum | 353.06 mm | 13.9 in |
| Mounting Circumference, minimum | 175.26 mm | 6.9 in |
Material specifications
| Material Type | Hot dip galvanized steel |
Mechanical specifications
| Wind Rating | For Specifications, please contact your local ANDREW representative |
Environmental specifications
| Man Rating | 250 lb vertical man load at 15 mph (BWS) |
Packaging and weights
| Included | Platform | Ring mount |
| Packaging quantity | 1 |
| Weight, net | 771.016 kg | 1699.8 lb |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Above maximum concentration value |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
