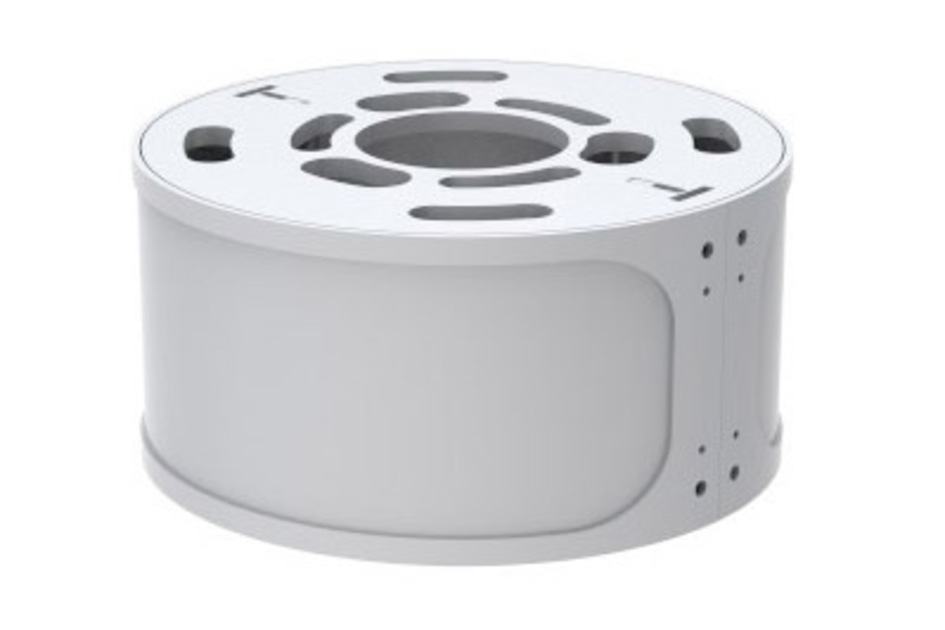

860649104-XX | Smart Meter Pole Top

The solution is intended to house and conceal a Cimcon smart meter designed to mount directly below a 12 inch Pole Top Module.

Finish making your selections or clear them to view relevant specifications.
Download specifications
Find a partner
Features and benefits
Application
This solution is specifically intended for use with PG&E approved Cimcon smart meters.
• As-built, accepts (1) Cimcon iSLC-3100-7P Smart Meter
• As-built, accepts (1) ANSI C136.41 compliant TE 2213362-4, 7- position dimming receptacle
• Compatible with standard Pole Top Concealment mounts which mount multi-band and multi-port antennas from multiple antenna vendors.
• Variable pole diameter mounting kits available to mount to existing wood and metal structures
• Multiple color options available
  • Variable pole diameter mounting kits available to mount to existing structures

Product classification

Product Type Pole top
Product Brand Metro Cell
Ordering Note ANDREW® standard product with terms
Warranty One year

General specifications

Antennas Included None
Color Light Gray (RAL 7035)
Color Options Beige-Grey (RAL 7006) | Black | Brown (RAL 8014) | Faux Concrete | Green (RAL 6005) | Metallic Silver | Pure White
Cooling Passive Cooling
Mounting Options Non-tapered poles | Tapered poles | Wood poles
Radios Included None

Dimensions

Height 152.400 mm | 6 in
Width 304.8 mm | 12 in
Depth 304.8 mm | 12 in
Mounting Bolt Circle Diameter 142.748 mm | 5.62 in | 241.3 mm | 9.5 in

Material specifications

Finish Aluminum Chromate
Finish Concealment Covers Powder coated
Material Type Aluminum | Steel

Environmental specifications

Thermal Compliance GR-487

Packaging and weights

Volume 0.011 m³ | 0.4 ft³

Product classification

Product Type Pole top
Product Brand Metro Cell
Ordering Note ANDREW® standard product with terms
Warranty One year

General specifications

Antennas Included None
Color Light Gray (RAL 7035)
Color Options Beige-Grey (RAL 7006) | Black | Brown (RAL 8014) | Faux Concrete | Green (RAL 6005) | Metallic Silver | Pure White
Cooling Passive Cooling
Mounting Options Non-tapered poles | Tapered poles | Wood poles
Radios Included None

Dimensions

Height 152.400 mm | 6 in
Width 304.8 mm | 12 in
Depth 304.8 mm | 12 in
Mounting Bolt Circle Diameter 142.748 mm | 5.62 in | 241.3 mm | 9.5 in

Material specifications

Finish Aluminum Chromate
Finish Concealment Covers Powder coated
Material Type Aluminum | Steel

Environmental specifications

Thermal Compliance GR-487

Packaging and weights

Volume 0.011 m³ | 0.4 ft³
