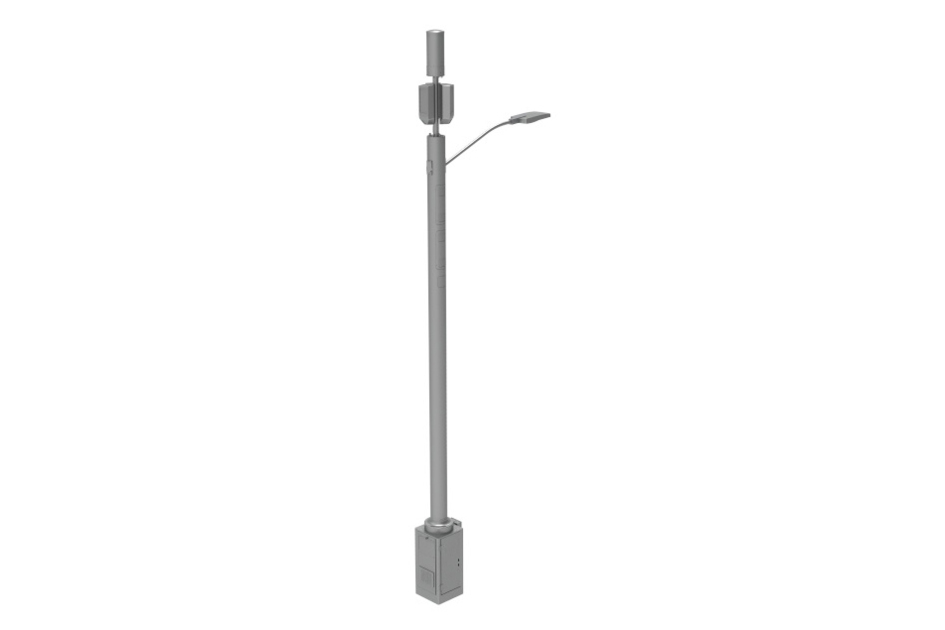

760249191 | 26" Pole Cab with 12" Integrated Pole Shaft
Pole Cab with an Integrated Pole supporting 4G/5G/mmWave technologies as well as smart devices
Features and benefits
Also available with a 30"x30" base for additional capacity
-Multi Carrier capable
-Multi Carrier capable
- Intended to house and conceal multiple radios and any other wireless infrastructure equipment in a cabinet at the base of the pole
- Flexible configuration accepts low to high-power single or dual band radios, Integrated AC load center/OVP and Disconnect and integrated AC/DC rectifier options
Specifications
Product classification
| Product Type | Pole cab |
| Product Brand | Metro Cell |
| Ordering Note | ANDREW® standard product with terms |
| Warranty | One year |
General specifications
| Antenna Compatibility, ANDREW | ANDREW Canister Antennas |
| Antenna Compatibility, Other Vendors | ACE | AMPHENOL | GALTRONICS | GAMMA NU | JMA | KATHREIN | KMW | ROSENBERGER |
| Antennas Included | None |
| Color | Light Gray (RAL 7035) |
| Color Options | Beige-Grey (RAL 7006) | Black (RAL 9005) | Black Green (RAL 6012) | Brown (RAL 8014) | Faux Concrete | Green (RAL 6005) | Metallic Silver | Umbra Grey (RAL 7022) |
| Compatible Foundation Type | Poured Concrete | Pre-Cast Concrete |
| Compatible Smart Devices | Cameras | Digital Signage | Emergency Call Station | Environmental Monitoring | Security Lighting | WIFI |
| Cooling | Fan Cooling |
| Power Supply Compatibility | DELTA 2.0 | PSU-AC-08 |
| Radio Compatibility, Ericsson | (1) 8843/4449 dual-band high power radio and (2) PSU-AC08 | 1281 | 220x | 440x | 4426 | 4478 | 6701 | Power Distribution |
| Radio Compatibility, Nokia | AEUB | AEWB | AEWD/AEWE | AHFB | AHFIA | AHFIB | AHIA | AHIB | AHLBA | AHLBBA | AZRB | Airscale micro |
| Radio Compatibility Samsung | AT1K01 | AT1K02 | AT1K0X | Diplexer | HT1K01 | Power Distribution | RF4402D-D1A | RFV01U-D1A | RFV01U-D2A | RT2201-46A | RT4401-48A |
| Radios Included | None |
Dimensions
| Height Note | 4 ft tall Equipment Cabinet Base |
| Pole Height Options | 10.668 m | 35 ft |
| Width | 660.400 mm | 26 in |
| Depth | 660.4 mm | 26 in |
| Depth Note | Square |
| Pole Diameter | 323.850 mm | 12.75 in |
Electrical specifications
| Power/Fiber Input | AC load center with OVP and disconnect |
Material specifications
| Finish Aluminum | Chromate |
| Finish Concealment Covers | Powder coated |
| Material Type | Galvanized steel |
Environmental specifications
| Thermal Compliance | GR-487 |
Product classification
| Product Type | Pole cab |
| Product Brand | Metro Cell |
| Ordering Note | ANDREW® standard product with terms |
| Warranty | One year |
General specifications
| Antenna Compatibility, ANDREW | ANDREW Canister Antennas |
| Antenna Compatibility, Other Vendors | ACE | AMPHENOL | GALTRONICS | GAMMA NU | JMA | KATHREIN | KMW | ROSENBERGER |
| Antennas Included | None |
| Color | Light Gray (RAL 7035) |
| Color Options | Beige-Grey (RAL 7006) | Black (RAL 9005) | Black Green (RAL 6012) | Brown (RAL 8014) | Faux Concrete | Green (RAL 6005) | Metallic Silver | Umbra Grey (RAL 7022) |
| Compatible Foundation Type | Poured Concrete | Pre-Cast Concrete |
| Compatible Smart Devices | Cameras | Digital Signage | Emergency Call Station | Environmental Monitoring | Security Lighting | WIFI |
| Cooling | Fan Cooling |
| Power Supply Compatibility | DELTA 2.0 | PSU-AC-08 |
| Radio Compatibility, Ericsson | (1) 8843/4449 dual-band high power radio and (2) PSU-AC08 | 1281 | 220x | 440x | 4426 | 4478 | 6701 | Power Distribution |
| Radio Compatibility, Nokia | AEUB | AEWB | AEWD/AEWE | AHFB | AHFIA | AHFIB | AHIA | AHIB | AHLBA | AHLBBA | AZRB | Airscale micro |
| Radio Compatibility Samsung | AT1K01 | AT1K02 | AT1K0X | Diplexer | HT1K01 | Power Distribution | RF4402D-D1A | RFV01U-D1A | RFV01U-D2A | RT2201-46A | RT4401-48A |
| Radios Included | None |
Dimensions
| Height Note | 4 ft tall Equipment Cabinet Base |
| Pole Height Options | 10.668 m | 35 ft |
| Width | 660.400 mm | 26 in |
| Depth | 660.4 mm | 26 in |
| Depth Note | Square |
| Pole Diameter | 323.850 mm | 12.75 in |
Electrical specifications
| Power/Fiber Input | AC load center with OVP and disconnect |
Material specifications
| Finish Aluminum | Chromate |
| Finish Concealment Covers | Powder coated |
| Material Type | Galvanized steel |
Environmental specifications
| Thermal Compliance | GR-487 |
