ATGK-CABLE

RET Control Cable Grounding Kit

Finish making your selections or clear them to view relevant specifications.
Download specifications
Find a partner
Features and benefits
  • Used for grounding control cables at recommended 60-meter intervals
  • Grounds RET cable at connectors, eliminating need to cut into cable jacket
  • Includes ground cable for connecting to the main ground buss
  • Easily mounts to a pole

Product classification

Product Type RET grounding kit

Dimensions

Height 101.6 mm | 4 in
Width 61 mm | 2.402 in
Depth 61 mm | 2.402 in
Grounding Cable Length 609.6 mm | 24 in
Grounding Cable Nominal Diameter 16 mm | 0.63 in

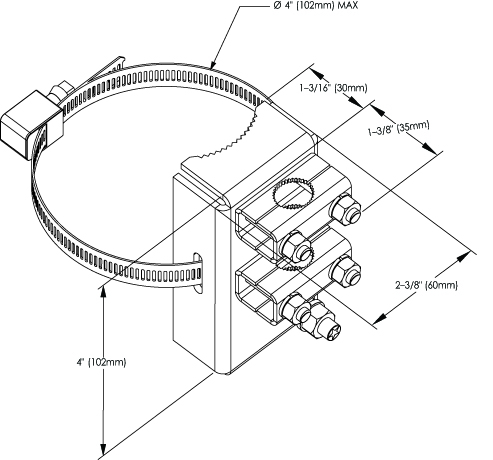

Dimension drawing

Click on image to enlarge.

Electrical specifications

Lightning Surge Current 16 kA
Lightning Surge Current Waveform 10/350 waveform

Packaging and weights

Included Grounding bracket assembly with band clamp | Grounding cable with lugs
Weight, net 0.3 kg | 0.661 lb

Regulatory compliance/certifications

Agency Classification
CHINA-ROHS Below maximum concentration value
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
UK-ROHS Compliant
REACH-SVHC Compliant as per SVHC revision on www.andrew.com/ProductCompliance

Product classification

Product Type RET grounding kit

Dimensions

Height 101.6 mm | 4 in
Width 61 mm | 2.402 in
Depth 61 mm | 2.402 in
Grounding Cable Length 609.6 mm | 24 in
Grounding Cable Nominal Diameter 16 mm | 0.63 in

Electrical specifications

Lightning Surge Current 16 kA
Lightning Surge Current Waveform 10/350 waveform

Packaging and weights

Included Grounding bracket assembly with band clamp | Grounding cable with lugs
Weight, net 0.3 kg | 0.661 lb

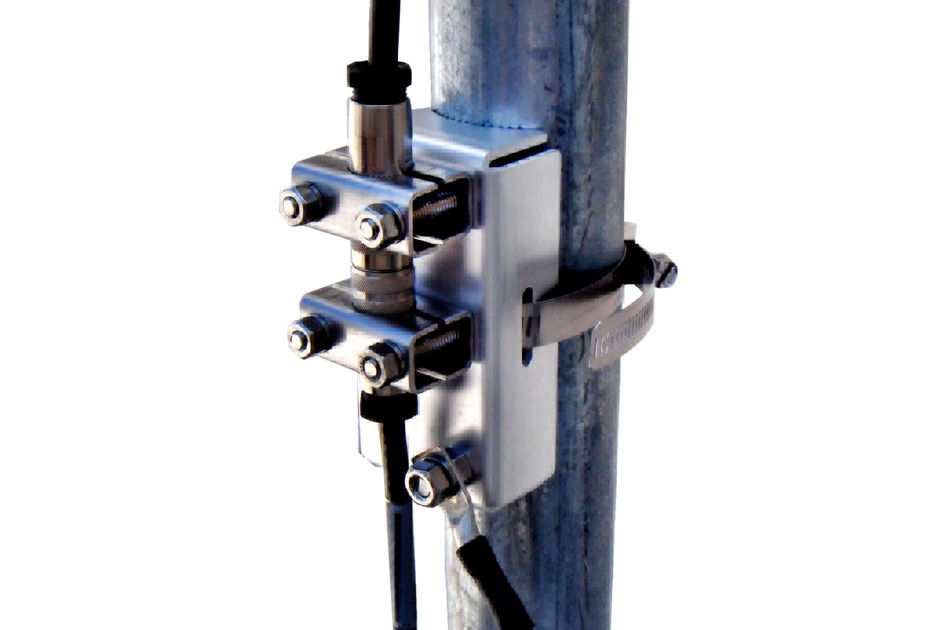

Click on image to enlarge.

Regulatory compliance/certifications

Agency Classification
CHINA-ROHS Below maximum concentration value
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant
UK-ROHS Compliant
REACH-SVHC Compliant as per SVHC revision on www.andrew.com/ProductCompliance
