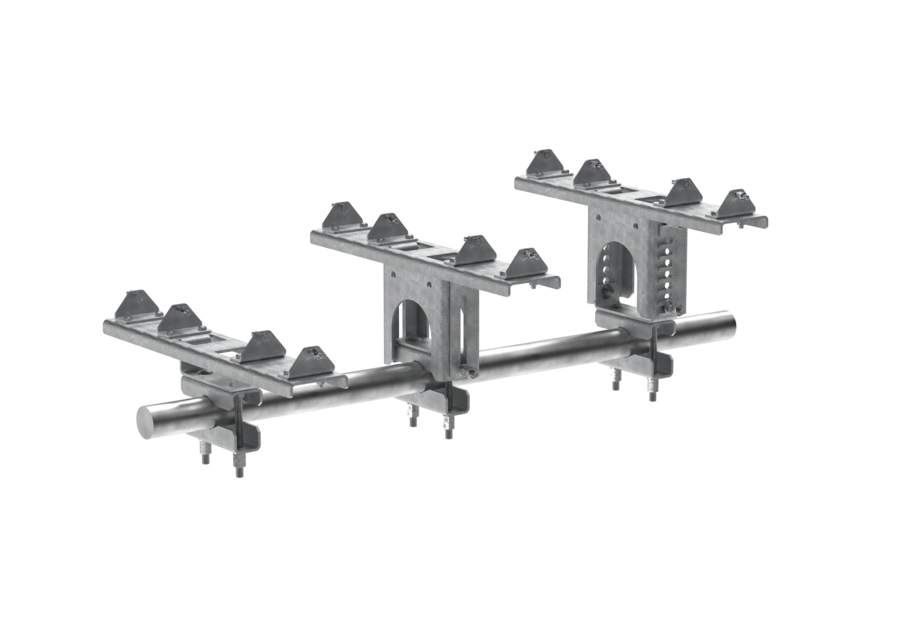

BSAMNT-SBS-2-3
Side-By-Side Mounting Kit to mount two antennas on a pipe with 2.375 - 4.5 inch (60 – 115 mm) diameter
Features and benefits
- 4x4 MIMO capability at both UMTS and LTE band for faster data throughput
- Ensures consistent distance between the antennas for each site (2 inches / 50mm)
- Forces both antennas to point to the same boresight direction
Specifications
Product classification
| Product Type | Side mounting kit |
General specifications
| Application | Outdoor |
| Color | Silver |
Dimensions
| Compatible Diameter, maximum | 114.3 mm | 4.5 in |
| Compatible Diameter, minimum | 61 mm | 2.402 in |
| Weight, net | 49.9 kg | 110.011 lb |
Material specifications
| Material Type | Galvanized steel |
Packaging and weights
| Included | Brackets | Hardware |
| Packaging quantity | 1 |
| Weight, gross | 52.4 kg | 115.522 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
Product classification
| Product Type | Side mounting kit |
General specifications
| Application | Outdoor |
| Color | Silver |
Dimensions
| Compatible Diameter, maximum | 114.3 mm | 4.5 in |
| Compatible Diameter, minimum | 61 mm | 2.402 in |
| Weight, net | 49.9 kg | 110.011 lb |
Material specifications
| Material Type | Galvanized steel |
Packaging and weights
| Included | Brackets | Hardware |
| Packaging quantity | 1 |
| Weight, gross | 52.4 kg | 115.522 lb |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
