VV-65A-R1B
4-port sector antenna, 4x 1695–2690 MHz, 65° HPBW, 1x RET and 1x SBT, the two highband arrays utilize a common tilt.
Features and benefits
- The RET interface comprises one pair of AISG input/output ports
Specifications
General specifications
| Antenna Type | Sector |
| Band | Single band |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | PVC, UV resistant |

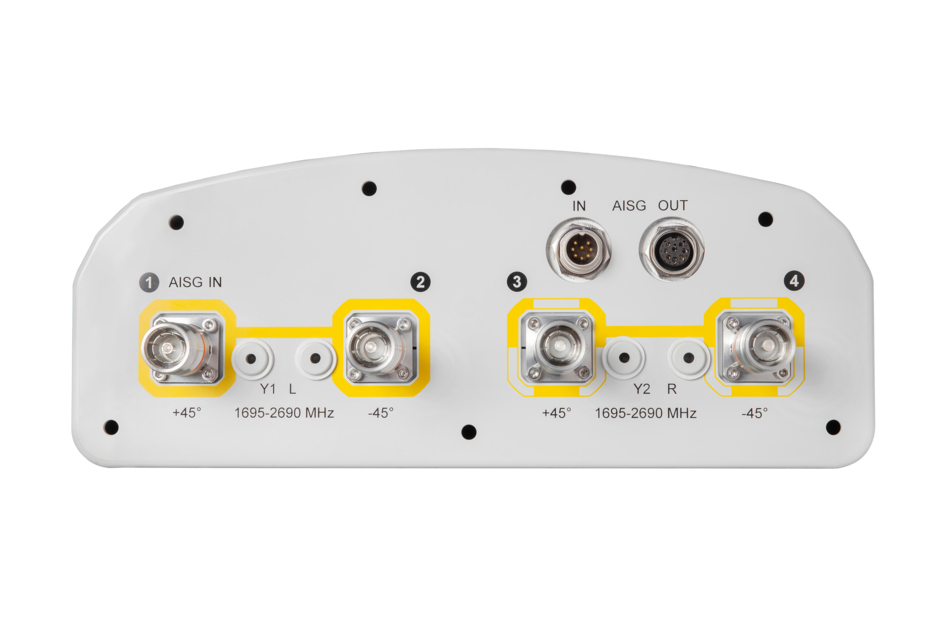

| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 4 |
| RF Connector Quantity, mid band | 0 |
| RF Connector Quantity, low band | 0 |
| RF Connector Quantity, total | 4 |
Remote electrical tilt (ret) information
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 1 female | 1 male |
| Input Voltage | 10–30 Vdc |
| Internal Bias Tee | Port 1 |
| Internal RET | High band (1) |
| Power Consumption, idle state, maximum | 1 W |
| Power Consumption, normal conditions, maximum | 10 W |
| Protocol | 3GPP/AISG 2.0 (Single RET) |
Dimensions
| Width | 305 mm | 12.008 in |
| Depth | 118 mm | 4.646 in |
| Length | 1390 mm | 54.724 in |
| Net Weight, without mounting kit | 11.2 kg | 24.692 lb |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 1695 – 2690 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 450 W @ 50 °C |
Electrical specifications
| Frequency Band, MHz | 1695–1990 | 1920–2200 | 2300–2500 | 2490–2690 |
| Gain, dBi | 17.7 | 18.2 | 18.5 | 18.6 |
| Beamwidth, Horizontal, degrees | 66 | 66 | 63 | 62 |
| Beamwidth, Vertical, degrees | 6.7 | 6.1 | 5.4 | 5.2 |
| Beam Tilt, degrees | 0–12 | 0–12 | 0–12 | 0–12 |
| USLS (First Lobe), dB | 17 | 19 | 22 | 22 |
| Front-to-Back Ratio at 180°, dB | 31 | 32 | 29 | 31 |
| CPR at Boresight, dB | 17 | 19 | 21 | 20 |
| Isolation, Cross Polarization, dB | 30 | 30 | 30 | 30 |
| Isolation, Inter-band, dB | 28 | 28 | 28 | 28 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 | -153 | -153 |
| Input Power per Port at 50°C, maximum, watts | 300 | 300 | 300 | 250 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 494.0 N @ 150 km/h (111.1 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 102.0 N @ 150 km/h (22.9 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 598.0 N @ 150 km/h (134.4 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and weights
| Width, packed | 413 mm | 16.26 in |
| Depth, packed | 249 mm | 9.803 in |
| Length, packed | 1525 mm | 60.039 in |
| Weight, gross | 19.5 kg | 42.99 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Above maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant/Exempted |
