V4SSPP-360S-F
16-port small cell antenna, 8 x 1695-2690, 4 x 3300-4000, 4 x 5150-5925 MHz, 360° Horizontal Beamwidth, fixed tilt.
Features and benefits
- Broadband Mid Band arrays (AWS/PCS/WCS/Band 41) with 4T4R (4X MIMO) capability
- Broadband performance – optimized for CBRS and C-bands
Specifications
General specifications
| Antenna Type | Small Cell |
| Band | Multiband |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | ASA, UV stabilized |
| Radiator Material | Low loss circuit board |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 16 |
| RF Connector Quantity, mid band | 0 |
| RF Connector Quantity, low band | 0 |
| RF Connector Quantity, total | 16 |
Dimensions
| Width | 305 mm | 12.008 in |
| Depth | 305 mm | 12.008 in |
| Length | 620 mm | 24.409 in |
| Net Weight, antenna only | 13.3 kg | 29.321 lb |

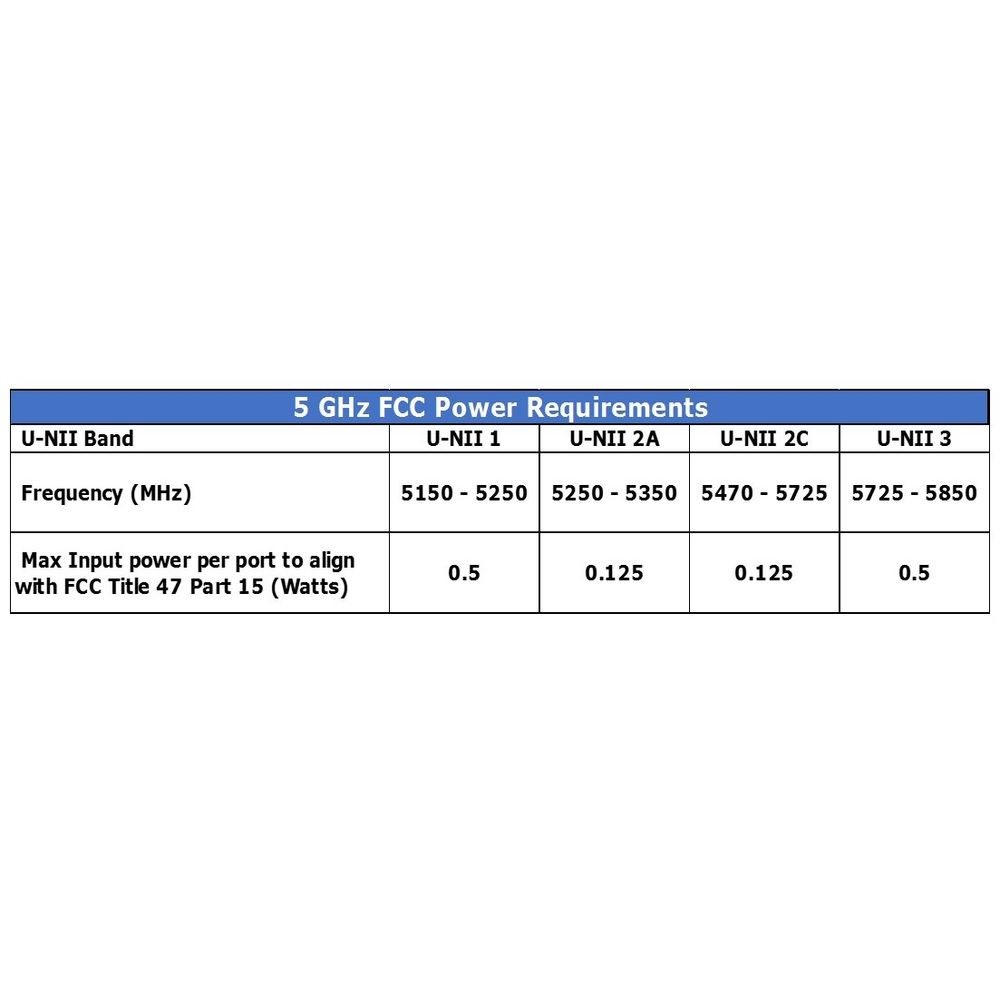

5 ghz port power table
| Click on image to enlarge. |

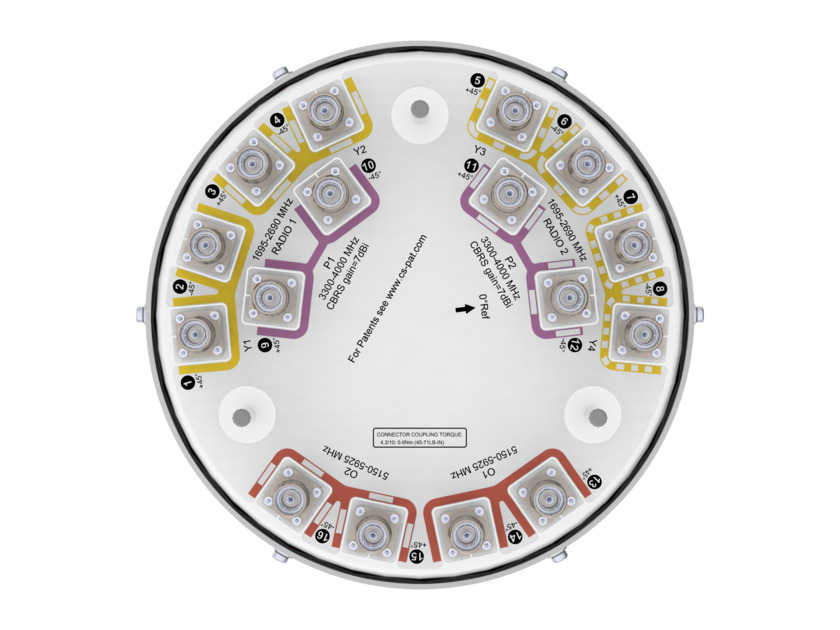

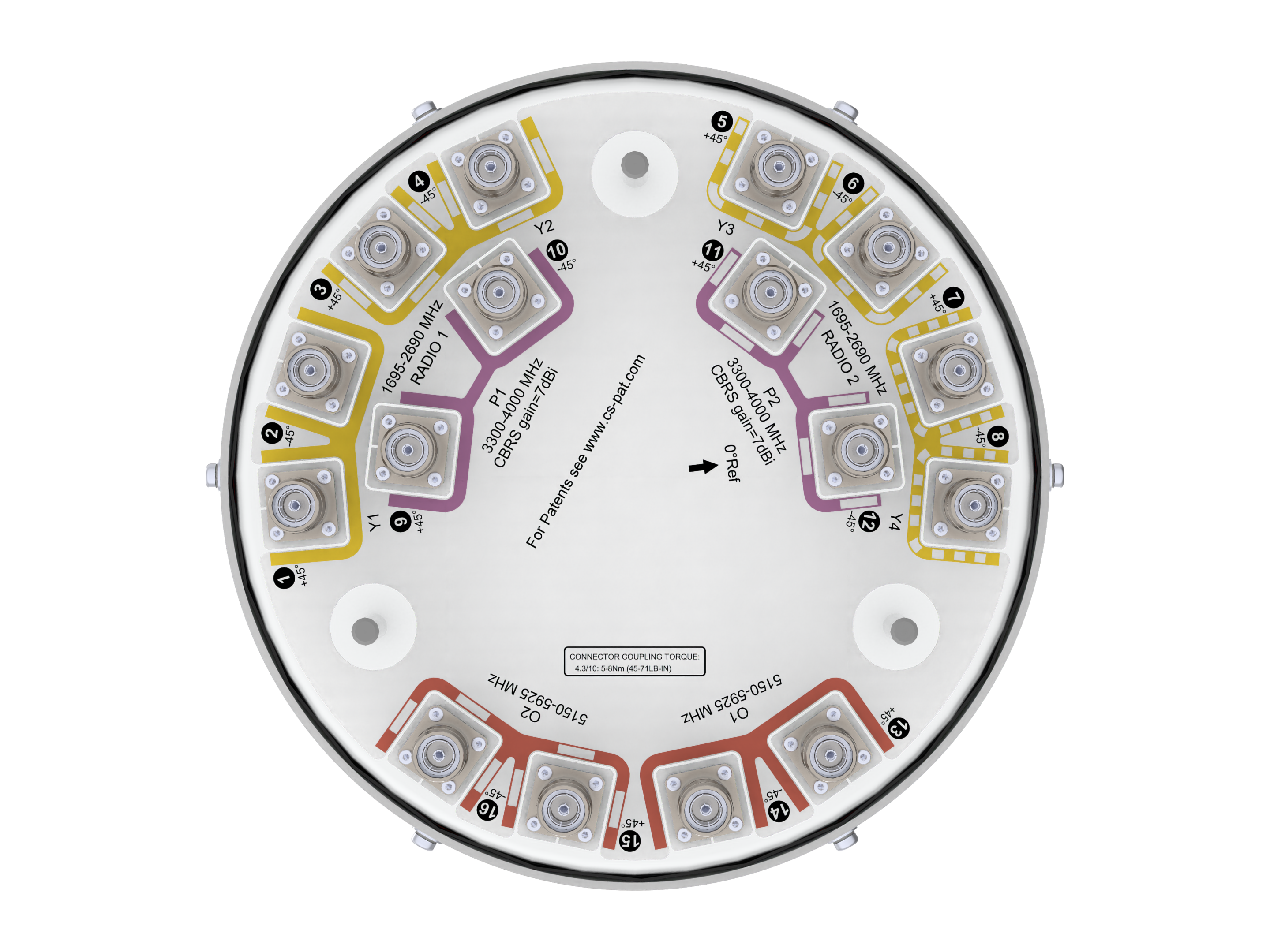

Port configuration
| Click on image to enlarge. |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 1695 – 2690 MHz | 3300 – 4000 MHz | 5150 – 5925 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 300 W @ 50 °C |
Electrical specifications
| Y1-Y4 | Y1-Y4 | Y1-Y4 | P1-P2 | P1-P2 | P1-P2 | O1-O2 | |
| Frequency Band, MHz | 1695–1920 | 1920–2180 | 2300–2690 | 3300–3550 | 3550–3700 | 3700–4000 | 5150–5925 |
| RF Port | 1-8 | 1-8 | 1-8 | 9-12 | 9-12 | 9-12 | 13-16 |
| Gain, dBi | 7.2 | 7.3 | 8.4 | 6.4 | 6.2 | 6.2 | 4.0 |
| Beamwidth, Horizontal, degrees | 360 | 360 | 360 | 360 | 360 | 360 | 360 |
| Beamwidth, Vertical, degrees | 21.5 | 18.7 | 15.1 | 38.2 | 37.8 | 36.8 | 25.5 |
| Beam Tilt, degrees | 7 | 7 | 7 | 2 | 2 | 2 | 2 |
| Isolation, Cross Polarization, dB | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Isolation, Inter-band, dB | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 | -150 | -145 | -145 | -145 | |
| Input Power per Port, maximum, watts | 125 | 125 | 125 | 50 | 50 | 50 | 10 |
| Input Power per Port at 50°C, maximum, watts | 75 | 75 | 75 | 35 | 35 | 35 | 5 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 103.0 N @ 150 km/h (23.2 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 103.0 N @ 150 km/h (23.2 lbf @ 150 km/h) |
| Wind Loading @ Velocity, maximum | 103.0 N @ 150 km/h (23.2 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 103.0 N @ 150 km/h (23.2 lbf @ 150 km/h) |
| Wind Speed, maximum | 241.4 km/h (150 mph) |
Packaging and weights
| Width, packed | 418 mm | 16.457 in |
| Depth, packed | 404 mm | 15.906 in |
| Length, packed | 888 mm | 34.961 in |
| Weight, gross | 17.8 kg | 39.242 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| ROHS | Compliant |
| UK-ROHS | Compliant |
General specifications
| Antenna Type | Small Cell |
| Band | Multiband |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | ASA, UV stabilized |
| Radiator Material | Low loss circuit board |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 16 |
| RF Connector Quantity, mid band | 0 |
| RF Connector Quantity, low band | 0 |
| RF Connector Quantity, total | 16 |
Dimensions
| Width | 305 mm | 12.008 in |
| Depth | 305 mm | 12.008 in |
| Length | 620 mm | 24.409 in |
| Net Weight, antenna only | 13.3 kg | 29.321 lb |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 1695 – 2690 MHz | 3300 – 4000 MHz | 5150 – 5925 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 300 W @ 50 °C |
Electrical specifications
| Y1-Y4 | Y1-Y4 | Y1-Y4 | P1-P2 | P1-P2 | P1-P2 | O1-O2 | |
| Frequency Band, MHz | 1695–1920 | 1920–2180 | 2300–2690 | 3300–3550 | 3550–3700 | 3700–4000 | 5150–5925 |
| RF Port | 1-8 | 1-8 | 1-8 | 9-12 | 9-12 | 9-12 | 13-16 |
| Gain, dBi | 7.2 | 7.3 | 8.4 | 6.4 | 6.2 | 6.2 | 4.0 |
| Beamwidth, Horizontal, degrees | 360 | 360 | 360 | 360 | 360 | 360 | 360 |
| Beamwidth, Vertical, degrees | 21.5 | 18.7 | 15.1 | 38.2 | 37.8 | 36.8 | 25.5 |
| Beam Tilt, degrees | 7 | 7 | 7 | 2 | 2 | 2 | 2 |
| Isolation, Cross Polarization, dB | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Isolation, Inter-band, dB | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 | -150 | -145 | -145 | -145 | |
| Input Power per Port, maximum, watts | 125 | 125 | 125 | 50 | 50 | 50 | 10 |
| Input Power per Port at 50°C, maximum, watts | 75 | 75 | 75 | 35 | 35 | 35 | 5 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 103.0 N @ 150 km/h (23.2 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 103.0 N @ 150 km/h (23.2 lbf @ 150 km/h) |
| Wind Loading @ Velocity, maximum | 103.0 N @ 150 km/h (23.2 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 103.0 N @ 150 km/h (23.2 lbf @ 150 km/h) |
| Wind Speed, maximum | 241.4 km/h (150 mph) |
Packaging and weights
| Width, packed | 418 mm | 16.457 in |
| Depth, packed | 404 mm | 15.906 in |
| Length, packed | 888 mm | 34.961 in |
| Weight, gross | 17.8 kg | 39.242 lb |
| Click on image to enlarge. |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| ROHS | Compliant |
| UK-ROHS | Compliant |
