V17-001-01-A0-E

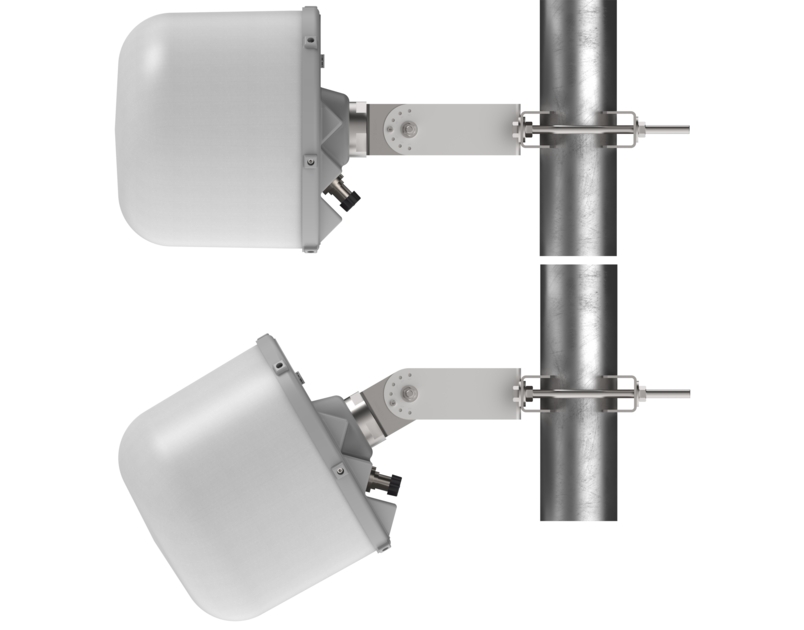

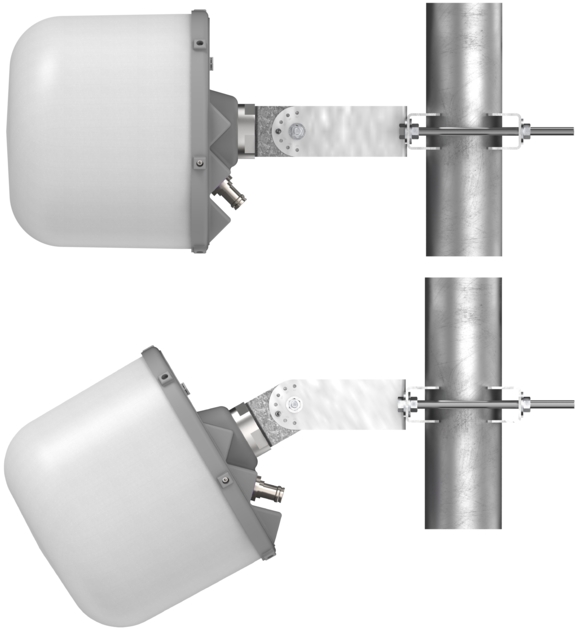

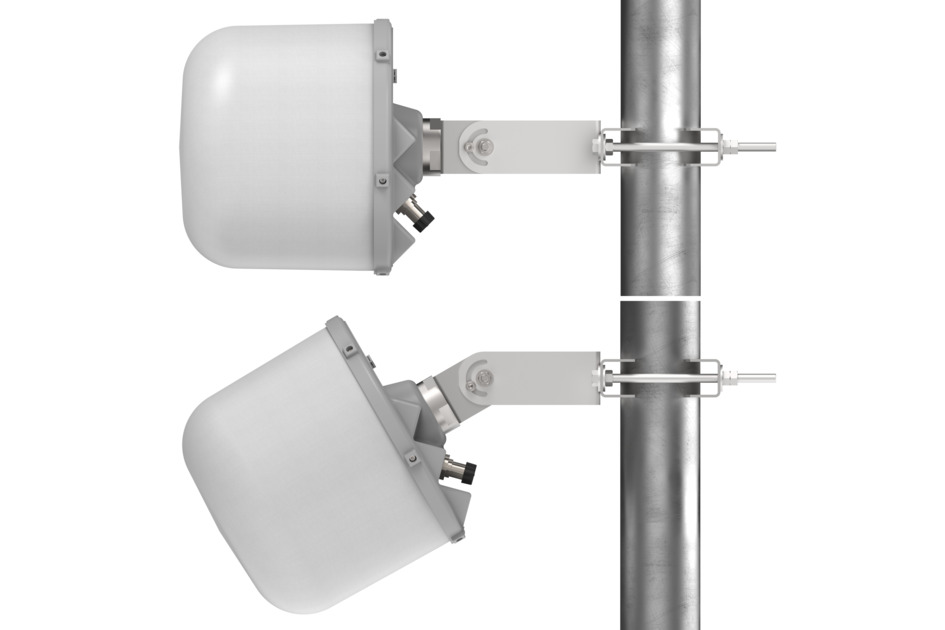

Venue Antenna
Features and benefits
- 17° Azimuth and Elevation Beamwidth
- Designed with CleanBeam™ technology
- Supports 2x2 MIMO
- 2T2R MetaLens™ antenna
Specifications
General specifications
| Color | White |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Radome Material | ASA, UV resistant |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Quantity, total | 2 |
Dimensions
| Width | 299 mm | 11.772 in |
| Depth | 294 mm | 11.575 in |
| Length | 299 mm | 11.772 in |
| Net Weight, antenna only | 3.3 kg | 7.275 lb |

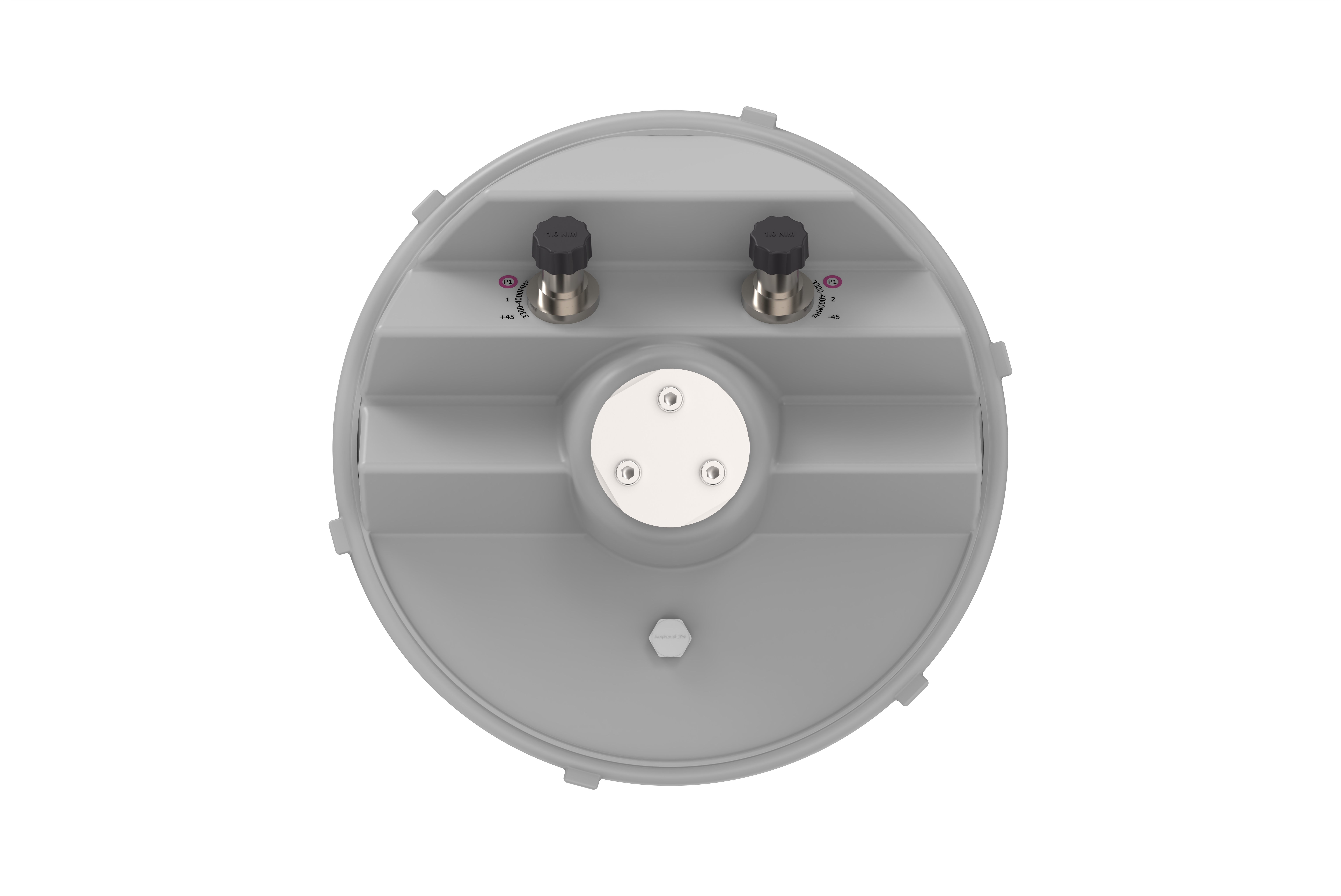

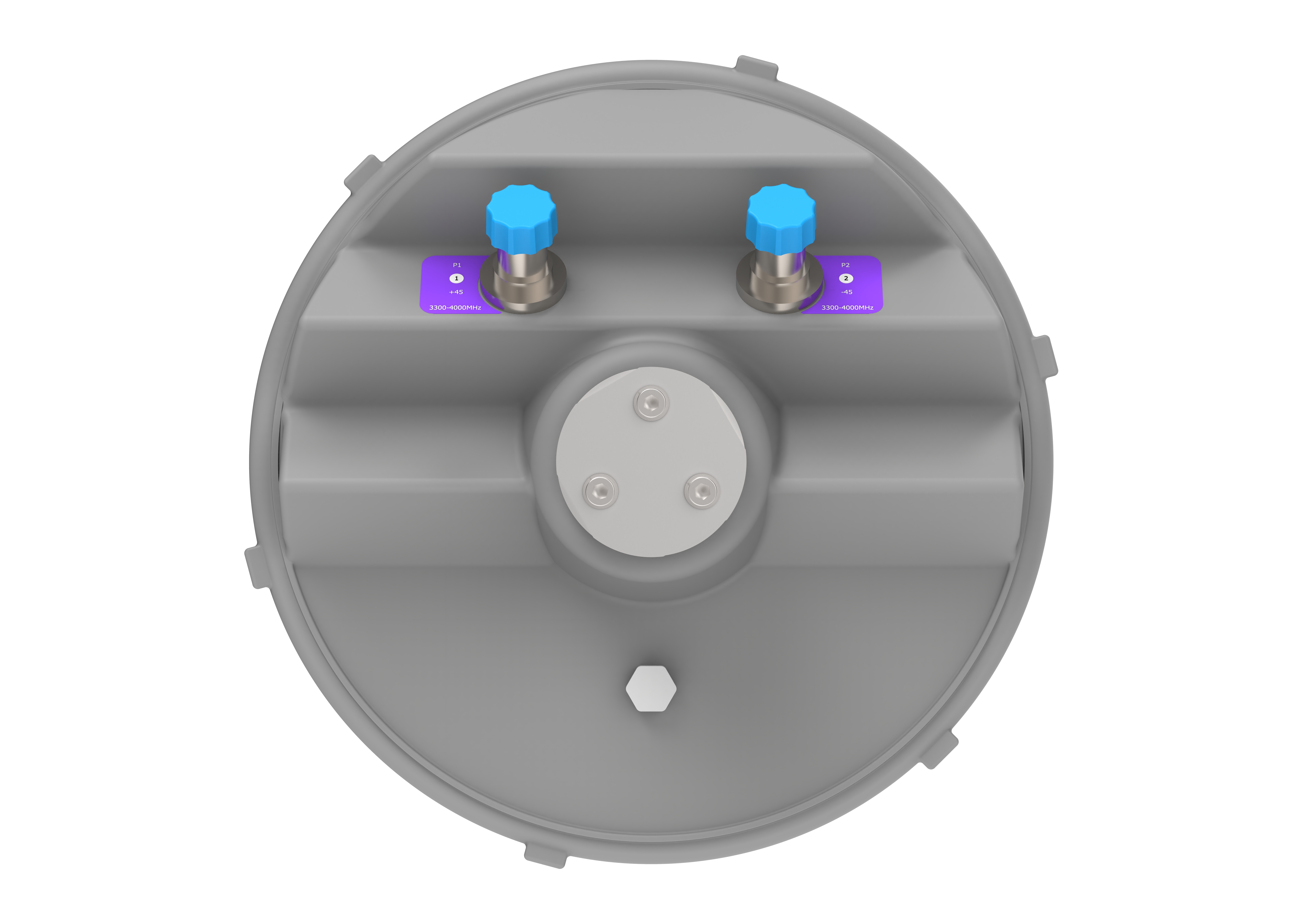

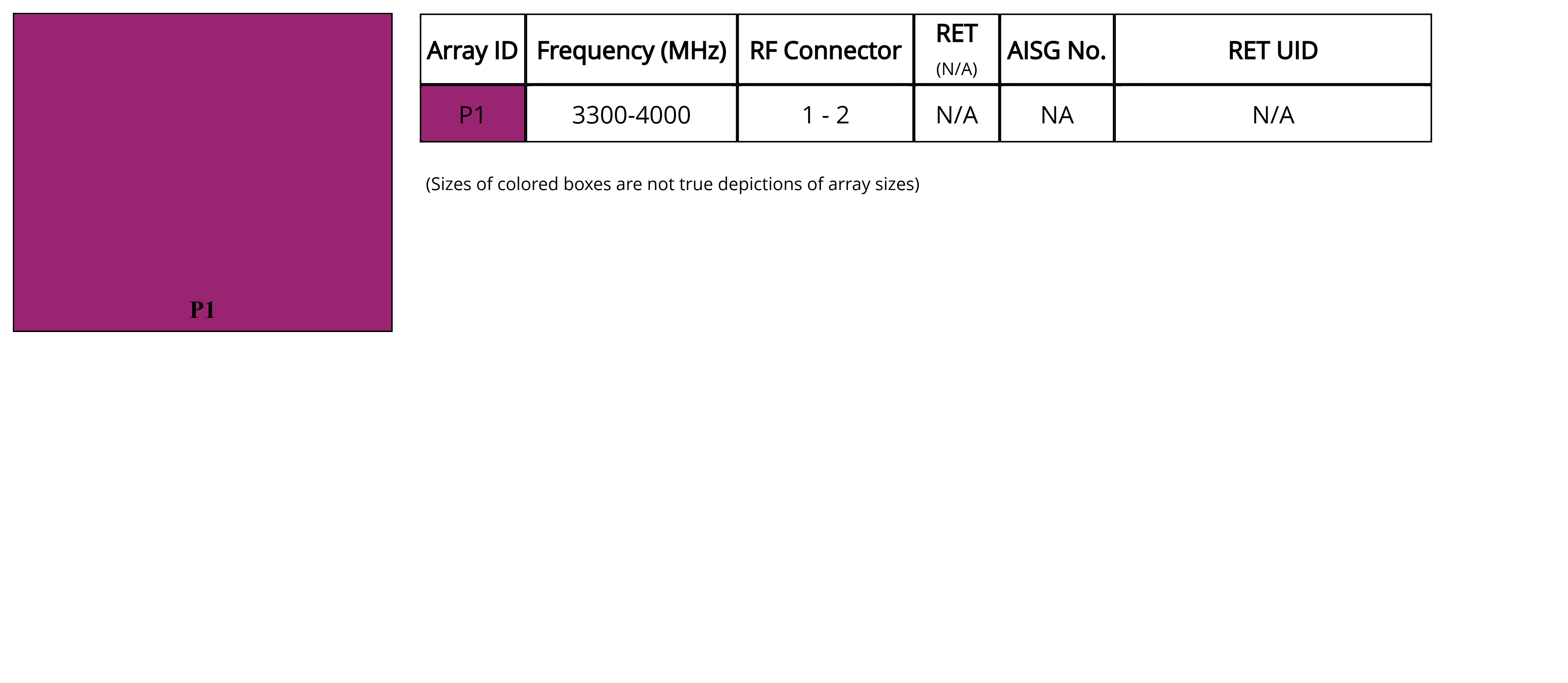

Port configuration
| Click on image to enlarge. |
Electrical specifications
| Operating Frequency Band | 3300 – 4000 MHz |
| Polarization | ±45° |
Electrical specifications
| P1,P2 | P1,P2 | P1,P2 | |
| Frequency Band, MHz | 3300–3800 | 3550–3700 | 3700–4000 |
| RF Port | 1,2 | 1,2 | 1,2 |
| Gain, dBi | 18.6 | 18.7 | 19.1 |
| Beamwidth, Horizontal, degrees | 18 | 17 | 16 |
| Beamwidth, Vertical, degrees | 18 | 17 | 16 |
| USLS (First Lobe), dB | 18 | 18 | 20 |
| Front-to-Back Ratio at 180°, dB | 30 | 30 | 30 |
| Front-to-Back Ratio, Copolarization 180° ± 30°, dB | 27 | 26 | 25 |
| Isolation, Cross Polarization, dB | 25 | 25 | 25 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 | -153 |
| Input Power per Port, maximum, watts | 80 | 80 | 80 |
Environmental specifications
| Operating Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
Packaging and weights
| Width, packed | 399 mm | 15.709 in |
| Depth, packed | 510 mm | 20.079 in |
| Length, packed | 400 mm | 15.748 in |
| Weight, gross | 8.5 kg | 18.739 lb |
General specifications
| Color | White |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Radome Material | ASA, UV resistant |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Quantity, total | 2 |
Dimensions
| Width | 299 mm | 11.772 in |
| Depth | 294 mm | 11.575 in |
| Length | 299 mm | 11.772 in |
| Net Weight, antenna only | 3.3 kg | 7.275 lb |
Electrical specifications
| Operating Frequency Band | 3300 – 4000 MHz |
| Polarization | ±45° |
Electrical specifications
| P1,P2 | P1,P2 | P1,P2 | |
| Frequency Band, MHz | 3300–3800 | 3550–3700 | 3700–4000 |
| RF Port | 1,2 | 1,2 | 1,2 |
| Gain, dBi | 18.6 | 18.7 | 19.1 |
| Beamwidth, Horizontal, degrees | 18 | 17 | 16 |
| Beamwidth, Vertical, degrees | 18 | 17 | 16 |
| USLS (First Lobe), dB | 18 | 18 | 20 |
| Front-to-Back Ratio at 180°, dB | 30 | 30 | 30 |
| Front-to-Back Ratio, Copolarization 180° ± 30°, dB | 27 | 26 | 25 |
| Isolation, Cross Polarization, dB | 25 | 25 | 25 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 | -153 |
| Input Power per Port, maximum, watts | 80 | 80 | 80 |
Environmental specifications
| Operating Temperature | -40 °C to +70 °C (-40 °F to +158 °F) |
Packaging and weights
| Width, packed | 399 mm | 15.709 in |
| Depth, packed | 510 mm | 20.079 in |
| Length, packed | 400 mm | 15.748 in |
| Weight, gross | 8.5 kg | 18.739 lb |
| Click on image to enlarge. |
