UNNPX206R3

6-port sector antenna, 2x 698–894 and 4x 1710–2180 MHz, 33° HPBW, 3x RET.

Finish making your selections or clear them to view relevant specifications.

Specifications

General specifications

Antenna Type	Sector
Band	Multiband
Grounding Type	RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note	Outdoor usage
Radome Material	ASA, UV stabilized
Radiator Material	Aluminum \| Low loss circuit board
Reflector Material	Aluminum
RF Connector Interface	7-16 DIN Female
RF Connector Location	Bottom
RF Connector Quantity, high band	4
RF Connector Quantity, mid band	0
RF Connector Quantity, low band	2
RF Connector Quantity, total	6

RET Interface	8-pin DIN Female \| 8-pin DIN Male
RET Interface, quantity	3 female \| 3 male
Input Voltage	10–30 Vdc
Internal RET	High band (2) \| Low band (1)
Power Consumption, idle state, maximum	2 W
Power Consumption, normal conditions, maximum	13 W
Protocol	3GPP/AISG 2.0 (Single RET)

Width	622 mm \| 24.488 in
Depth	229 mm \| 9.016 in
Length	1584 mm \| 62.362 in
Net Weight, without mounting kit	30 kg \| 66.139 lb

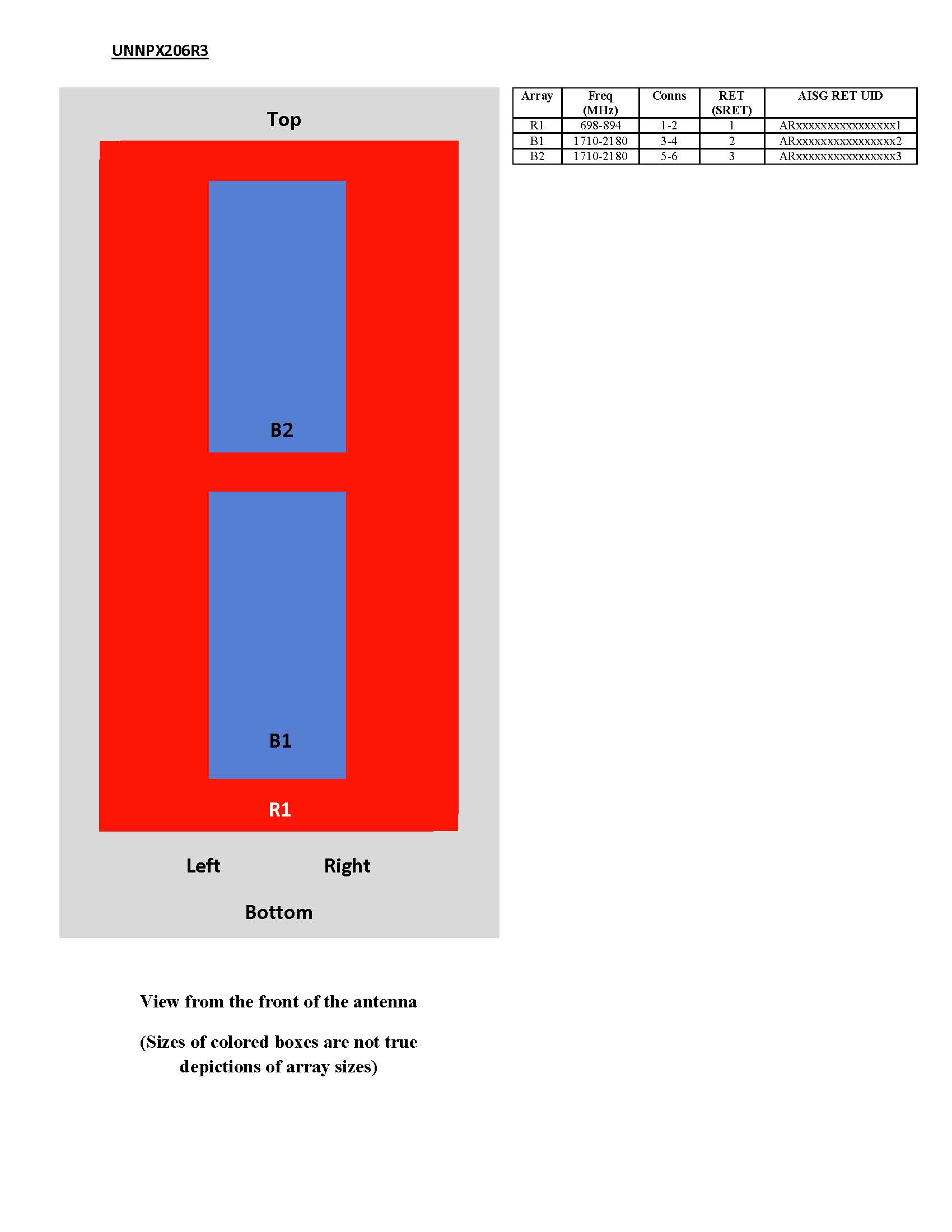

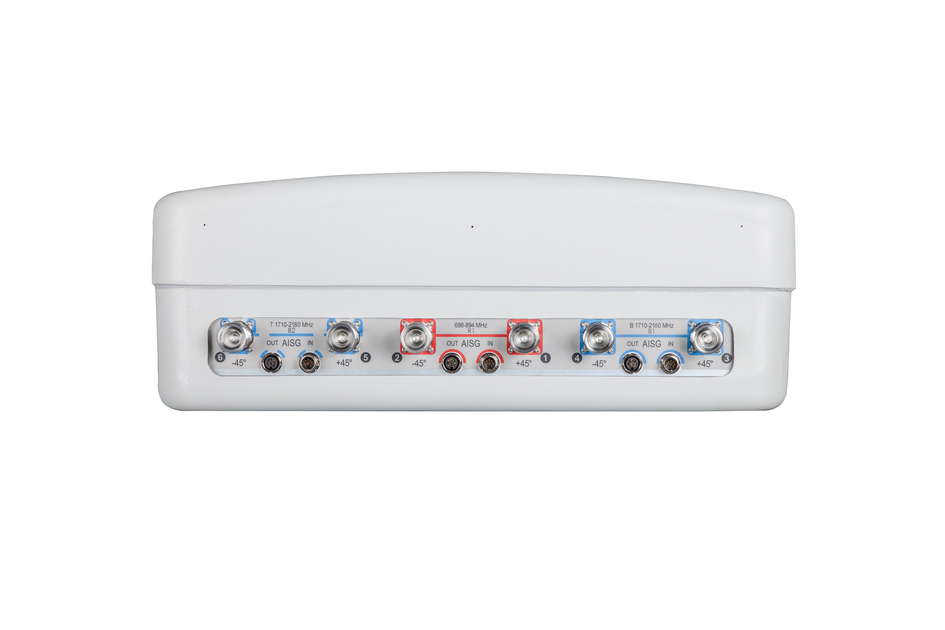

Click on image to enlarge.

Frequency Band, MHz	698–790	790–894	1710–1920	1920–2180
Gain, dBi	17.2	17.7	17.4	18.2
Beamwidth, Horizontal, degrees	35	31	34	32
Beamwidth, Vertical, degrees	15.8	14.1	13.2	11.8
Beam Tilt, degrees	0–10	0–10	0–10	0–10
USLS (First Lobe), dB	18	18	18	18
Front-to-Back Ratio at 180°, dB	30	35	28	32
CPR at Boresight, dB	23	22	21	20
Isolation, Cross Polarization, dB	30	30
Isolation by Beam Tilt, dB			28, 0° \| 1° 30, 2° – 10°	28, 0° \| 1° 30, 2° – 10°
Isolation, Inter-band, dB	30	30	30	30
VSWR \| Return loss, dB	1.43 \| 15.0	1.43 \| 15.0	1.43 \| 15.0	1.43 \| 15.0
PIM, 3rd Order, 2 x 20 W, dBc	-153	-153	-153	-153
Input Power per Port, maximum, watts	500	500	300	300

Wind Loading @ Velocity, frontal	1,206.0 N @ 150 km/h (271.1 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral	219.0 N @ 150 km/h (49.2 lbf @ 150 km/h)
Wind Loading @ Velocity, rear	1,237.0 N @ 150 km/h (278.1 lbf @ 150 km/h)
Wind Speed, maximum	200 km/h (124 mph)

Agency	Classification
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system

Antenna Type	Sector
Band	Multiband
Grounding Type	RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note	Outdoor usage
Radome Material	ASA, UV stabilized
Radiator Material	Aluminum \| Low loss circuit board
Reflector Material	Aluminum
RF Connector Interface	7-16 DIN Female
RF Connector Location	Bottom
RF Connector Quantity, high band	4
RF Connector Quantity, mid band	0
RF Connector Quantity, low band	2
RF Connector Quantity, total	6

RET Interface	8-pin DIN Female \| 8-pin DIN Male
RET Interface, quantity	3 female \| 3 male
Input Voltage	10–30 Vdc
Internal RET	High band (2) \| Low band (1)
Power Consumption, idle state, maximum	2 W
Power Consumption, normal conditions, maximum	13 W
Protocol	3GPP/AISG 2.0 (Single RET)

Width	622 mm \| 24.488 in
Depth	229 mm \| 9.016 in
Length	1584 mm \| 62.362 in
Net Weight, without mounting kit	30 kg \| 66.139 lb

Frequency Band, MHz	698–790	790–894	1710–1920	1920–2180
Gain, dBi	17.2	17.7	17.4	18.2
Beamwidth, Horizontal, degrees	35	31	34	32
Beamwidth, Vertical, degrees	15.8	14.1	13.2	11.8
Beam Tilt, degrees	0–10	0–10	0–10	0–10
USLS (First Lobe), dB	18	18	18	18
Front-to-Back Ratio at 180°, dB	30	35	28	32
CPR at Boresight, dB	23	22	21	20
Isolation, Cross Polarization, dB	30	30
Isolation by Beam Tilt, dB			28, 0° \| 1°; 30, 2° – 10°	28, 0° \| 1°; 30, 2° – 10°
Isolation, Inter-band, dB	30	30	30	30
VSWR \| Return loss, dB	1.43 \| 15.0	1.43 \| 15.0	1.43 \| 15.0	1.43 \| 15.0
PIM, 3rd Order, 2 x 20 W, dBc	-153	-153	-153	-153
Input Power per Port, maximum, watts	500	500	300	300

Wind Loading @ Velocity, frontal	1,206.0 N @ 150 km/h (271.1 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral	219.0 N @ 150 km/h (49.2 lbf @ 150 km/h)
Wind Loading @ Velocity, rear	1,237.0 N @ 150 km/h (278.1 lbf @ 150 km/h)
Wind Speed, maximum	200 km/h (124 mph)
