  5. TBXLHA-6565C-A3M
Warning Icon
This product was discontinued on: November 30, 2023

For other alternatives, please contact us for more information.

1 Replacement products available
  • RVV-65D-R3VB
    6-port sector antenna, 2x 694–960 and 4x 1695–2690 MHz, 65° HPBW, 3x RET

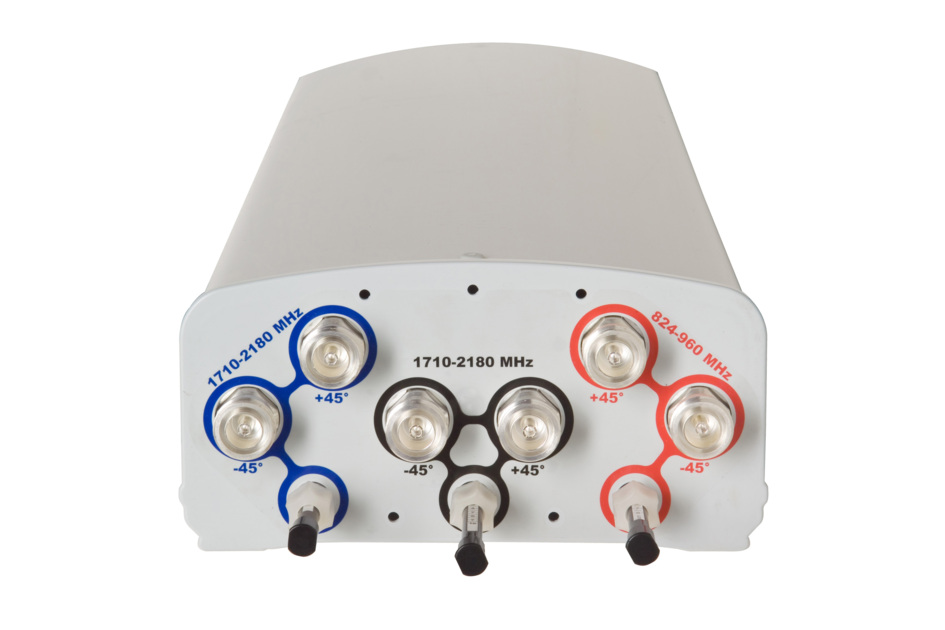

TBXLHA-6565C-A3M

6-port sector antenna, 2x 824–960 and 4x 1710–2180 MHz, 65° HPBW, 3x RETs
