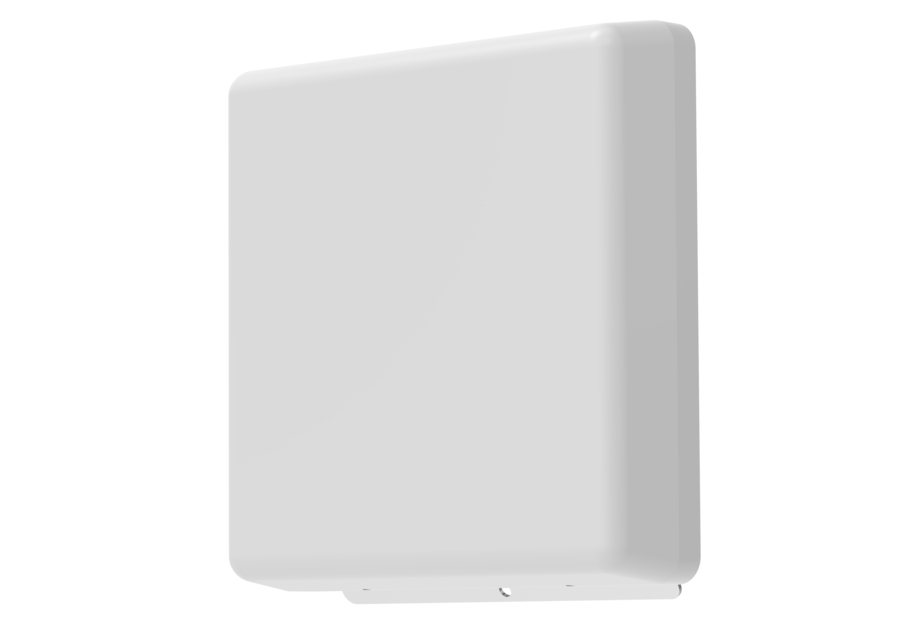

SS-65T-F
4-port small cell antenna, 4x 3300–4200 MHz, 65° HPBW, fixed electrical tilt
Features and benefits
- Supports 4T4R radios operating in B42, B43, Bn77, Bn78
- Designed for strand mounting with OEM equipment
- NEX10 connectors on back
- In cases where the antenna is to be mounted on a customer supplied pole (40-95mm diameter), Qty1 Mounting Kit Part No. BSAMNT-S should be purchased separately
Specifications
General specifications
| Antenna Type | Small Cell |
| Band | Single band |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | ASA+PC, UV stabilized |
| Radiator Material | Low loss circuit board |
| Reflector Material | Aluminum |
| RF Connector Interface | NEX10 Female |
| RF Connector Location | Rear |
| RF Connector Quantity, high band | 4 |
| RF Connector Quantity, total | 4 |
Dimensions
| Width | 200 mm | 7.874 in |
| Depth | 44 mm | 1.732 in |
| Length | 200 mm | 7.874 in |
| Net Weight, antenna only | 0.72 kg | 1.587 lb |
Array layout

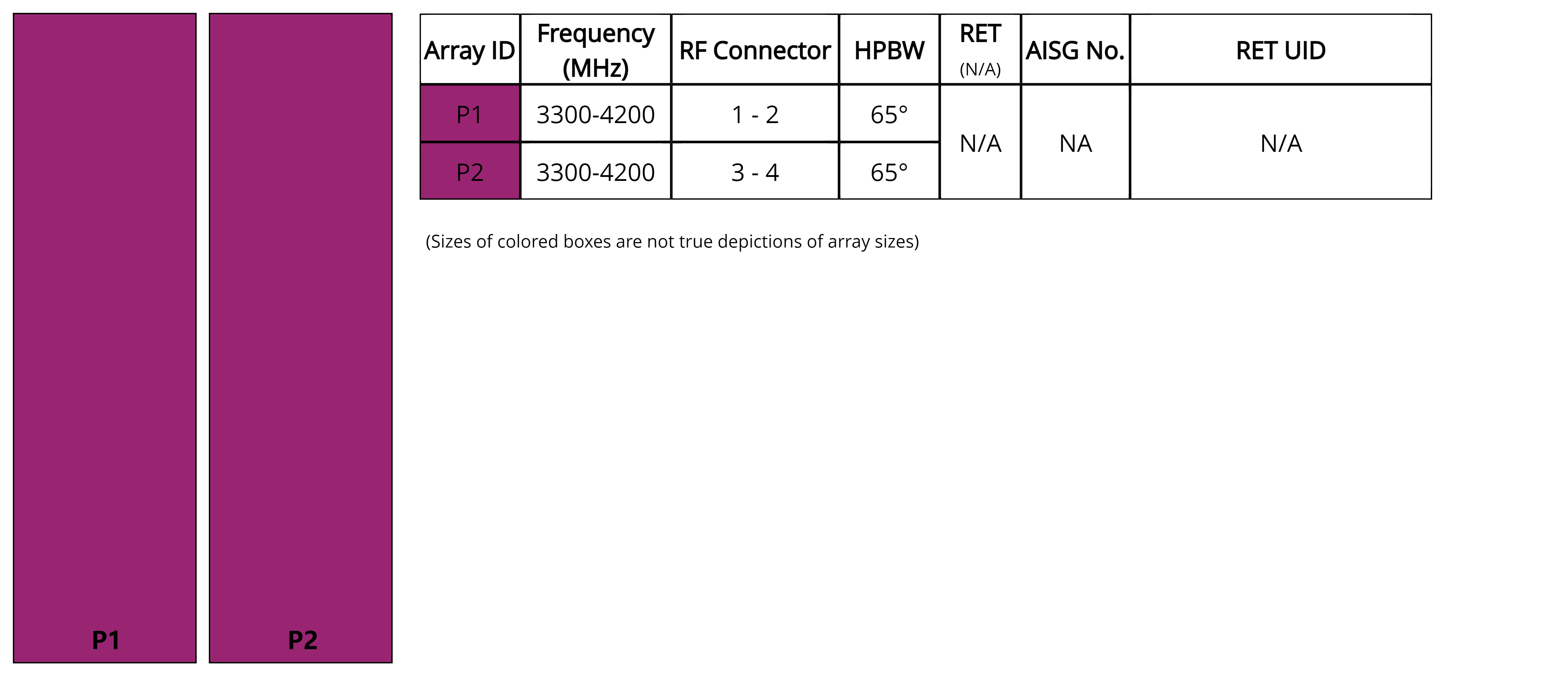

| Click on image to enlarge. |
Port configuration

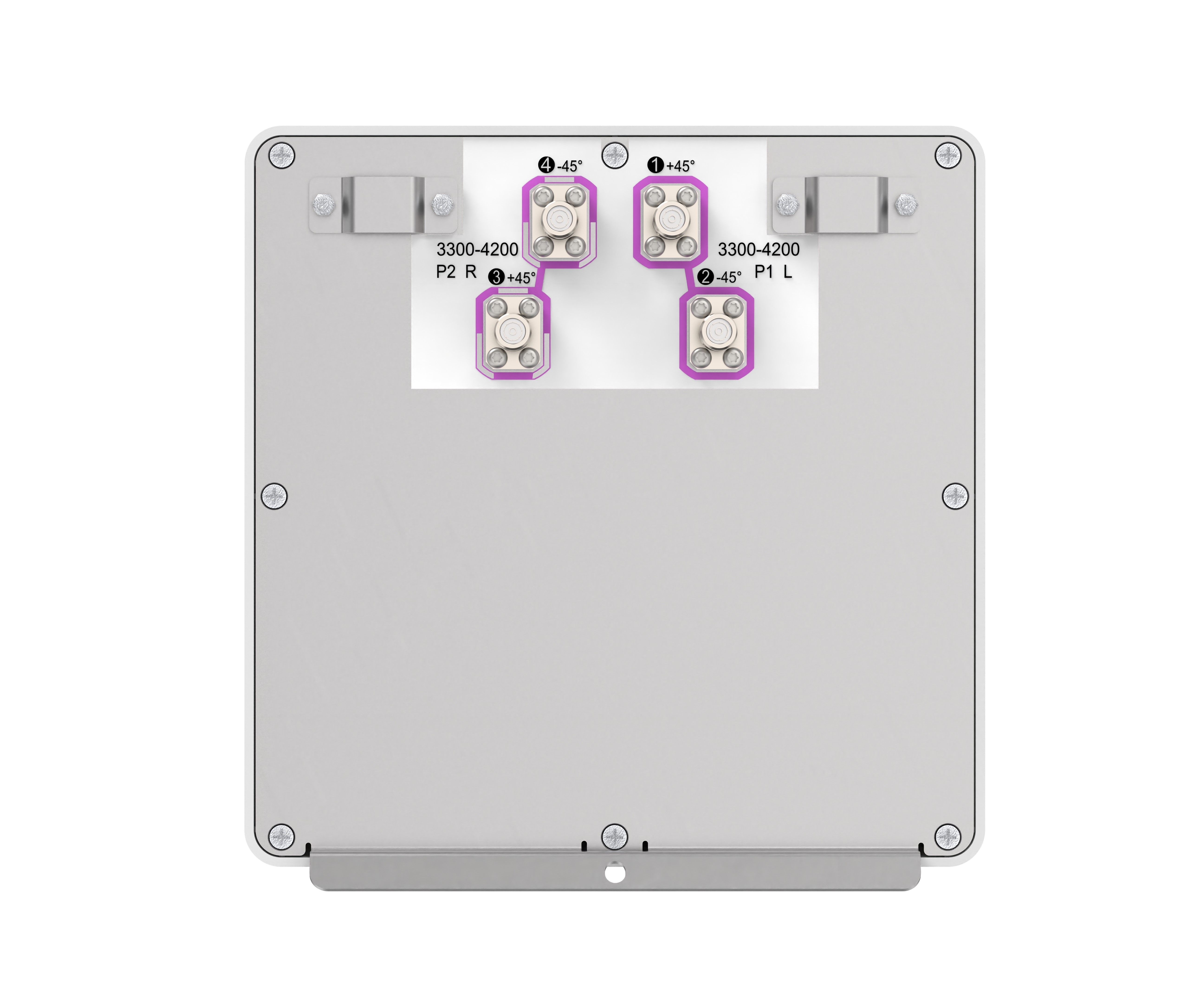

| Click on image to enlarge. |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 3300 – 4200 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 200 W |
Electrical specifications
| P1,P2 | P1,P2 | |
| Frequency Band, MHz | 3300–3800 | 3700–4200 |
| RF Port | 1-4 | 1-4 |
| Gain, dBi | 12.8 | 12.9 |
| Beamwidth, Horizontal, degrees | 65 | 63 |
| Beamwidth, Vertical, degrees | 26.1 | 23.9 |
| Beam Tilt, degrees | 6 | 6 |
| USLS (First Lobe), dB | 17 | 16 |
| Front-to-Back Ratio, Copolarization 180° ± 30°, dB | 32 | 32 |
| CPR at Boresight, dB | 20 | 20 |
| Isolation, Cross Polarization, dB | 22 | 22 |
| Isolation, Inter-band, dB | 22 | 22 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -145 | -145 |
| Input Power per Port, maximum, watts | 50 | 50 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 60.8 N @ 150 km/h (13.7 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 13.4 N @ 150 km/h (3.0 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 60.8 N @ 150 km/h (13.7 lbf @ 150 km/h) |
| Wind Speed, maximum | 200 km/h (124 mph) |
Packaging and weights
| Width, packed | 230 mm | 9.055 in |
| Depth, packed | 93 mm | 3.661 in |
| Length, packed | 230 mm | 9.055 in |
| Weight, gross | 0.73 kg | 1.609 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
General specifications
| Antenna Type | Small Cell |
| Band | Single band |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | ASA+PC, UV stabilized |
| Radiator Material | Low loss circuit board |
| Reflector Material | Aluminum |
| RF Connector Interface | NEX10 Female |
| RF Connector Location | Rear |
| RF Connector Quantity, high band | 4 |
| RF Connector Quantity, total | 4 |
Dimensions
| Width | 200 mm | 7.874 in |
| Depth | 44 mm | 1.732 in |
| Length | 200 mm | 7.874 in |
| Net Weight, antenna only | 0.72 kg | 1.587 lb |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 3300 – 4200 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 200 W |
Electrical specifications
| P1,P2 | P1,P2 | |
| Frequency Band, MHz | 3300–3800 | 3700–4200 |
| RF Port | 1-4 | 1-4 |
| Gain, dBi | 12.8 | 12.9 |
| Beamwidth, Horizontal, degrees | 65 | 63 |
| Beamwidth, Vertical, degrees | 26.1 | 23.9 |
| Beam Tilt, degrees | 6 | 6 |
| USLS (First Lobe), dB | 17 | 16 |
| Front-to-Back Ratio, Copolarization 180° ± 30°, dB | 32 | 32 |
| CPR at Boresight, dB | 20 | 20 |
| Isolation, Cross Polarization, dB | 22 | 22 |
| Isolation, Inter-band, dB | 22 | 22 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -145 | -145 |
| Input Power per Port, maximum, watts | 50 | 50 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 60.8 N @ 150 km/h (13.7 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 13.4 N @ 150 km/h (3.0 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 60.8 N @ 150 km/h (13.7 lbf @ 150 km/h) |
| Wind Speed, maximum | 200 km/h (124 mph) |
Packaging and weights
| Width, packed | 230 mm | 9.055 in |
| Depth, packed | 93 mm | 3.661 in |
| Length, packed | 230 mm | 9.055 in |
| Weight, gross | 0.73 kg | 1.609 lb |
