This product was discontinued on: November 30, 2023

For other alternatives, please contact us for more information.

1 Replacement products available
  • NNH4-65C-R8D
    8 ft, 12-Port Multiband Antenna, 4 x 698-894, 8 x 1695-2360 MHz, independent tilt for the 700 and 850 MHz bands through diplexing of the low band arrays, 8 x RETs

SBJAHH-1D65C-DL

8-port sector antenna, 2x 698–787, 2x 824-894 and 4x 1695–2360 MHz, 65°HPBW, 3x RET and low bands have diplexers

Finish making your selections or clear them to view relevant specifications.
Features and benefits
  • Independent tilt for high bands and single tilt for low bands
  • Interleaved dipole technology providing for attractive, low wind load mechanical package

General specifications

Antenna Type Sector
Band Multiband
Color Light Gray (RAL 7035)
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage | Wind loading figures are validated by wind tunnel measurements described in white paper WP-112534-EN
Radome Material Fiberglass, UV resistant
Radiator Material Copper | Low loss circuit board
Reflector Material Aluminum

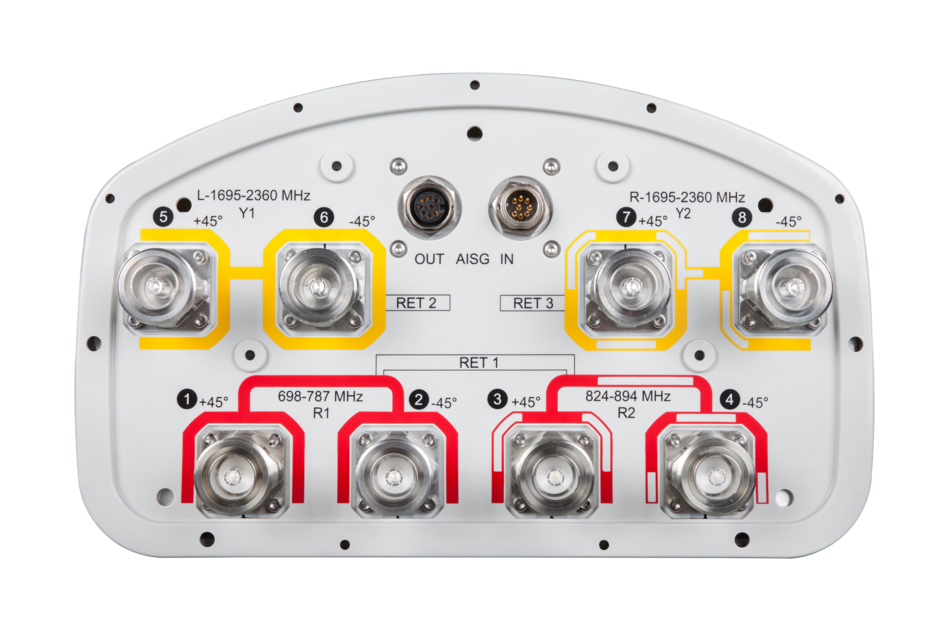

RF Connector Interface 7-16 DIN Female
RF Connector Location Bottom
RF Connector Quantity, high band 4
RF Connector Quantity, mid band 0
RF Connector Quantity, low band 4
RF Connector Quantity, total 8

Remote electrical tilt (ret) information

RET Interface 8-pin DIN Female | 8-pin DIN Male
RET Interface, quantity 1 female | 1 male
Input Voltage 10–30 Vdc
Internal RET High band (2) | Low band (1)
Power Consumption, idle state, maximum 2 W
Power Consumption, normal conditions, maximum 13 W
Protocol 3GPP/AISG 2.0 (Multi-RET)

Dimensions

Width 301 mm | 11.85 in
Depth 181 mm | 7.126 in
Length 2453 mm | 96.575 in
Net Weight, without mounting kit 26 kg | 57.32 lb

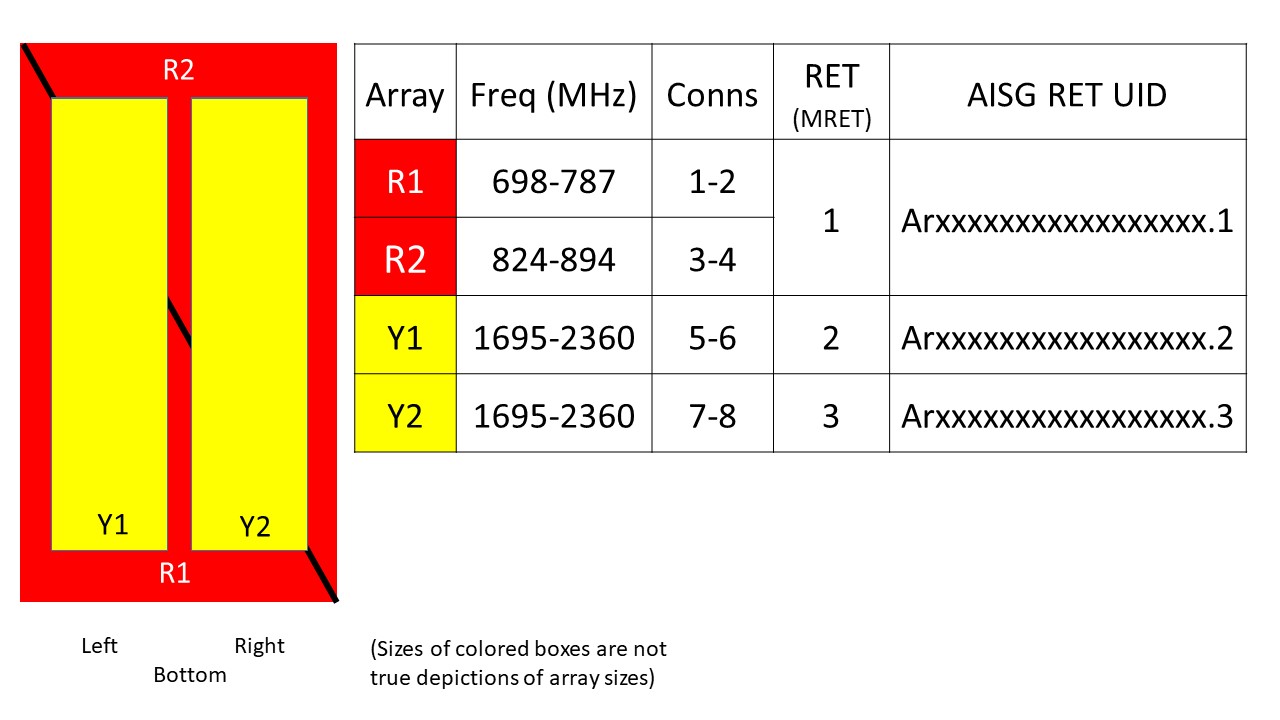

Array layout

Click on image to enlarge.

Electrical specifications

Impedance 50 ohm
Operating Frequency Band 698 – 787 MHz | 824 – 894 MHz | 1695 – 2360 MHz
Polarization ±45°

Electrical specifications

Frequency Band, MHz 698–787 824–894 1695–1880 1850–1990 1920–2200 2300–2360
Gain, dBi 15.6 15.4 17.5 17.8 18.2 18.4
Beamwidth, Horizontal, degrees 67 63 71 66 64 58
Beamwidth, Vertical, degrees 9.2 7.9 5.7 5.2 4.9 4.5
Beam Tilt, degrees 0–11 0–11 0–7 0–7 0–7 0–7
USLS (First Lobe), dB 13 15 19 19 18 17
Front-to-Back Ratio at 180°, dB 29 32 31 29 28 31
CPR at Boresight, dB 25 28 20 22 19 17
Isolation, Cross Polarization, dB 25 25 25 25 25 25
Isolation, Inter-band, dB 30 30 30 30 30 30
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -153 -153 -153 -153 -153 -153
Input Power per Port at 50°C, maximum, watts 250 250 300 300 300 300

Mechanical specifications

Effective Projective Area (EPA), frontal 0.37 m² | 3.983 ft²
Effective Projective Area (EPA), lateral 0.31 m² | 3.337 ft²
Wind Loading @ Velocity, frontal 396.0 N @ 150 km/h (89.0 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 333.0 N @ 150 km/h (74.9 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum 762.0 N @ 150 km/h (171.3 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 401.0 N @ 150 km/h (90.1 lbf @ 150 km/h)
Wind Speed, maximum 241 km/h (150 mph)

Packaging and weights

Width, packed 409 mm | 16.102 in
Depth, packed 299 mm | 11.772 in
Length, packed 2572 mm | 101.26 in
Weight, gross 38.7 kg | 85.319 lb

Regulatory compliance/certifications

Agency Classification
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
