S4-90M-R1B-3XKIT

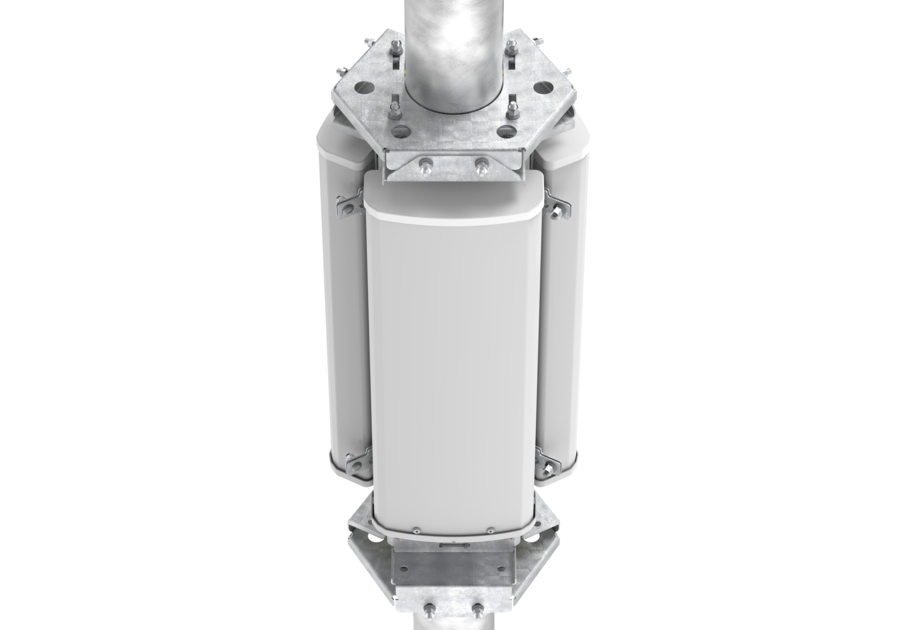

Tri-sector solution that includes 3 S4-90M-R1B-V1 antennas and a lightweight mounting kit to install them on a pipe
Features and benefits
- Suitable for attachment to 3.5-6.625 in or 89-168 mm outer diameter pipe
- Compatible with canister concealment shrouds with inner diameter > 19.9 in (507mm)
- Minimum shroud diameter is the same for all applicable pipe diameters
Specifications
General specifications
| Band | Multiband |
| Performance Note | Outdoor usage |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 24 |
| RF Connector Quantity, mid band | 0 |
| RF Connector Quantity, low band | 0 |
| RF Connector Quantity, total | 24 |
Electrical specifications
| Operating Frequency Band | 3.7 – 4.2 GHz |
Packaging and weights
| Width, packed | 550 mm | 21.654 in |
| Depth, packed | 731 mm | 28.780 in |
| Length, packed | 1292 mm | 50.866 in |
| Weight, gross | 68.7 kg | 151.457 lb |
General specifications
| Band | Multiband |
| Performance Note | Outdoor usage |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 24 |
| RF Connector Quantity, mid band | 0 |
| RF Connector Quantity, low band | 0 |
| RF Connector Quantity, total | 24 |
Electrical specifications
| Operating Frequency Band | 3.7 – 4.2 GHz |
Packaging and weights
| Width, packed | 550 mm | 21.654 in |
| Depth, packed | 731 mm | 28.780 in |
| Length, packed | 1292 mm | 50.866 in |
| Weight, gross | 68.7 kg | 151.457 lb |
