RVVS4-65M-R4

14-port sector antenna, 2x 698-960(R1), 4x 1695-2690(Y1&Y2) MHz, 65° HPBW and 8x 3300-3800(P1) MHz, 90° HPBW, 4x RET.

Finish making your selections or clear them to view relevant specifications.
Find a partner
Features and benefits
  • All Internal RET actuators are connected in “Cascaded SRET” configuration
  • M-LOC cluster connector for 3.3-3.8GHz, equipped with calibration port
  • Combination of FDD MIMO antenna and 3.5GHz 8T8R TDD beam forming antenna, all in one for 5G ready

General specifications

Antenna Type Sector
Band Multiband
Calibration Connector Interface M-LOC
Calibration Connector Quantity 1
Color Light Gray (RAL 7035)
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage
Radome Material Fiberglass, UV resistant
Radiator Material Low loss circuit board
Reflector Material Aluminum
RF Connector Interface 4.3-10 Female | M-LOC
RF Connector Location Bottom
RF Connector Quantity, high band 8
RF Connector Quantity, mid band 4
RF Connector Quantity, low band 2
RF Connector Quantity, total 14

Remote electrical tilt (ret) information

RET Hardware CommRET v2
RET Interface 8-pin DIN Female | 8-pin DIN Male
RET Interface, quantity 1 female | 1 male
Input Voltage 10–30 Vdc
Internal RET High band (1) | Low band (1) | Mid band (2)
Power Consumption, active state, maximum 10 W
Power Consumption, idle state, maximum 2 W
Protocol 3GPP/AISG 2.0

Dimensions

Width 350 mm | 13.780 in
Depth 208 mm | 8.189 in
Length 999 mm | 39.331 in
Net Weight, without mounting kit 17.4 kg | 38.360 lb
TDD Column Spacing 41 mm | 1.614 in

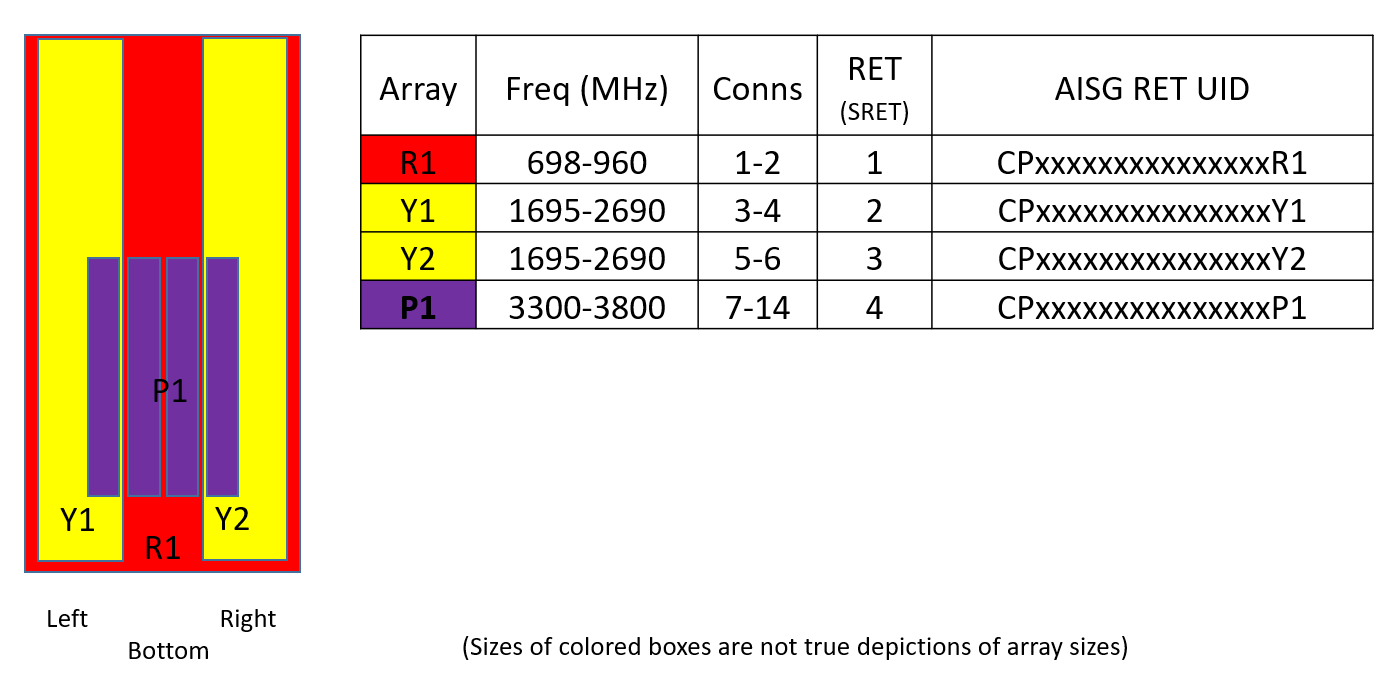

Array layout

Click on image to enlarge.

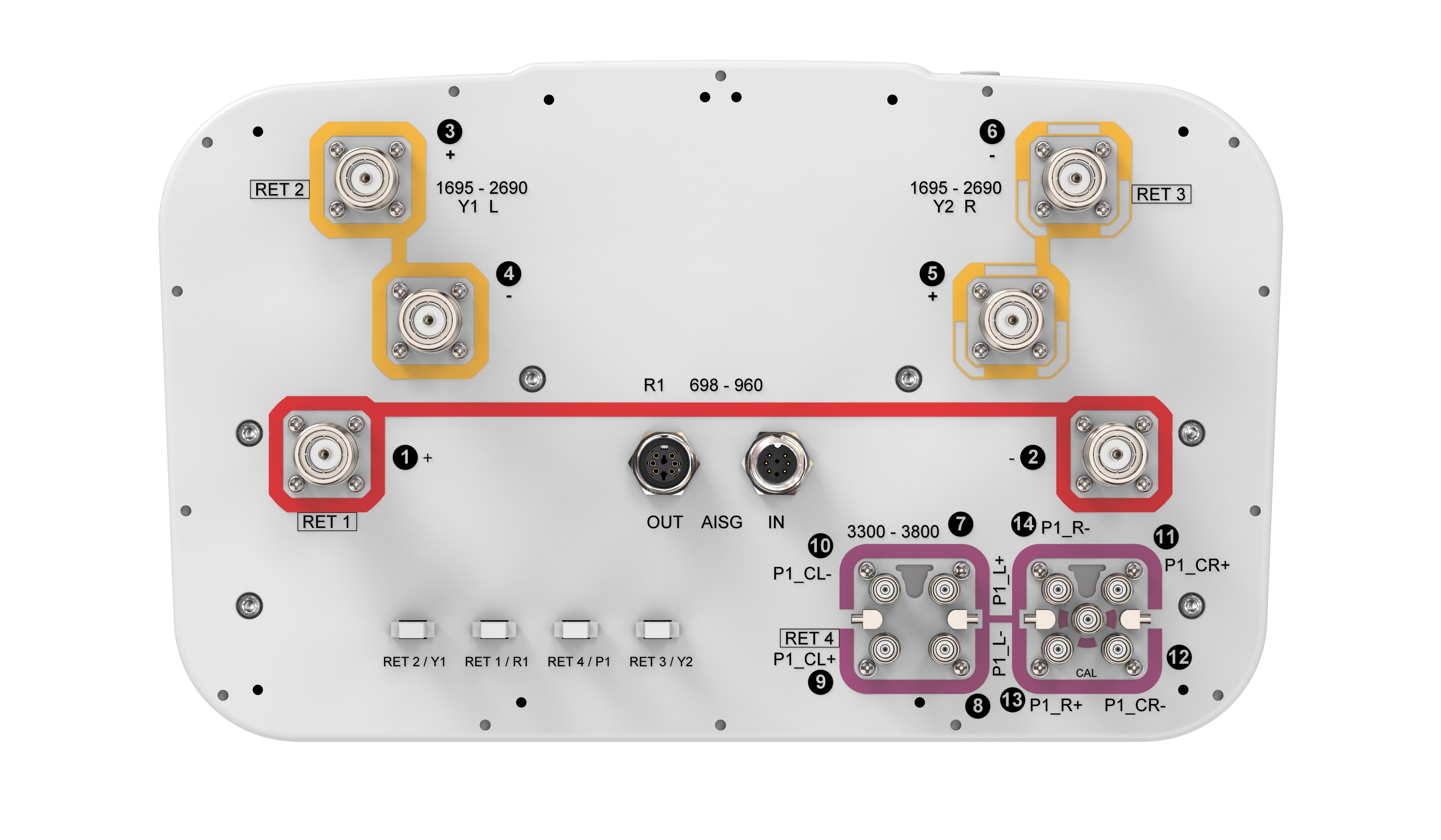

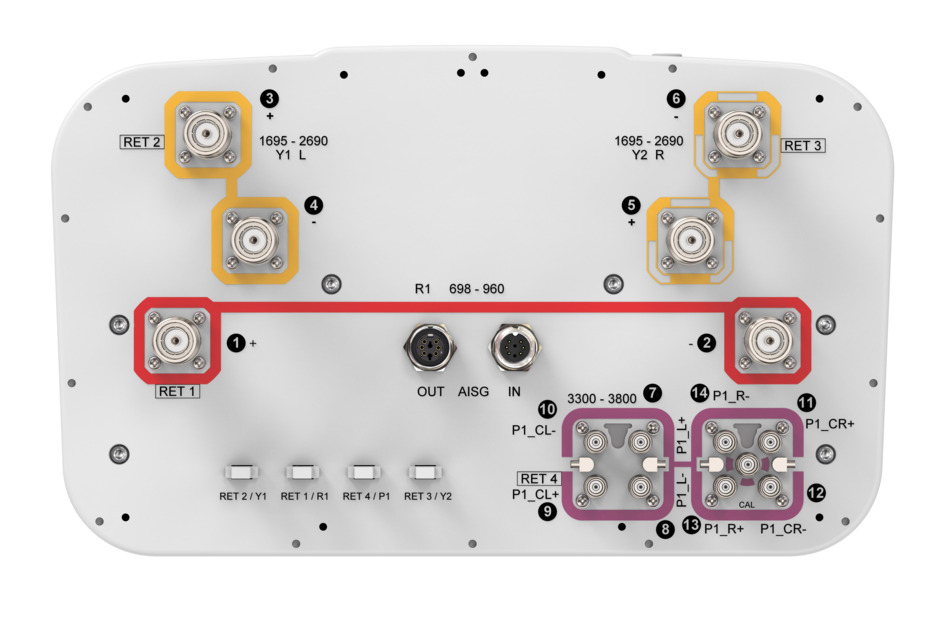

Port configuration

Click on image to enlarge.

Electrical specifications

Impedance 50 ohm
Operating Frequency Band 698 – 960 MHz | 1695 – 2690 MHz | 3300 – 3800 MHz
Polarization ±45°
Total Input Power, maximum 800 W @ 50 °C

Electrical specifications

Frequency Band, MHz 698–862 880–960 1695–1920 1920–2200 2300–2690 3300–3600 3600–3800
Gain, dBi 13.0 13.4 15.6 15.8 15.9 15.5 15.8
Beamwidth, Horizontal, degrees 70 65 66 68 66 85 84
Beamwidth, Vertical, degrees 21.2 18.7 9.3 8.2 6.9 6.6 6.2
Beam Tilt, degrees 4–18 4–18 2–12 2–12 2–12 0–10 0–10
USLS (First Lobe), dB 15 17 15 15 16 16 15
Front-to-Back Ratio at 180°, dB 31 32 31 29 28 29 29
Coupling level, Amp, Antenna port to Cal port, dB 26 26
Coupling level, max Amp Δ, Antenna port to Cal port, dB ±2 ±2
Coupler, max Amp Δ, Antenna port to Cal port, dB 0.9 0.9
Coupler, max Phase Δ, Antenna port to Cal port, degrees 7 7
CPR at Boresight, dB 20 20 21 22 18 16 17
Isolation, Cross Polarization, dB 25 25 25 25 25 25 25
Isolation, Inter-band, dB 25 25 25 25 25 25 25
Isolation, Co-polarization, dB 20 20
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -150 -150 -150 -150 -150 -140 -140
Input Power per Port at 50°C, maximum, watts 200 200 200 200 150 75 75

Electrical specifications, broadcast 65

Frequency Band, MHz 698–862 880–960 1695–1920 1920–2200 2300–2690 3300–3600 3600–3800
Gain, dBi 16.6 17.1
Beamwidth, Horizontal, degrees 65 63
Beamwidth, Vertical, degrees 6.6 6.2
Front-to-Back Total Power at 180° ± 30°, dB 25 26
USLS (First Lobe), dB 20 20

Electrical specifications, envelope pattern

Frequency Band, MHz 698–862 880–960 1695–1920 1920–2200 2300–2690 3300–3600 3600–3800
Gain, dBi 19.6 20.0

Electrical specifications, service beam

Frequency Band, MHz 698–862 880–960 1695–1920 1920–2200 2300–2690 3300–3600 3600–3800
Steered 0° Gain, dBi 19.6 20.0
Steered 0° Beamwidth, Horizontal, degrees 27 24
Steered 0° Front-to-Back Total Power at 180° ± 30°, dB 29 29
Steered 0° Horizontal Sidelobe, dB 13 13
Steered 30° Gain, dBi 18.7 19.3
Steered 30° Beamwidth, Horizontal, degrees 31 27
Steered 30° Front-to-Back Total Power at 180° ± 30°, dB 26 29
Steered 30° Horizontal Sidelobe, dB 8 8

Electrical specifications, soft split

Frequency Band, MHz 698–862 880–960 1695–1920 1920–2200 2300–2690 3300–3600 3600–3800
Gain, dBi 18.6 19.1
Beamwidth, Horizontal, degrees 34 30
Front-to-Back Total Power at 180° ± 30°, dB 27 28

Mechanical specifications

Wind Loading @ Velocity, frontal 152.0 N @ 150 km/h (34.2 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 124.0 N @ 150 km/h (27.9 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum 322.0 N @ 150 km/h (72.4 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 161.0 N @ 150 km/h (36.2 lbf @ 150 km/h)
Wind Speed, maximum 241 km/h (150 mph)

Packaging and weights

Width, packed 451 mm | 17.756 in
Depth, packed 368 mm | 14.488 in
Length, packed 1142 mm | 44.961 in
Weight, gross 27.9 kg | 61.509 lb

Regulatory compliance/certifications

Agency Classification
CHINA-ROHS Above maximum concentration value
ROHS Compliant/Exempted
UK-ROHS Compliant/Exempted

General specifications

Antenna Type Sector
Band Multiband
Calibration Connector Interface M-LOC
Calibration Connector Quantity 1
Color Light Gray (RAL 7035)
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage
Radome Material Fiberglass, UV resistant
Radiator Material Low loss circuit board
Reflector Material Aluminum
RF Connector Interface 4.3-10 Female | M-LOC
RF Connector Location Bottom
RF Connector Quantity, high band 8
RF Connector Quantity, mid band 4
RF Connector Quantity, low band 2
RF Connector Quantity, total 14

Remote electrical tilt (ret) information

RET Hardware CommRET v2
RET Interface 8-pin DIN Female | 8-pin DIN Male
RET Interface, quantity 1 female | 1 male
Input Voltage 10–30 Vdc
Internal RET High band (1) | Low band (1) | Mid band (2)
Power Consumption, active state, maximum 10 W
Power Consumption, idle state, maximum 2 W
Protocol 3GPP/AISG 2.0

Dimensions

Width 350 mm | 13.780 in
Depth 208 mm | 8.189 in
Length 999 mm | 39.331 in
Net Weight, without mounting kit 17.4 kg | 38.360 lb
TDD Column Spacing 41 mm | 1.614 in

Electrical specifications

Impedance 50 ohm
Operating Frequency Band 698 – 960 MHz | 1695 – 2690 MHz | 3300 – 3800 MHz
Polarization ±45°
Total Input Power, maximum 800 W @ 50 °C

Electrical specifications

Frequency Band, MHz 698–862 880–960 1695–1920 1920–2200 2300–2690 3300–3600 3600–3800
Gain, dBi 13.0 13.4 15.6 15.8 15.9 15.5 15.8
Beamwidth, Horizontal, degrees 70 65 66 68 66 85 84
Beamwidth, Vertical, degrees 21.2 18.7 9.3 8.2 6.9 6.6 6.2
Beam Tilt, degrees 4–18 4–18 2–12 2–12 2–12 0–10 0–10
USLS (First Lobe), dB 15 17 15 15 16 16 15
Front-to-Back Ratio at 180°, dB 31 32 31 29 28 29 29
Coupling level, Amp, Antenna port to Cal port, dB 26 26
Coupling level, max Amp Δ, Antenna port to Cal port, dB ±2 ±2
Coupler, max Amp Δ, Antenna port to Cal port, dB 0.9 0.9
Coupler, max Phase Δ, Antenna port to Cal port, degrees 7 7
CPR at Boresight, dB 20 20 21 22 18 16 17
Isolation, Cross Polarization, dB 25 25 25 25 25 25 25
Isolation, Inter-band, dB 25 25 25 25 25 25 25
Isolation, Co-polarization, dB 20 20
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -150 -150 -150 -150 -150 -140 -140
Input Power per Port at 50°C, maximum, watts 200 200 200 200 150 75 75

Electrical specifications, broadcast 65

Frequency Band, MHz 698–862 880–960 1695–1920 1920–2200 2300–2690 3300–3600 3600–3800
Gain, dBi 16.6 17.1
Beamwidth, Horizontal, degrees 65 63
Beamwidth, Vertical, degrees 6.6 6.2
Front-to-Back Total Power at 180° ± 30°, dB 25 26
USLS (First Lobe), dB 20 20

Electrical specifications, envelope pattern

Frequency Band, MHz 698–862 880–960 1695–1920 1920–2200 2300–2690 3300–3600 3600–3800
Gain, dBi 19.6 20.0

Electrical specifications, service beam

Frequency Band, MHz 698–862 880–960 1695–1920 1920–2200 2300–2690 3300–3600 3600–3800
Steered 0° Gain, dBi 19.6 20.0
Steered 0° Beamwidth, Horizontal, degrees 27 24
Steered 0° Front-to-Back Total Power at 180° ± 30°, dB 29 29
Steered 0° Horizontal Sidelobe, dB 13 13
Steered 30° Gain, dBi 18.7 19.3
Steered 30° Beamwidth, Horizontal, degrees 31 27
Steered 30° Front-to-Back Total Power at 180° ± 30°, dB 26 29
Steered 30° Horizontal Sidelobe, dB 8 8

Electrical specifications, soft split

Frequency Band, MHz 698–862 880–960 1695–1920 1920–2200 2300–2690 3300–3600 3600–3800
Gain, dBi 18.6 19.1
Beamwidth, Horizontal, degrees 34 30
Front-to-Back Total Power at 180° ± 30°, dB 27 28

Mechanical specifications

Wind Loading @ Velocity, frontal 152.0 N @ 150 km/h (34.2 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 124.0 N @ 150 km/h (27.9 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum 322.0 N @ 150 km/h (72.4 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 161.0 N @ 150 km/h (36.2 lbf @ 150 km/h)
Wind Speed, maximum 241 km/h (150 mph)

Packaging and weights

Width, packed 451 mm | 17.756 in
Depth, packed 368 mm | 14.488 in
Length, packed 1142 mm | 44.961 in
Weight, gross 27.9 kg | 61.509 lb
Click on image to enlarge.
Click on image to enlarge.

Regulatory compliance/certifications

Agency Classification
CHINA-ROHS Above maximum concentration value
ROHS Compliant/Exempted
UK-ROHS Compliant/Exempted
