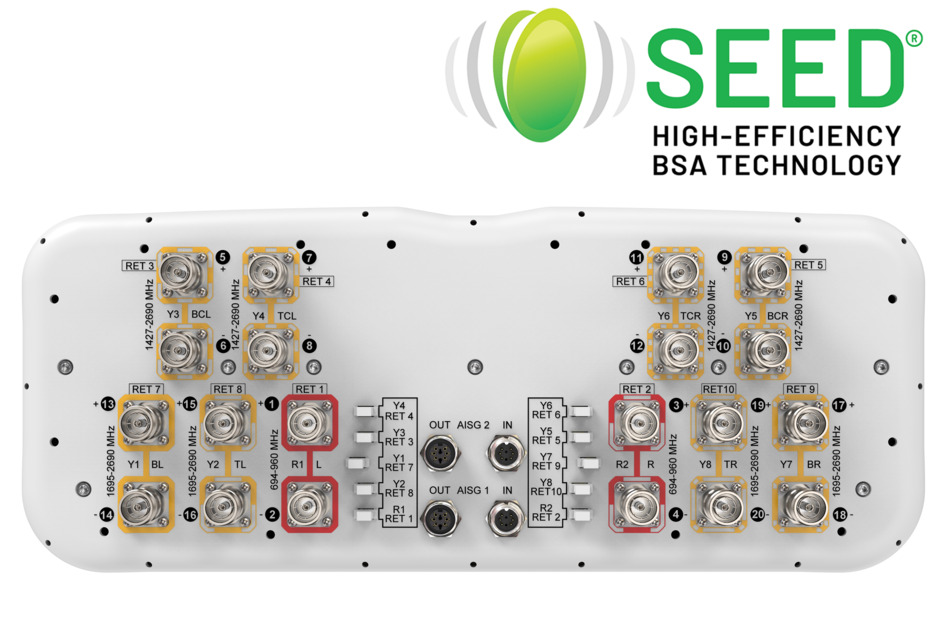

RRZ4V4-65D-R10V3

20-port sector antenna, 4x694-960 (R1 & R2), 8x1427-2690 (Y3-Y6) and 8 x 1695-2690 MHz (Y1/Y2/Y7/Y8), 65° HPBW, 10xRET

Finish making your selections or clear them to view relevant specifications.
Find a partner
Features and benefits
  • All Internal RET actuators are connected in "Cascaded SRET" configuration
  • Supports re-configurable antenna sharing capability enabling control of the internal RET system using up to two separate RET compatible OEM radios (LookupValue_1605944369041106)
  • SEED® antenna providing high gain and improved efficiency (LookupValue_1605944368281793)
  • High radiation and pattern efficiency for improved coverage area, capacity or reduced power consumption for a given area
  • Reduces the amount of aluminum used to minimize CO2 release
  • Retractable tilt indicator rods

General specifications

Antenna Type Sector
Band Multiband
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage
RF Connector Interface 4.3-10 Female
RF Connector Location Bottom
RF Connector Quantity, mid band 16
RF Connector Quantity, low band 4
RF Connector Quantity, total 20

Remote electrical tilt (ret) information

RET Hardware CommRET v2
RET Interface 8-pin DIN Female | 8-pin DIN Male
RET Interface, quantity 2 female | 2 male
Input Voltage 10–30 Vdc
Internal RET Low band (2) | Mid band (8)
Power Consumption, active state, maximum 8 W
Power Consumption, idle state, maximum 1 W
Protocol 3GPP/AISG 2.0 (Single RET)

Dimensions

Width 498 mm | 19.606 in
Depth 197 mm | 7.756 in
Length 2769 mm | 109.016 in
Net Weight, without mounting kit 47.7 kg | 105.160 lb

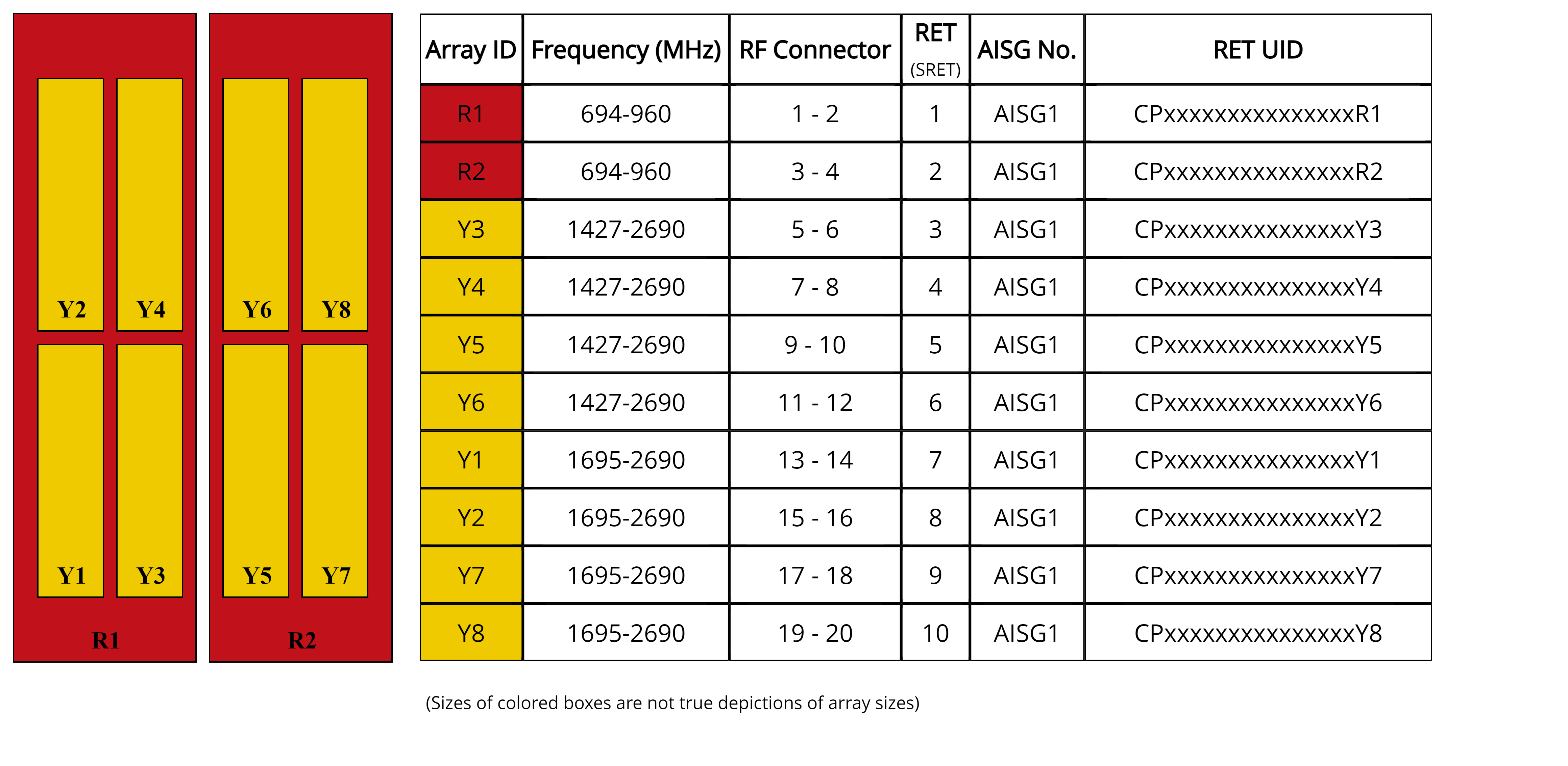

Array layout

Click on image to enlarge.

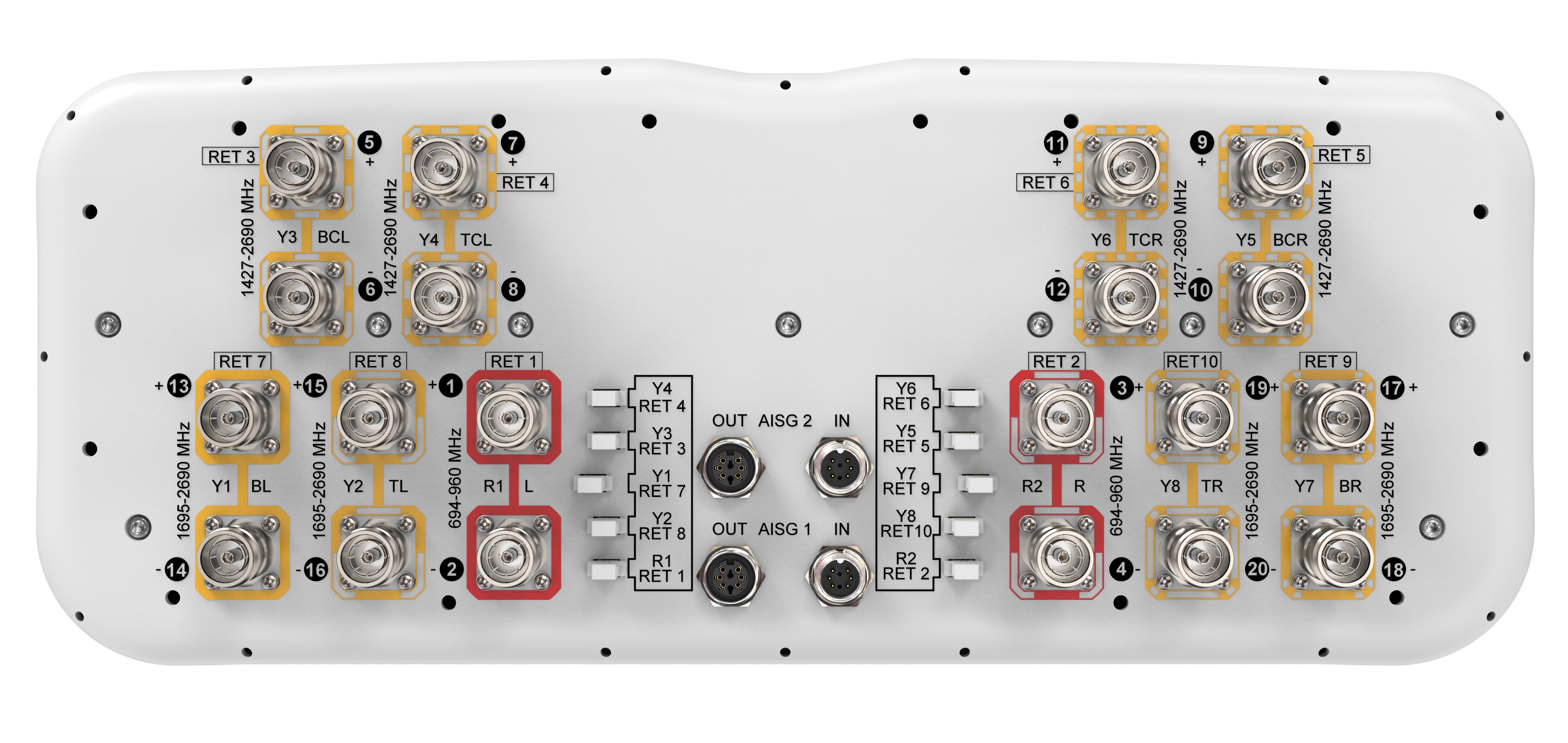

Port configuration

Click on image to enlarge.

Electrical specifications

Impedance 50 ohm
Operating Frequency Band 694 – 960 MHz | 1427 – 2690 MHz | 1695 – 2690 MHz
Polarization ±45°
Total Input Power, maximum 1,600 W @ 50 °C

Electrical specifications

R1,R2 R1,R2 R1,R2 Y1,Y7 Y1,Y7 Y1,Y7 Y1,Y7 Y2,Y8 Y2,Y8 Y2,Y8 Y2,Y8 Y3,Y5 Y3,Y5 Y3,Y5 Y3,Y5 Y3,Y5 Y4,Y6 Y4,Y6 Y4,Y6 Y4,Y6 Y4,Y6
Frequency Band, MHz 698–806 790–894 890–960 1695–1995 1920–2300 2300–2500 2490–2690 1695–1995 1920–2300 2300–2500 2490–2690 1427–1518 1695–1995 1920–2300 2300–2500 2490–2690 1427–1518 1695–1995 1920–2300 2300–2500 2490–2690
RF Port 1,2,3,4 1,2,3,4 1,2,3,4 13,14,17,18 13,14,17,18 13,14,17,18 13,14,17,18 15,16,19,20 15,16,19,20 15,16,19,20 15,16,19,20 5,6,9,10 5,6,9,10 5,6,9,10 5,6,9,10 5,6,9,10 7,8,11,12 7,8,11,12 7,8,11,12 7,8,11,12 7,8,11,12
Gain at Mid Tilt, dBi 16.3 16.7 17.0 16.8 17.8 18.5 18.5 16.9 17.9 18.4 18.4 15.5 17.2 18.5 19.4 19.5 15.7 17.4 18.5 19.2 19.3
Beamwidth, Horizontal, degrees 71 64 65 72 64 57 60 71 63 56 59 79 67 58 52 49 75 67 58 53 50
Beamwidth, Vertical, degrees 7.6 6.8 6.3 6.9 6.1 5.3 5 6.5 5.7 5 4.7 8.3 7 6.1 5.3 5 7.8 6.5 5.7 5 4.7
Beam Tilt, degrees 2–12 2–12 2–12 2–12 2–12 2–12 2–12 2–12 2–12 2–12 2–12 2–12 2–12 2–12 2–12 2–12 2–12 2–12 2–12 2–12 2–12
USLS (First Lobe), dB 18 21 20 16 16 17 18 14 14 14 20 12 17 16 18 17 19 17 16 18 22
Front-to-Back Ratio at 180°, dB 29 29 32 30 27 28 28 28 28 31 30 32 34 37 38 35 34 36 40 36 39
Isolation, Cross Polarization, dB 28 28 28 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25
Isolation, Inter-band, dB 28 28 28 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -153 -153 -153 -153 -153 -153 -153 -153 -153 -153 -153 -153 -153 -153 -153 -153 -153 -153 -153 -153 -153
Input Power per Port at 50°C, maximum, watts 300 300 300 250 250 200 200 250 250 200 200 250 250 250 200 200 250 250 250 200 200

Mechanical specifications

BASTA Version, mechanical BASTA v12
Wind Loading @ Velocity, frontal 942.0 N @ 150 km/h (211.8 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 246.0 N @ 150 km/h (55.3 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum 1,251.0 N @ 150 km/h (281.2 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 648.0 N @ 150 km/h (145.7 lbf @ 150 km/h)
Wind Speed, maximum 241 km/h (150 mph)

Packaging and weights

Width, packed 565 mm | 22.244 in
Depth, packed 318 mm | 12.520 in
Length, packed 2890 mm | 113.780 in
Weight, gross 61 kg | 134.482 lb

Regulatory compliance/certifications

Agency Classification
UK-ROHS Compliant

General specifications

Antenna Type Sector
Band Multiband
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage
RF Connector Interface 4.3-10 Female
RF Connector Location Bottom
RF Connector Quantity, mid band 16
RF Connector Quantity, low band 4
RF Connector Quantity, total 20

Remote electrical tilt (ret) information

RET Hardware CommRET v2
RET Interface 8-pin DIN Female | 8-pin DIN Male
RET Interface, quantity 2 female | 2 male
Input Voltage 10–30 Vdc
Internal RET Low band (2) | Mid band (8)
Power Consumption, active state, maximum 8 W
Power Consumption, idle state, maximum 1 W
Protocol 3GPP/AISG 2.0 (Single RET)

Dimensions

Width 498 mm | 19.606 in
Depth 197 mm | 7.756 in
Length 2769 mm | 109.016 in
Net Weight, without mounting kit 47.7 kg | 105.160 lb

Electrical specifications

Impedance 50 ohm
Operating Frequency Band 694 – 960 MHz | 1427 – 2690 MHz | 1695 – 2690 MHz
Polarization ±45°
Total Input Power, maximum 1,600 W @ 50 °C

Electrical specifications

R1,R2 R1,R2 R1,R2 Y1,Y7 Y1,Y7 Y1,Y7 Y1,Y7 Y2,Y8 Y2,Y8 Y2,Y8 Y2,Y8 Y3,Y5 Y3,Y5 Y3,Y5 Y3,Y5 Y3,Y5 Y4,Y6 Y4,Y6 Y4,Y6 Y4,Y6 Y4,Y6
Frequency Band, MHz 698–806 790–894 890–960 1695–1995 1920–2300 2300–2500 2490–2690 1695–1995 1920–2300 2300–2500 2490–2690 1427–1518 1695–1995 1920–2300 2300–2500 2490–2690 1427–1518 1695–1995 1920–2300 2300–2500 2490–2690
RF Port 1,2,3,4 1,2,3,4 1,2,3,4 13,14,17,18 13,14,17,18 13,14,17,18 13,14,17,18 15,16,19,20 15,16,19,20 15,16,19,20 15,16,19,20 5,6,9,10 5,6,9,10 5,6,9,10 5,6,9,10 5,6,9,10 7,8,11,12 7,8,11,12 7,8,11,12 7,8,11,12 7,8,11,12
Gain at Mid Tilt, dBi 16.3 16.7 17.0 16.8 17.8 18.5 18.5 16.9 17.9 18.4 18.4 15.5 17.2 18.5 19.4 19.5 15.7 17.4 18.5 19.2 19.3
Beamwidth, Horizontal, degrees 71 64 65 72 64 57 60 71 63 56 59 79 67 58 52 49 75 67 58 53 50
Beamwidth, Vertical, degrees 7.6 6.8 6.3 6.9 6.1 5.3 5 6.5 5.7 5 4.7 8.3 7 6.1 5.3 5 7.8 6.5 5.7 5 4.7
Beam Tilt, degrees 2–12 2–12 2–12 2–12 2–12 2–12 2–12 2–12 2–12 2–12 2–12 2–12 2–12 2–12 2–12 2–12 2–12 2–12 2–12 2–12 2–12
USLS (First Lobe), dB 18 21 20 16 16 17 18 14 14 14 20 12 17 16 18 17 19 17 16 18 22
Front-to-Back Ratio at 180°, dB 29 29 32 30 27 28 28 28 28 31 30 32 34 37 38 35 34 36 40 36 39
Isolation, Cross Polarization, dB 28 28 28 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25
Isolation, Inter-band, dB 28 28 28 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -153 -153 -153 -153 -153 -153 -153 -153 -153 -153 -153 -153 -153 -153 -153 -153 -153 -153 -153 -153 -153
Input Power per Port at 50°C, maximum, watts 300 300 300 250 250 200 200 250 250 200 200 250 250 250 200 200 250 250 250 200 200

Mechanical specifications

BASTA Version, mechanical BASTA v12
Wind Loading @ Velocity, frontal 942.0 N @ 150 km/h (211.8 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 246.0 N @ 150 km/h (55.3 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum 1,251.0 N @ 150 km/h (281.2 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 648.0 N @ 150 km/h (145.7 lbf @ 150 km/h)
Wind Speed, maximum 241 km/h (150 mph)

Packaging and weights

Width, packed 565 mm | 22.244 in
Depth, packed 318 mm | 12.520 in
Length, packed 2890 mm | 113.780 in
Weight, gross 61 kg | 134.482 lb
Click on image to enlarge.
Click on image to enlarge.

Regulatory compliance/certifications

Agency Classification
UK-ROHS Compliant
