RR-65B-R2VB
4-port sector antenna, 4x 694–960 MHz, 65° HPBW, 2x RET
Features and benefits
- All Internal RET actuators are connected in “Cascaded SRET” configuration
- Retractable tilt indicator rods
- Uses the 4.3-10 connector which is 40 percent smaller than the 7-16 DIN connector
Specifications
General specifications
| Antenna Type | Sector |
| Band | Single band |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Aluminum |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 0 |
| RF Connector Quantity, mid band | 0 |
| RF Connector Quantity, low band | 4 |
| RF Connector Quantity, total | 4 |
Remote electrical tilt (ret) information
| RET Hardware | CommRET v2 |
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 1 female | 1 male |
| Input Voltage | 10–30 Vdc |
| Internal RET | Low band (2) |
| Power Consumption, active state, maximum | 10 W |
| Power Consumption, idle state, maximum | 2 W |
| Protocol | 3GPP/AISG 2.0 (Single RET) |
Dimensions
| Width | 467 mm | 18.386 in |
| Depth | 167 mm | 6.575 in |
| Length | 1997 mm | 78.622 in |
| Net Weight, antenna only | 24.5 kg | 54.013 lb |

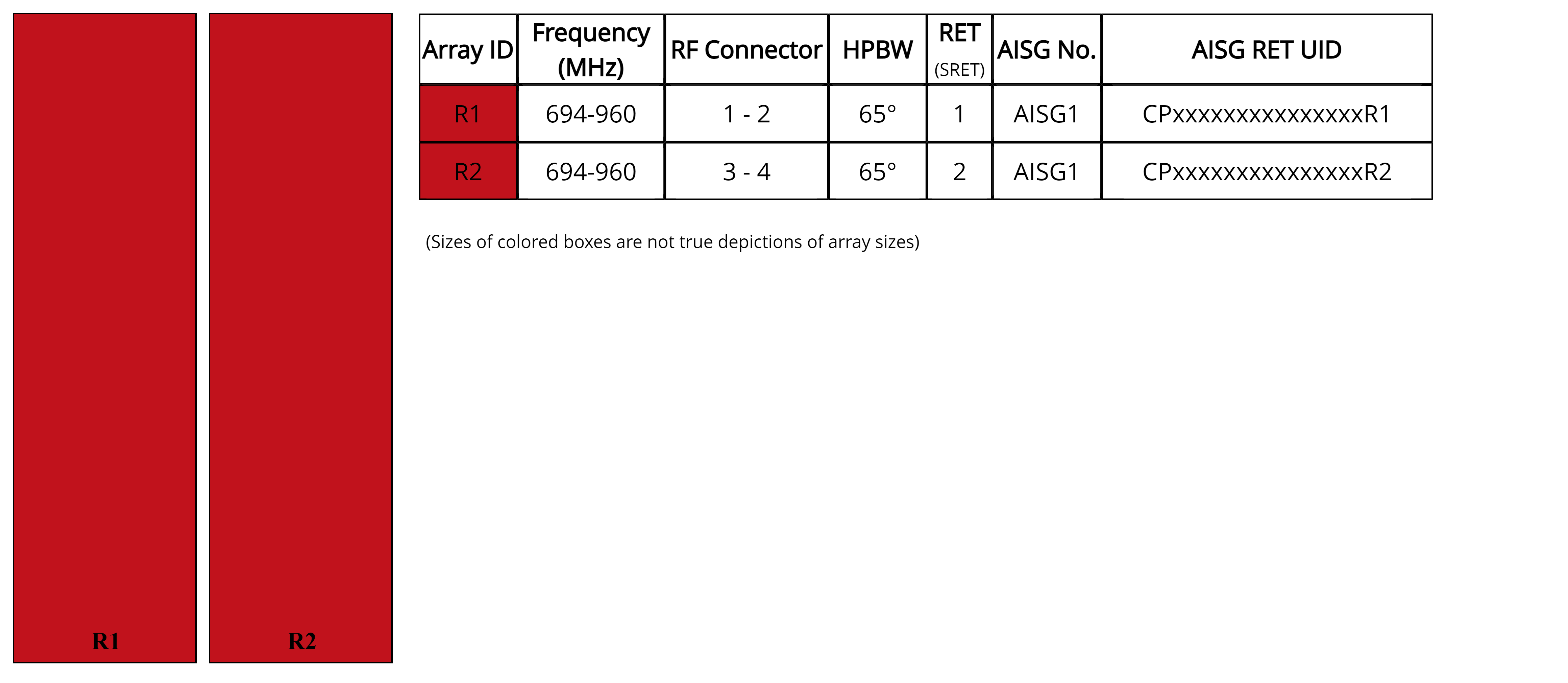

Array layout
| Click on image to enlarge. |

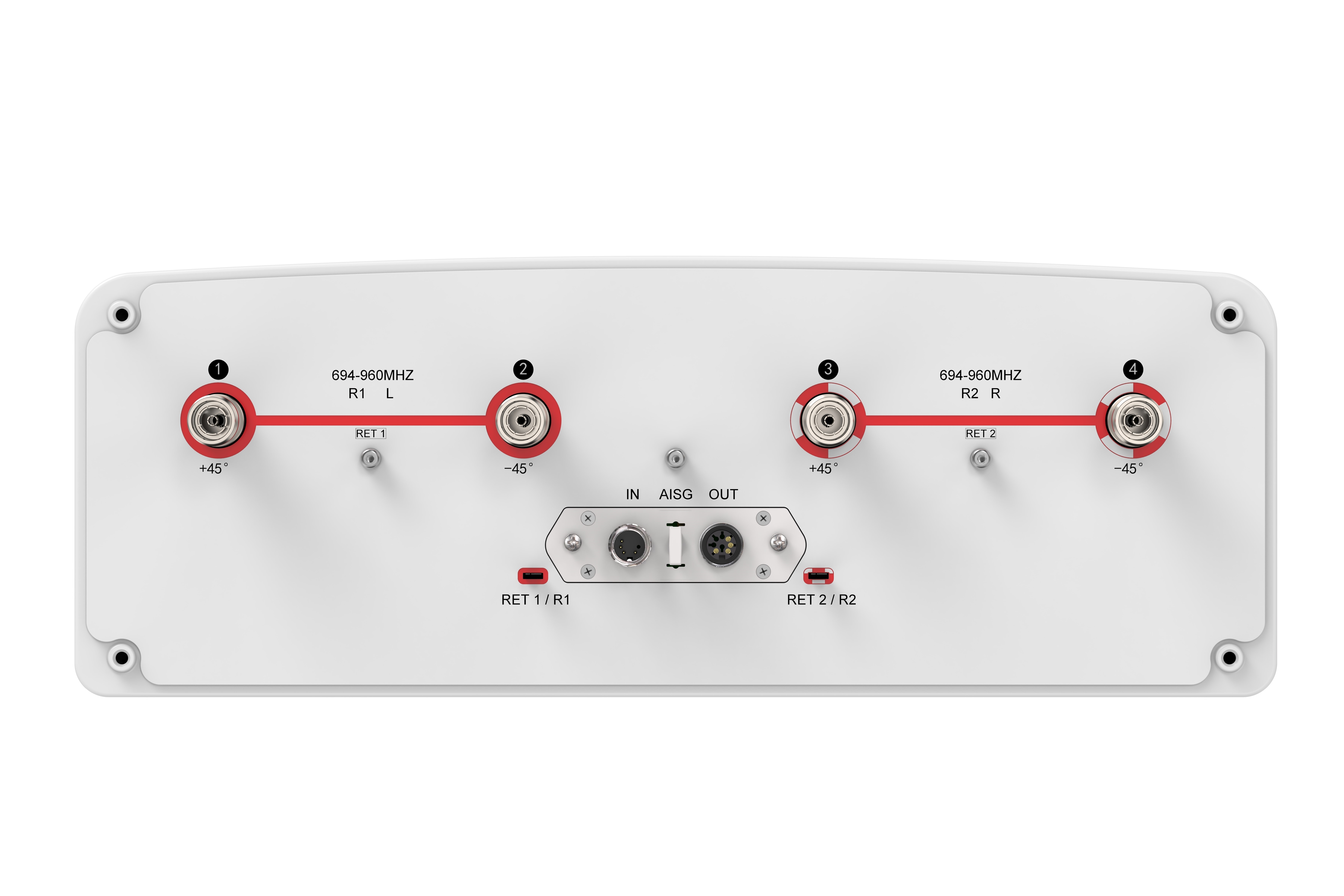

Port configuration
| Click on image to enlarge. |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 694 – 960 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 800 W |
Electrical specifications
| R1,R2 | R1,R2 | R1,R2 | |
| Frequency Band, MHz | 694–790 | 790–890 | 890–960 |
| RF Port | 1,2,3,4 | 1,2,3,4 | 1,2,3,4 |
| Gain, dBi | 15.4 | 15.5 | 16.1 |
| Beamwidth, Horizontal, degrees | 66 | 64 | 66 |
| Beamwidth, Vertical, degrees | 11.2 | 9.7 | 9 |
| Beam Tilt, degrees | 0–10 | 0–10 | 0–10 |
| USLS (First Lobe), dB | 18 | 18 | 19 |
| Front-to-Back Ratio, Copolarization 180° ± 30°, dB | 27 | 29 | 27 |
| CPR at Boresight, dB | 25 | 25 | 25 |
| Isolation, Cross Polarization, dB | 26 | 26 | 26 |
| Isolation, Inter-band, dB | 26 | 26 | 26 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 | -153 |
| Input Power per Port, maximum, watts | 300 | 300 | 300 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 820.0 N @ 150 km/h (184.3 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 308.0 N @ 150 km/h (69.2 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 1,010.0 N @ 150 km/h (227.1 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and weights
| Width, packed | 542 mm | 21.339 in |
| Depth, packed | 277 mm | 10.906 in |
| Length, packed | 2197 mm | 86.496 in |
| Weight, gross | 36 kg | 79.366 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
General specifications
| Antenna Type | Sector |
| Band | Single band |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Aluminum |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 0 |
| RF Connector Quantity, mid band | 0 |
| RF Connector Quantity, low band | 4 |
| RF Connector Quantity, total | 4 |
Remote electrical tilt (ret) information
| RET Hardware | CommRET v2 |
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 1 female | 1 male |
| Input Voltage | 10–30 Vdc |
| Internal RET | Low band (2) |
| Power Consumption, active state, maximum | 10 W |
| Power Consumption, idle state, maximum | 2 W |
| Protocol | 3GPP/AISG 2.0 (Single RET) |
Dimensions
| Width | 467 mm | 18.386 in |
| Depth | 167 mm | 6.575 in |
| Length | 1997 mm | 78.622 in |
| Net Weight, antenna only | 24.5 kg | 54.013 lb |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 694 – 960 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 800 W |
Electrical specifications
| R1,R2 | R1,R2 | R1,R2 | |
| Frequency Band, MHz | 694–790 | 790–890 | 890–960 |
| RF Port | 1,2,3,4 | 1,2,3,4 | 1,2,3,4 |
| Gain, dBi | 15.4 | 15.5 | 16.1 |
| Beamwidth, Horizontal, degrees | 66 | 64 | 66 |
| Beamwidth, Vertical, degrees | 11.2 | 9.7 | 9 |
| Beam Tilt, degrees | 0–10 | 0–10 | 0–10 |
| USLS (First Lobe), dB | 18 | 18 | 19 |
| Front-to-Back Ratio, Copolarization 180° ± 30°, dB | 27 | 29 | 27 |
| CPR at Boresight, dB | 25 | 25 | 25 |
| Isolation, Cross Polarization, dB | 26 | 26 | 26 |
| Isolation, Inter-band, dB | 26 | 26 | 26 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 | -153 |
| Input Power per Port, maximum, watts | 300 | 300 | 300 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 820.0 N @ 150 km/h (184.3 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 308.0 N @ 150 km/h (69.2 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 1,010.0 N @ 150 km/h (227.1 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and weights
| Width, packed | 542 mm | 21.339 in |
| Depth, packed | 277 mm | 10.906 in |
| Length, packed | 2197 mm | 86.496 in |
| Weight, gross | 36 kg | 79.366 lb |
| Click on image to enlarge. |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Below maximum concentration value |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
| UK-ROHS | Compliant |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
