This product was discontinued on: November 30, 2023

For other alternatives, please contact us for more information.

0 Replacement products available

RHTV65A-FH-C3-4XR

8-port sector antenna, 2x 694–960, 2x 1695–2180, 2x 2490-2690 and 2x 1695-2690 MHz, 65° HPBW, 4x RET. High bands (H1 and H2) arrays are diplexed at the element level.

Finish making your selections or clear them to view relevant specifications.
Features and benefits
  • All Internal RET actuators are connected in “Cascaded SRET” configuration
  • Uses the 4.3-10 connector which is 40 percent smaller than the 7-16 DIN connector

General specifications

Antenna Type Sector
Band Multiband
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage | Wind loading figures are validated by wind tunnel measurements described in white paper WP-112534-EN
Radome Material Fiberglass, UV resistant
Reflector Material Aluminum

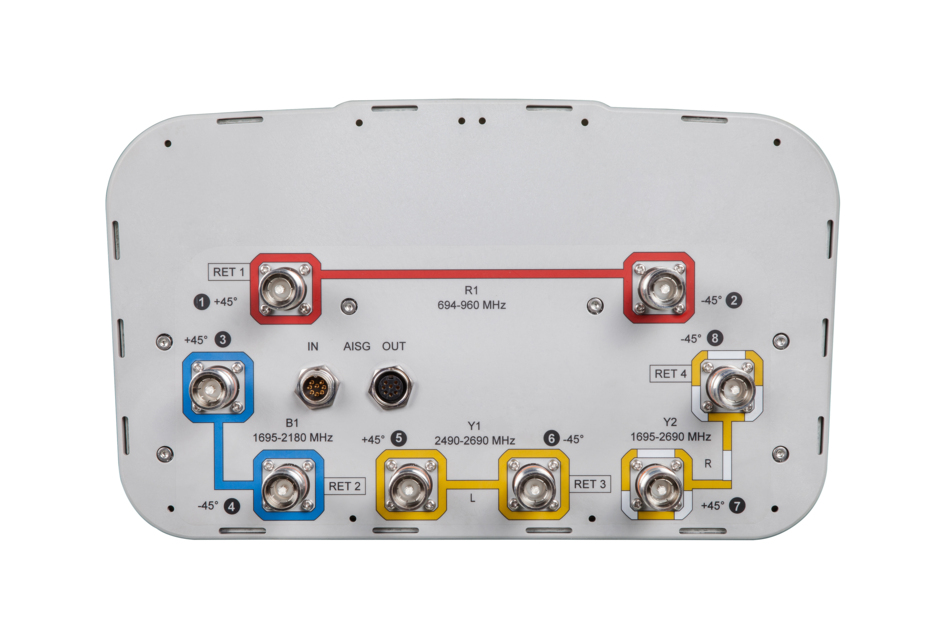

RF Connector Interface 4.3-10 Female
RF Connector Location Bottom
RF Connector Quantity, high band 6
RF Connector Quantity, mid band 0
RF Connector Quantity, low band 2
RF Connector Quantity, total 8

Remote electrical tilt (ret) information

RET Interface 8-pin DIN Female | 8-pin DIN Male
RET Interface, quantity 1 female | 1 male
Input Voltage 10–30 Vdc
Internal RET High band (3) | Low band (1)
Power Consumption, idle state, maximum 2 W
Power Consumption, normal conditions, maximum 13 W
Protocol 3GPP/AISG 2.0 (Single RET)

Dimensions

Width 350 mm | 13.78 in
Depth 208 mm | 8.189 in
Length 1400 mm | 55.118 in
Net Weight, without mounting kit 19.9 kg | 43.872 lb

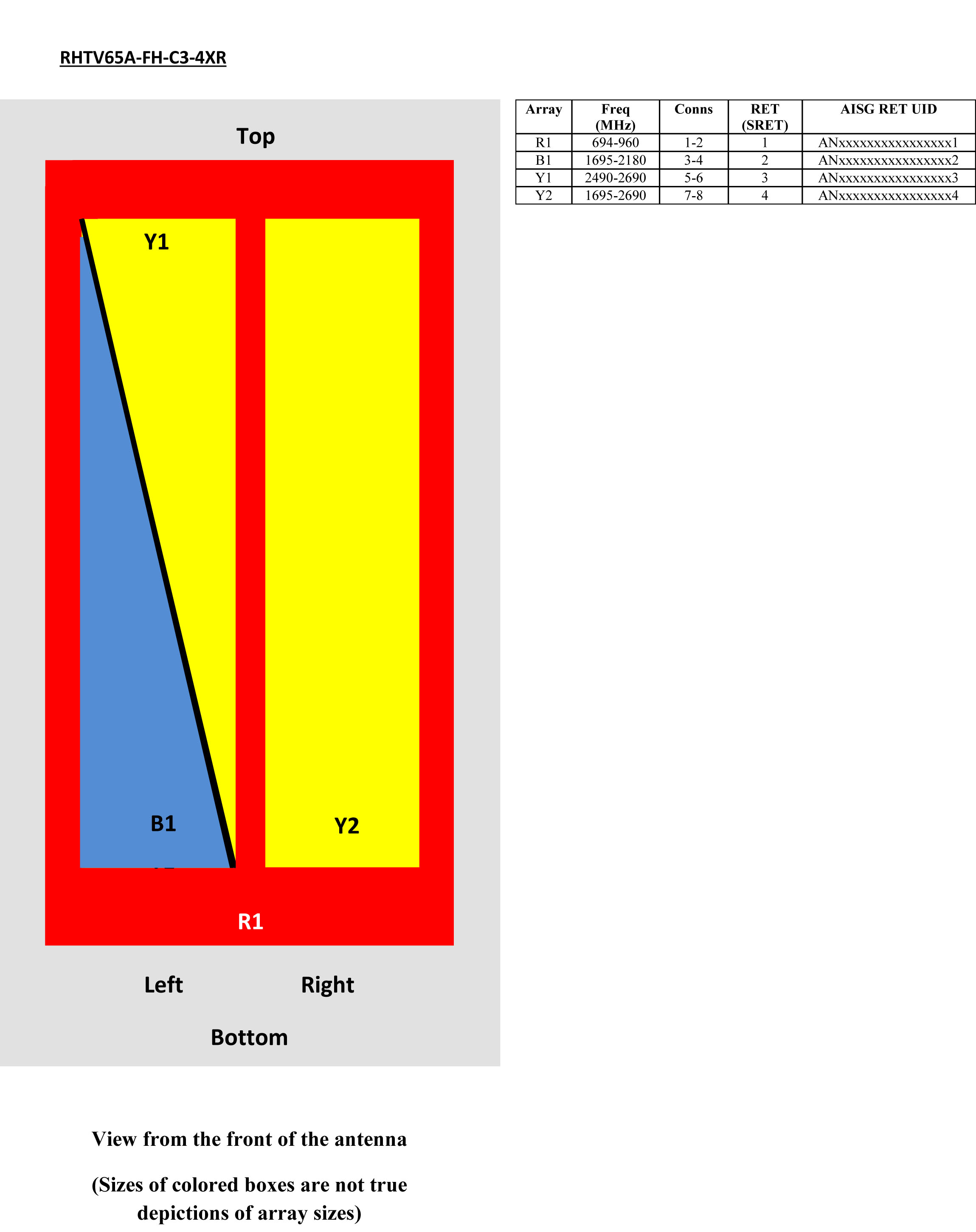

Array layout

Click on image to enlarge.

Electrical specifications

Impedance 50 ohm
Operating Frequency Band 694 – 960 MHz | 1695 – 2180 MHz | 1695 – 2690 MHz | 2490 – 2690 MHz
Polarization ±45°
Total Input Power, maximum 800 W @ 50 °C

Electrical specifications

LB LB HB1 HB1 HB2 HB3 HB3 HB3
Frequency Band, MHz 694–862 880–960 1695–1920 1920–2180 2490–2690 1695–1920 1920–2200 2300–2690
Gain, dBi 14.1 14.6 16.8 17.0 17.2 17.3 17.8 18.1
Beamwidth, Horizontal, degrees 68 63 62 62 65 62 62 65
Beamwidth, Vertical, degrees 16.2 14.2 7.4 6.6 5.3 7.4 6.6 5.6
Beam Tilt, degrees 3–18 3–18 3–13 3–13 3–13 3–13 3–13 3–13
USLS (First Lobe), dB 16 18 20 19 15 18 18 18
Front-to-Back Ratio at 180°, dB 31 30 31 35 36 31 37 37
CPR at Boresight, dB 18 22 18 22 17 21 21 20
Isolation, Cross Polarization, dB 25 25 25 25 25 25 25 25
Isolation, Inter-band, dB 30 30 30 30 30 30 30 30
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -150 -150 -150 -150 -150 -150 -150 -150
Input Power per Port at 50°C, maximum, watts 300 300 250 250 200 250 250 200

Mechanical specifications

Wind Loading @ Velocity, frontal 221.0 N @ 150 km/h (49.7 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 185.0 N @ 150 km/h (41.6 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum 469.0 N @ 150 km/h (105.4 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 234.0 N @ 150 km/h (52.6 lbf @ 150 km/h)
Wind Speed, maximum 241 km/h (150 mph)

Packaging and weights

Width, packed 456 mm | 17.953 in
Depth, packed 357 mm | 14.055 in
Length, packed 1544 mm | 60.787 in
Weight, gross 33.5 kg | 73.855 lb

Regulatory compliance/certifications

Agency Classification
CE Compliant with the relevant CE product directives
CHINA-ROHS Above maximum concentration value
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant/Exempted
UK-ROHS Compliant/Exempted

General specifications

Antenna Type Sector
Band Multiband
Grounding Type RF connector inner conductor and body grounded to reflector and mounting bracket
Performance Note Outdoor usage | Wind loading figures are validated by wind tunnel measurements described in white paper WP-112534-EN
Radome Material Fiberglass, UV resistant
Reflector Material Aluminum
RF Connector Interface 4.3-10 Female
RF Connector Location Bottom
RF Connector Quantity, high band 6
RF Connector Quantity, mid band 0
RF Connector Quantity, low band 2
RF Connector Quantity, total 8

Remote electrical tilt (ret) information

RET Interface 8-pin DIN Female | 8-pin DIN Male
RET Interface, quantity 1 female | 1 male
Input Voltage 10–30 Vdc
Internal RET High band (3) | Low band (1)
Power Consumption, idle state, maximum 2 W
Power Consumption, normal conditions, maximum 13 W
Protocol 3GPP/AISG 2.0 (Single RET)

Dimensions

Width 350 mm | 13.78 in
Depth 208 mm | 8.189 in
Length 1400 mm | 55.118 in
Net Weight, without mounting kit 19.9 kg | 43.872 lb

Electrical specifications

Impedance 50 ohm
Operating Frequency Band 694 – 960 MHz | 1695 – 2180 MHz | 1695 – 2690 MHz | 2490 – 2690 MHz
Polarization ±45°
Total Input Power, maximum 800 W @ 50 °C

Electrical specifications

LB LB HB1 HB1 HB2 HB3 HB3 HB3
Frequency Band, MHz 694–862 880–960 1695–1920 1920–2180 2490–2690 1695–1920 1920–2200 2300–2690
Gain, dBi 14.1 14.6 16.8 17.0 17.2 17.3 17.8 18.1
Beamwidth, Horizontal, degrees 68 63 62 62 65 62 62 65
Beamwidth, Vertical, degrees 16.2 14.2 7.4 6.6 5.3 7.4 6.6 5.6
Beam Tilt, degrees 3–18 3–18 3–13 3–13 3–13 3–13 3–13 3–13
USLS (First Lobe), dB 16 18 20 19 15 18 18 18
Front-to-Back Ratio at 180°, dB 31 30 31 35 36 31 37 37
CPR at Boresight, dB 18 22 18 22 17 21 21 20
Isolation, Cross Polarization, dB 25 25 25 25 25 25 25 25
Isolation, Inter-band, dB 30 30 30 30 30 30 30 30
VSWR | Return loss, dB 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0 1.5 | 14.0
PIM, 3rd Order, 2 x 20 W, dBc -150 -150 -150 -150 -150 -150 -150 -150
Input Power per Port at 50°C, maximum, watts 300 300 250 250 200 250 250 200

Mechanical specifications

Wind Loading @ Velocity, frontal 221.0 N @ 150 km/h (49.7 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral 185.0 N @ 150 km/h (41.6 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum 469.0 N @ 150 km/h (105.4 lbf @ 150 km/h)
Wind Loading @ Velocity, rear 234.0 N @ 150 km/h (52.6 lbf @ 150 km/h)
Wind Speed, maximum 241 km/h (150 mph)

Packaging and weights

Width, packed 456 mm | 17.953 in
Depth, packed 357 mm | 14.055 in
Length, packed 1544 mm | 60.787 in
Weight, gross 33.5 kg | 73.855 lb
Click on image to enlarge.

Regulatory compliance/certifications

Agency Classification
CE Compliant with the relevant CE product directives
CHINA-ROHS Above maximum concentration value
ISO 9001:2015 Designed, manufactured and/or distributed under this quality management system
ROHS Compliant/Exempted
UK-ROHS Compliant/Exempted
