NT-360M-F
3-port omni antenna, 1x 825-896 and 2x 2490–2690 MHz, low band vertical polarization and high band horizontal/vertical polarization, 360° horizontal beamwidth
Specifications
General specifications

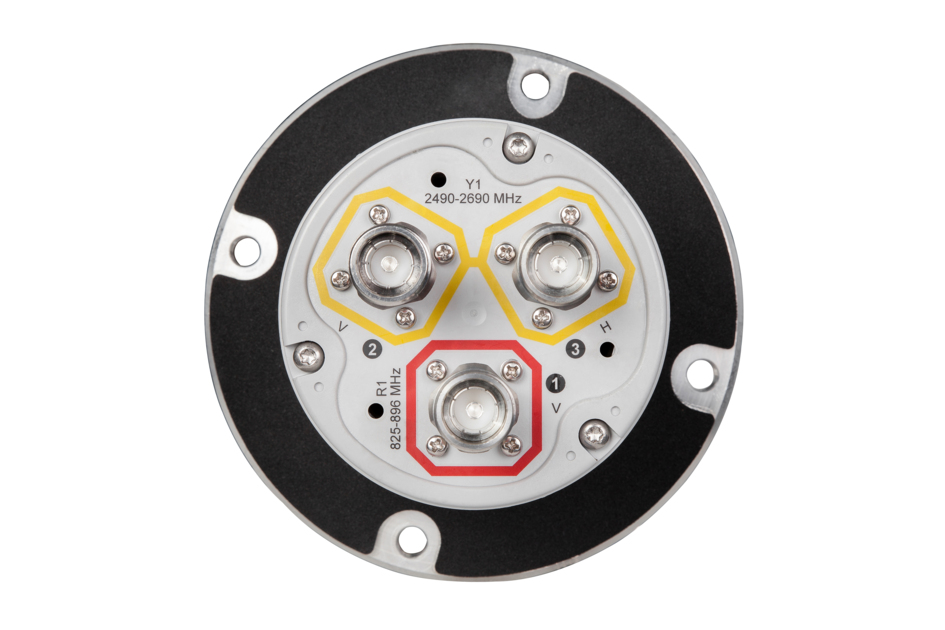

| Antenna Type | Omni |
| Band | Multiband |
| Grounding Type | RF connector body grounded to mounting interface |
| Performance Note | Outdoor usage | Wind loading figures are validated by wind tunnel measurements described in white paper WP-112534-EN |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Brass |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 2 |
| RF Connector Quantity, mid band | 0 |
| RF Connector Quantity, low band | 1 |
| RF Connector Quantity, total | 3 |
Dimensions
| Length | 998 mm | 39.291 in |
| Net Weight, without mounting kit | 3 kg | 6.614 lb |
| Outer Diameter | 56 mm | 2.205 in |

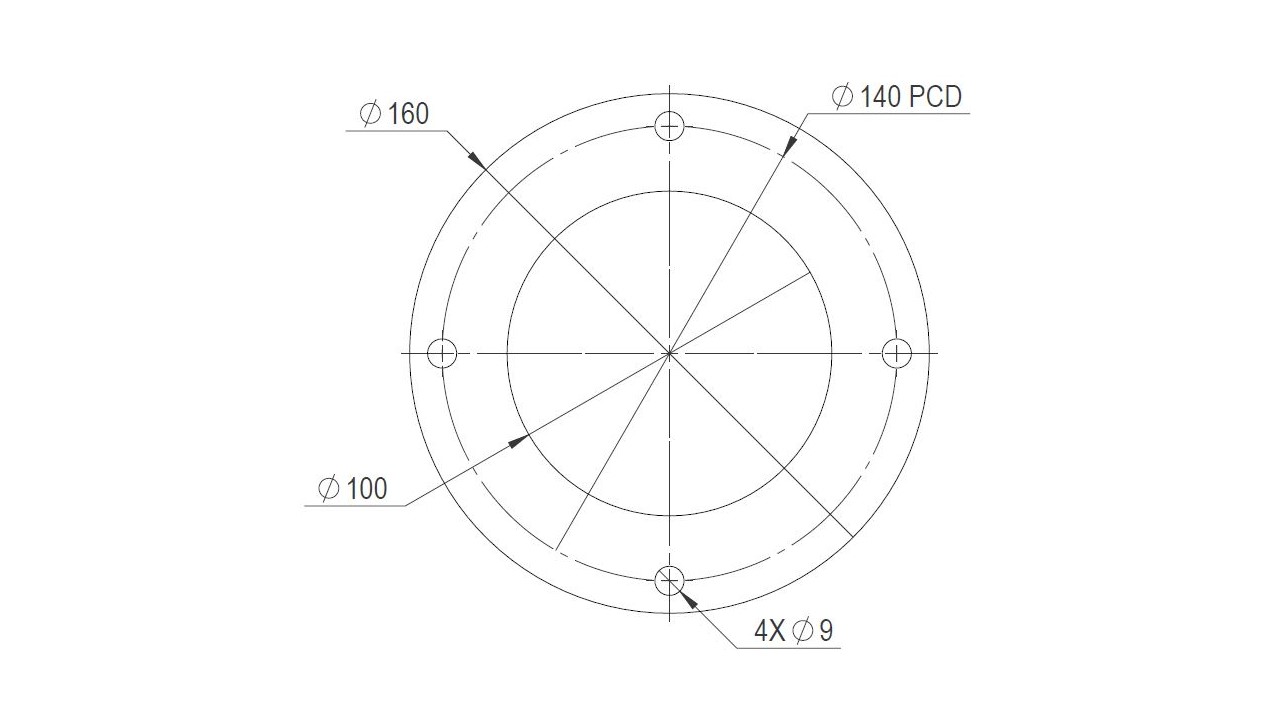

Mounting hole pattern
| Click on image to enlarge. |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 825 – 896 MHz | 2490 – 2690 MHz |
| Total Input Power, maximum | 250 W @ 50 °C |
Electrical specifications
| Frequency Band, MHz | 825–896 | 2490–2690 |
| Gain, dBi | 2.9 | 6.2 |
| Beamwidth, Horizontal, degrees | 360 | 360 |
| Beamwidth, Vertical, degrees | 130 | 20.5 |
| Beam Tilt, degrees | 0 | 0 |
| USLS, typical, dB | 9 | |
| Isolation, Cross Polarization, dB | 30 | |
| Isolation, Inter-band, dB | 26 | 26 |
| VSWR | Return loss, dB | 1.54 | 13.5 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -145 | -145 |
| Input Power per Port at 50°C, maximum, watts | 100 | 100 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 56.0 N @ 150 km/h (12.6 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and weights
| Width, packed | 251 mm | 9.882 in |
| Depth, packed | 237 mm | 9.331 in |
| Length, packed | 1121 mm | 44.134 in |
| Weight, gross | 5.9 kg | 13.007 lb |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
General specifications
| Antenna Type | Omni |
| Band | Multiband |
| Grounding Type | RF connector body grounded to mounting interface |
| Performance Note | Outdoor usage | Wind loading figures are validated by wind tunnel measurements described in white paper WP-112534-EN |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Brass |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 2 |
| RF Connector Quantity, mid band | 0 |
| RF Connector Quantity, low band | 1 |
| RF Connector Quantity, total | 3 |
Dimensions
| Length | 998 mm | 39.291 in |
| Net Weight, without mounting kit | 3 kg | 6.614 lb |
| Outer Diameter | 56 mm | 2.205 in |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 825 – 896 MHz | 2490 – 2690 MHz |
| Total Input Power, maximum | 250 W @ 50 °C |
Electrical specifications
| Frequency Band, MHz | 825–896 | 2490–2690 |
| Gain, dBi | 2.9 | 6.2 |
| Beamwidth, Horizontal, degrees | 360 | 360 |
| Beamwidth, Vertical, degrees | 130 | 20.5 |
| Beam Tilt, degrees | 0 | 0 |
| USLS, typical, dB | 9 | |
| Isolation, Cross Polarization, dB | 30 | |
| Isolation, Inter-band, dB | 26 | 26 |
| VSWR | Return loss, dB | 1.54 | 13.5 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -145 | -145 |
| Input Power per Port at 50°C, maximum, watts | 100 | 100 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 56.0 N @ 150 km/h (12.6 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and weights
| Width, packed | 251 mm | 9.882 in |
| Depth, packed | 237 mm | 9.331 in |
| Length, packed | 1121 mm | 44.134 in |
| Weight, gross | 5.9 kg | 13.007 lb |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
