NNH4SS-65C-R4
16- Port sector antenna, 4x 698-896, 8x 1695-2360 and 4x 3400-4000MHz, 65° HPBW, 4x RETs
Features and benefits
- Features broadband Low Band (698-896 MHz), Mid Band(1695-2360 MHz) and High Band (3400-4000 MHz) arrays for 4T4R (4X MIMO) capability for bands 5, 13, 25, 66 and 48. Also covers bands 12, 14, 29, and 30
- Perfect for adding 3.5 GHz bands like CBRS, C-band or DOD to macro sites
- Non-stacked high band array design provides higher gain and narrower vertical beamwidth than traditional antenna designs
- Array configuration provides capability for 4T4R (4X MIMO) on Low Band, dual 4T4R (4X MIMO) on Mid Band and 4T4R (4X MIMO) on High Band (LookupValue_1605944364612876)
- Excellent wind loading characteristics
Specifications
General specifications
| Antenna Type | Sector |
| Band | Multiband |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Low loss circuit board |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 4 |
| RF Connector Quantity, mid band | 8 |
| RF Connector Quantity, low band | 4 |
| RF Connector Quantity, total | 16 |
Remote electrical tilt (ret) information
| RET Hardware | CommRET v2 |
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 1 female | 1 male |
| Input Voltage | 10–30 Vdc |
| Internal RET | High band (1) | Low band (1) | Mid band (2) |
| Power Consumption, active state, maximum | 10 W |
| Power Consumption, idle state, maximum | 2 W |
| Protocol | 3GPP/AISG 2.0 (Single RET) |
Dimensions
| Width | 498 mm | 19.606 in |
| Depth | 197 mm | 7.756 in |
| Length | 2438 mm | 95.984 in |
| Net Weight, without mounting kit | 46 kg | 101.413 lb |

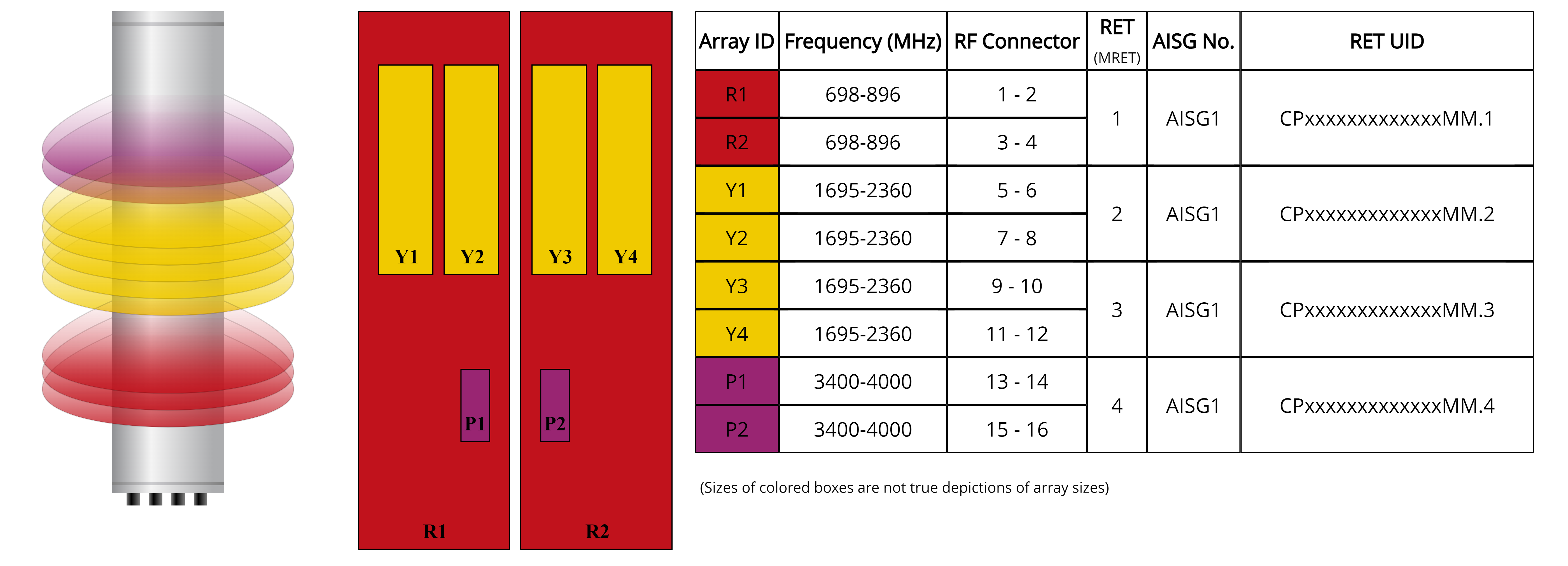

Array layout
| Click on image to enlarge. |

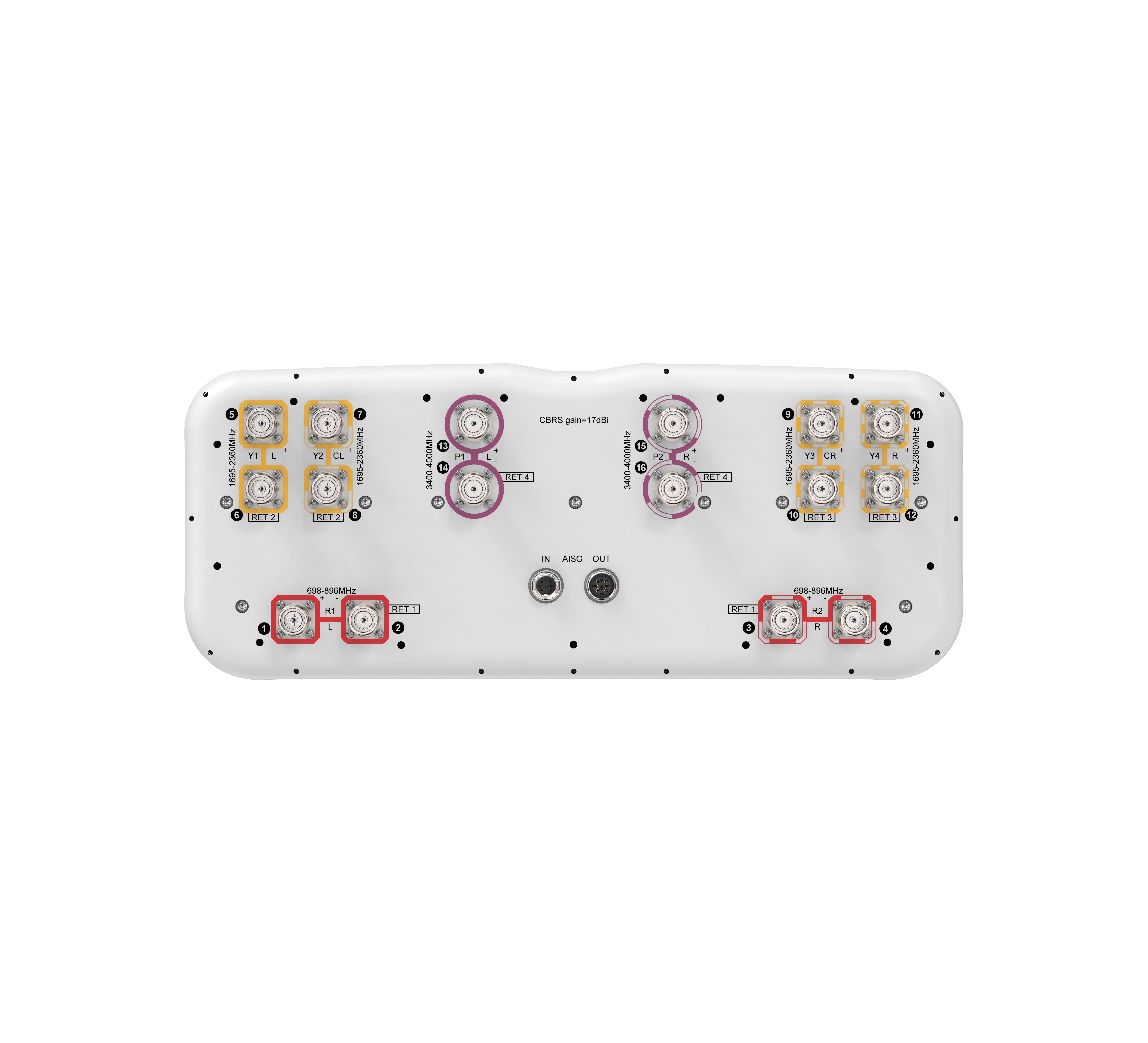

Port configuration
| Click on image to enlarge. |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 698 – 896 MHz | 1695 – 2360 MHz | 3400 – 4000 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 1,600 W @ 50 °C |
Electrical specifications
| R1,R2 | R1,R2 | Y1-Y4 | Y1-Y4 | Y1-Y4 | Y1-Y4 | P1,P2 | P1,P2 | P1,P2 | |
| Frequency Band, MHz | 698–806 | 806–896 | 1695–1880 | 1850–1990 | 1920–2180 | 2300–2360 | 3400–3550 | 3550–3700 | 3700–4000 |
| RF Port | 1-4 | 1-4 | 5-12 | 5-12 | 5-12 | 5-12 | 13-16 | 13-16 | 13-16 |
| Gain, dBi | 15.4 | 15.9 | 17.3 | 17.9 | 18.5 | 18.8 | 16.9 | 17.4 | 17.6 |
| Beamwidth, Horizontal, degrees | 73 | 66 | 69 | 68 | 61 | 58 | 77 | 70 | 67 |
| Beamwidth, Vertical, degrees | 9.8 | 8.4 | 5.8 | 5.4 | 5.1 | 4.7 | 7.3 | 7.1 | 6.7 |
| Beam Tilt, degrees | 0–10 | 0–10 | 0–10 | 0–10 | 0–10 | 0–10 | 0–10 | 0–10 | 0–10 |
| USLS (First Lobe), dB | 16 | 16 | 16 | 18 | 18 | 18 | 17 | 17 | 17 |
| Front-to-Back Ratio at 180°, dB | 29 | 31 | 32 | 32 | 32 | 36 | 30 | 30 | 31 |
| CPR at Boresight, dB | 24 | 26 | 19 | 20 | 21 | 21 | 15 | 15 | 16 |
| Isolation, Cross Polarization, dB | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Isolation, Inter-band, dB | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -150 | -150 | -150 | -150 | -150 | -150 | -145 | -145 | -145 |
| Input Power per Port at 50°C, maximum, watts | 300 | 300 | 300 | 250 | 250 | 200 | 100 | 100 | 100 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 865.0 N @ 150 km/h (194.5 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 268.0 N @ 150 km/h (60.2 lbf @ 150 km/h) |
| Wind Loading @ Velocity, maximum | 1,037.0 N @ 150 km/h (233.1 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 595.0 N @ 150 km/h (133.8 lbf @ 150 km/h) |
| Wind Speed, maximum | 241.4 km/h (150 mph) |
Packaging and weights
| Width, packed | 565 mm | 22.244 in |
| Depth, packed | 309 mm | 12.165 in |
| Length, packed | 2685 mm | 105.709 in |
| Weight, gross | 61 kg | 134.482 lb |
Regulatory compliance/certifications
| Agency | Classification |
| UK-ROHS | Compliant |
General specifications
| Antenna Type | Sector |
| Band | Multiband |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector inner conductor and body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Low loss circuit board |
| Reflector Material | Aluminum |
| RF Connector Interface | 4.3-10 Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 4 |
| RF Connector Quantity, mid band | 8 |
| RF Connector Quantity, low band | 4 |
| RF Connector Quantity, total | 16 |
Remote electrical tilt (ret) information
| RET Hardware | CommRET v2 |
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 1 female | 1 male |
| Input Voltage | 10–30 Vdc |
| Internal RET | High band (1) | Low band (1) | Mid band (2) |
| Power Consumption, active state, maximum | 10 W |
| Power Consumption, idle state, maximum | 2 W |
| Protocol | 3GPP/AISG 2.0 (Single RET) |
Dimensions
| Width | 498 mm | 19.606 in |
| Depth | 197 mm | 7.756 in |
| Length | 2438 mm | 95.984 in |
| Net Weight, without mounting kit | 46 kg | 101.413 lb |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 698 – 896 MHz | 1695 – 2360 MHz | 3400 – 4000 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 1,600 W @ 50 °C |
Electrical specifications
| R1,R2 | R1,R2 | Y1-Y4 | Y1-Y4 | Y1-Y4 | Y1-Y4 | P1,P2 | P1,P2 | P1,P2 | |
| Frequency Band, MHz | 698–806 | 806–896 | 1695–1880 | 1850–1990 | 1920–2180 | 2300–2360 | 3400–3550 | 3550–3700 | 3700–4000 |
| RF Port | 1-4 | 1-4 | 5-12 | 5-12 | 5-12 | 5-12 | 13-16 | 13-16 | 13-16 |
| Gain, dBi | 15.4 | 15.9 | 17.3 | 17.9 | 18.5 | 18.8 | 16.9 | 17.4 | 17.6 |
| Beamwidth, Horizontal, degrees | 73 | 66 | 69 | 68 | 61 | 58 | 77 | 70 | 67 |
| Beamwidth, Vertical, degrees | 9.8 | 8.4 | 5.8 | 5.4 | 5.1 | 4.7 | 7.3 | 7.1 | 6.7 |
| Beam Tilt, degrees | 0–10 | 0–10 | 0–10 | 0–10 | 0–10 | 0–10 | 0–10 | 0–10 | 0–10 |
| USLS (First Lobe), dB | 16 | 16 | 16 | 18 | 18 | 18 | 17 | 17 | 17 |
| Front-to-Back Ratio at 180°, dB | 29 | 31 | 32 | 32 | 32 | 36 | 30 | 30 | 31 |
| CPR at Boresight, dB | 24 | 26 | 19 | 20 | 21 | 21 | 15 | 15 | 16 |
| Isolation, Cross Polarization, dB | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Isolation, Inter-band, dB | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -150 | -150 | -150 | -150 | -150 | -150 | -145 | -145 | -145 |
| Input Power per Port at 50°C, maximum, watts | 300 | 300 | 300 | 250 | 250 | 200 | 100 | 100 | 100 |
Mechanical specifications
| Wind Loading @ Velocity, frontal | 865.0 N @ 150 km/h (194.5 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 268.0 N @ 150 km/h (60.2 lbf @ 150 km/h) |
| Wind Loading @ Velocity, maximum | 1,037.0 N @ 150 km/h (233.1 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 595.0 N @ 150 km/h (133.8 lbf @ 150 km/h) |
| Wind Speed, maximum | 241.4 km/h (150 mph) |
Packaging and weights
| Width, packed | 565 mm | 22.244 in |
| Depth, packed | 309 mm | 12.165 in |
| Length, packed | 2685 mm | 105.709 in |
| Weight, gross | 61 kg | 134.482 lb |
| Click on image to enlarge. |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
| UK-ROHS | Compliant |
