NNH4-65A-R6H4

12-port sector antenna, 4x 698–896 and 8x 1695–2360 MHz, 65° HPBW, 6x RET.

Finish making your selections or clear them to view relevant specifications.

Find a partner

Features and benefits

Features broadband Low Band (698-896 MHz) and High Band (1695-2360 MHz) arrays for 4T4R (4X MIMO) capability for Band 14, AWS, PCS and WCS applications
Non-stacked high band array design provides higher gain and narrower vertical beamwidth than traditional antenna designs
Independent tilt for all arrays
Array configuration provides capability for 4T4R (4x MIMO) on Low band and Dual 4T4R (4x MIMO) on High band
Optimized SPR performance across all operating bands
Excellent wind loading characteristics
Supports re-configurable antenna sharing capability enabling control of the internal RET system using up to two separate RET compatible OEM radios (Supports_r)

Specifications

General specifications

Antenna Type	Sector
Band	Multiband
Color	Light Gray (RAL 7035)
Grounding Type	RF connector body grounded to reflector and mounting bracket
Performance Note	Outdoor usage \| Wind loading figures are validated by wind tunnel measurements described in white paper WP-112534-EN
Radome Material	Fiberglass, UV resistant
Radiator Material	Aluminum \| Low loss circuit board
Reflector Material	Aluminum

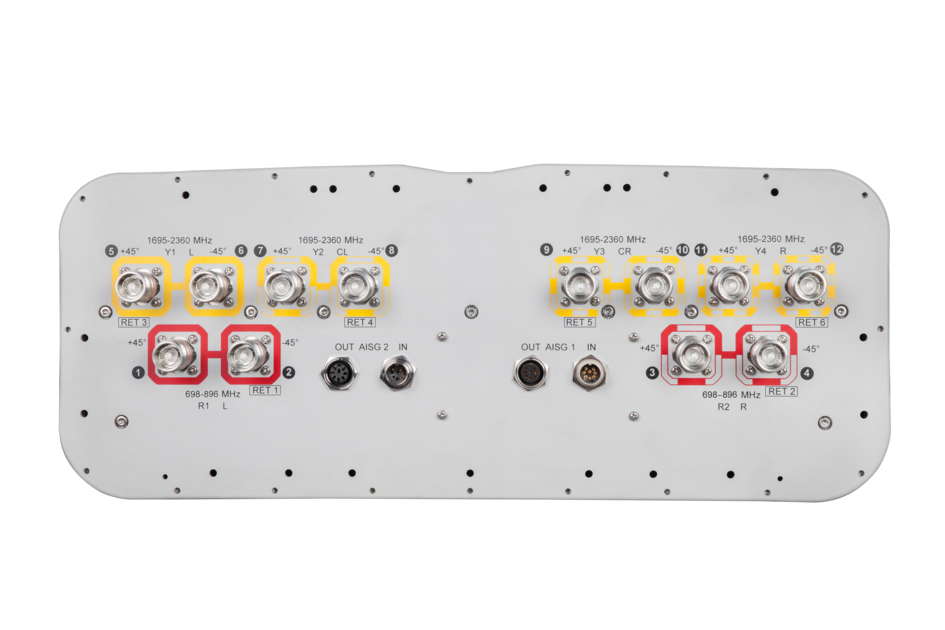

RF Connector Interface	4.3-10 Female
RF Connector Location	Bottom
RF Connector Quantity, high band	8
RF Connector Quantity, mid band	0
RF Connector Quantity, low band	4
RF Connector Quantity, total	12

RET Hardware	CommRET v2
RET Interface	8-pin DIN Female \| 8-pin DIN Male
RET Interface, quantity	2 female \| 2 male
Input Voltage	10–30 Vdc
Internal RET	High band (4) \| Low band (2)
Power Consumption, idle state, maximum	1 W
Power Consumption, normal conditions, maximum	8 W
Protocol	3GPP/AISG 2.0 (Multi-RET)

Width	498 mm \| 19.606 in
Depth	197 mm \| 7.756 in
Length	1499 mm \| 59.016 in
Net Weight, without mounting kit	33.5 kg \| 73.855 lb

Click on image to enlarge.

Click on image to enlarge.

Frequency Band, MHz	698–806	806–896	1695–1880	1850–1990	1920–2180	2300–2360
Gain, dBi	13.2	13.7	16.1	17.0	17.6	18.2
Beamwidth, Horizontal, degrees	69	66	71	67	61	57
Beamwidth, Vertical, degrees	17.1	15.4	7.5	6.9	6.4	5.7
Beam Tilt, degrees	2–16	2–16	2–12	2–12	2–12	2–12
USLS (First Lobe), dB	19	19	15	17	18	21
Front-to-Back Ratio at 180°, dB	32	31	33	33	34	33
CPR at Boresight, dB	24	24	19	21	21	18
Isolation, Cross Polarization, dB	25	25	25	25	25	25
Isolation, Inter-band, dB	25	25	25	25	25	25
VSWR \| Return loss, dB	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0	1.5 \| 14.0
PIM, 3rd Order, 2 x 20 W, dBc	-150	-150	-150	-150	-150	-150
Input Power per Port at 50°C, maximum, watts	300	300	300	250	250	200

Effective Projective Area (EPA), frontal	0.52 m² \| 5.597 ft²
Effective Projective Area (EPA), lateral	0.17 m² \| 1.83 ft²
Mechanical Tilt Range	0°–15°
Wind Loading @ Velocity, frontal	549.0 N @ 150 km/h (123.4 lbf @ 150 km/h)
Wind Loading @ Velocity, lateral	183.0 N @ 150 km/h (41.1 lbf @ 150 km/h)
Wind Loading @ Velocity, maximum	712.0 N @ 150 km/h (160.1 lbf @ 150 km/h)
Wind Loading @ Velocity, rear	452.0 N @ 150 km/h (101.6 lbf @ 150 km/h)
Wind Speed, maximum	241 km/h (150 mph)

Agency	Classification
CHINA-ROHS	Above maximum concentration value
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
ROHS	Compliant/Exempted
UK-ROHS	Compliant/Exempted
