NHH-85B-R2B
6-port sector antenna, 2x 698–896 and 4x 1695–2360 MHz, 85° HPBW, 2x RET. Both high bands share the same electrical tilt.
Features and benefits
- Interleaved dipole technology providing for attractive, low wind load mechanical package
- Internal SBT on low and high band allow remote RET control from the radio over the RF jumper cable
- Separate RS-485 RET input/output for low and high band
- One RET for low band and one RET for both high bands to ensure same tilt level for 4x Rx or 4x MIMO
Specifications
General specifications
| Antenna Type | Sector |
| Band | Multiband |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Aluminum | Low loss circuit board |
| Reflector Material | Aluminum |
| RF Connector Interface | 7-16 DIN Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 4 |
| RF Connector Quantity, low band | 2 |
| RF Connector Quantity, total | 6 |
Remote electrical tilt (ret) information
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 2 female | 2 male |
| Input Voltage | 10–30 Vdc |
| Internal Bias Tee | Port 1 | Port 3 |
| Internal RET | High band (1) | Low band (1) |
| Power Consumption, active state, maximum | 13 W |
| Power Consumption, idle state, maximum | 2 W |
| Protocol | 3GPP/AISG 2.0 |
Dimensions
| Width | 301 mm | 11.850 in |
| Depth | 180 mm | 7.087 in |
| Length | 1851 mm | 72.874 in |
| Net Weight, antenna only | 19.8 kg | 43.651 lb |

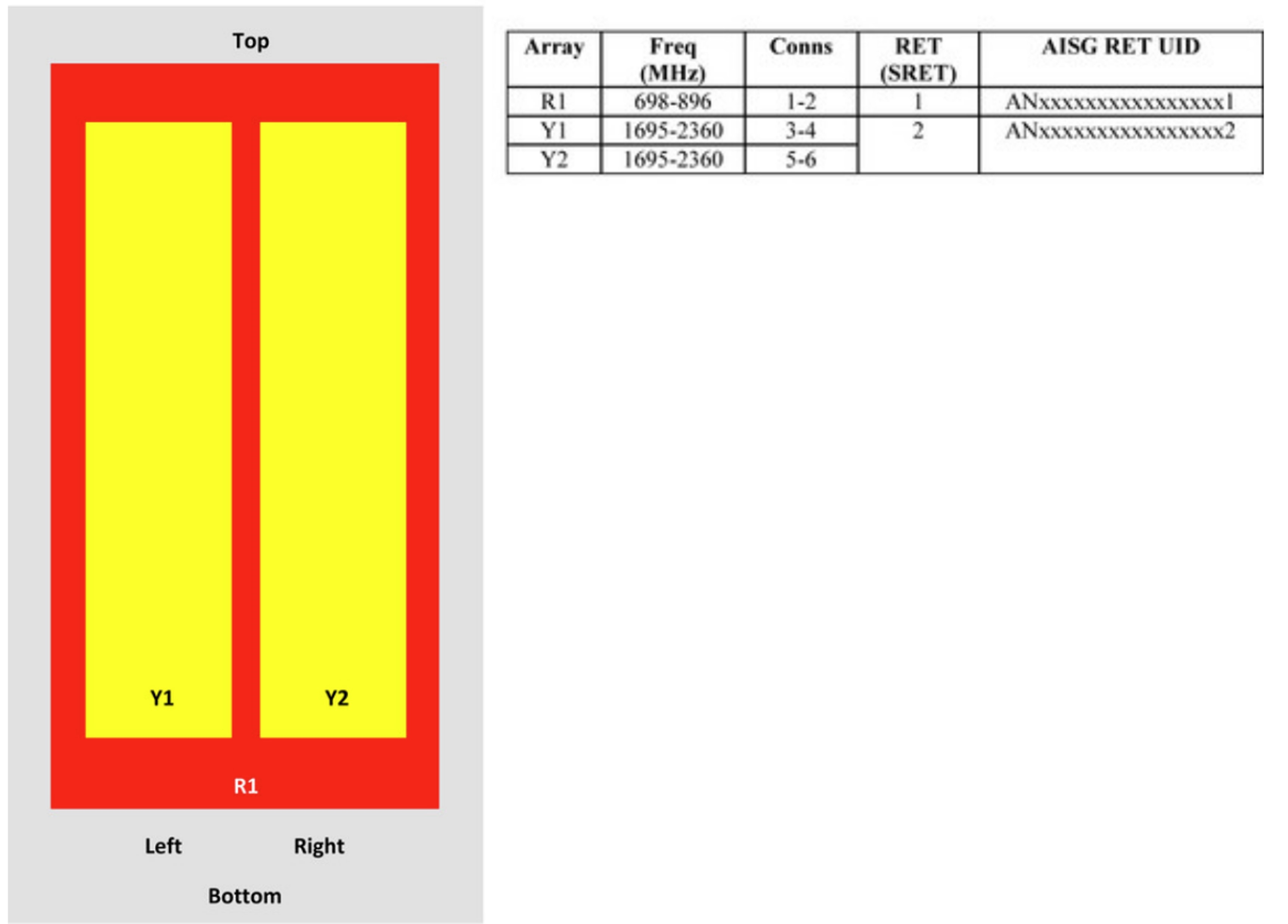

Array layout
| Click on image to enlarge. |

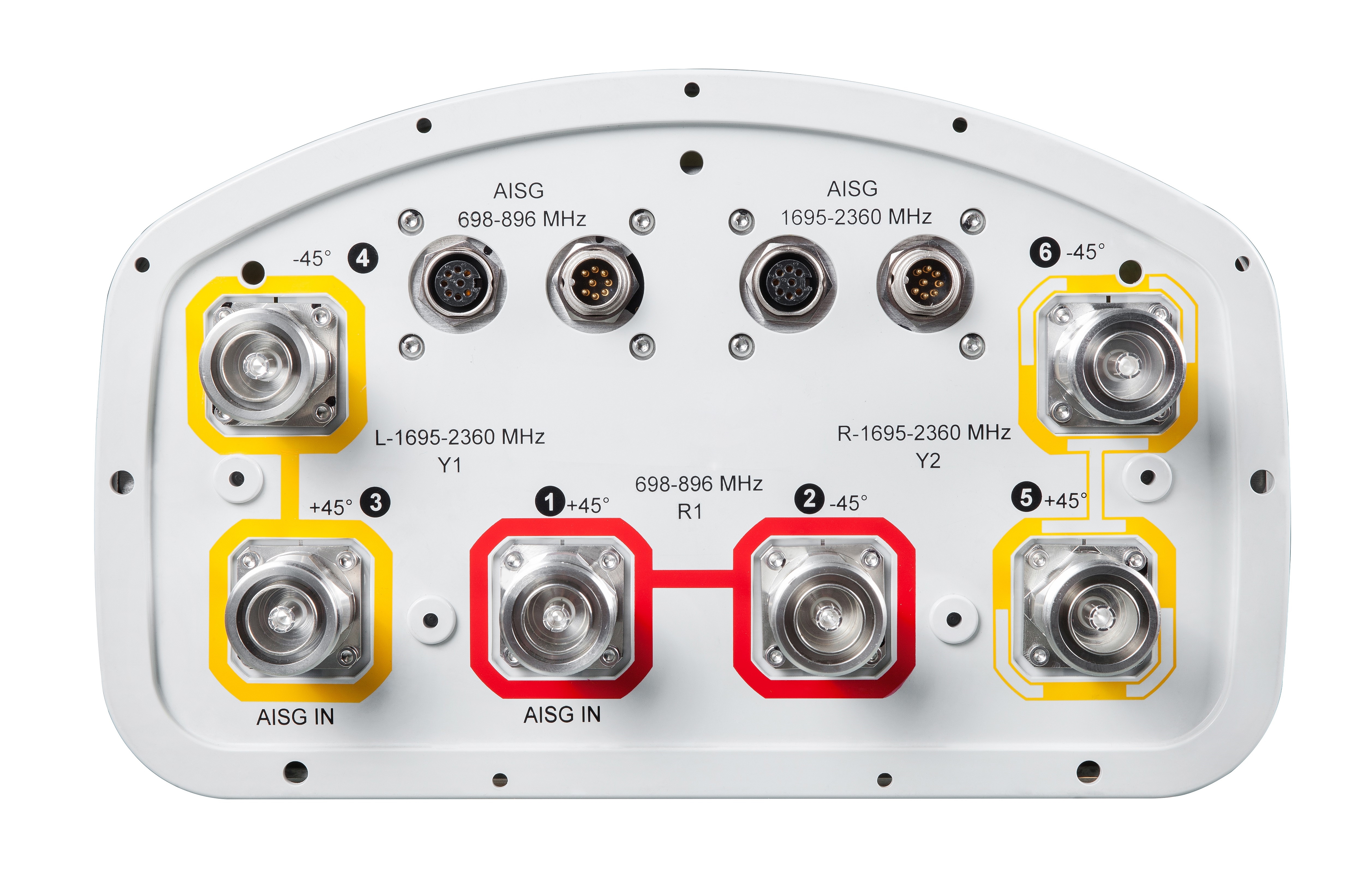

Port configuration
| Click on image to enlarge. |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 698 – 896 MHz | 1695 – 2360 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 900 W @ 50 °C |
Electrical specifications
| R1 | R1 | Y1,Y2 | Y1,Y2 | Y1,Y2 | Y1,Y2 | |
| Frequency Band, MHz | 698–806 | 806–896 | 1695–1880 | 1850–1990 | 1920–2200 | 2300–2360 |
| RF Port | 1-2 | 1-2 | 3-6 | 3-6 | 3-6 | 3-6 |
| Gain, dBi | 14.4 | 14.4 | 17.1 | 17.6 | 17.9 | 18.1 |
| Beamwidth, Horizontal, degrees | 82 | 87 | 80 | 79 | 78 | 78 |
| Beamwidth, Vertical, degrees | 12.3 | 11.2 | 5.7 | 5.3 | 5 | 4.6 |
| Beam Tilt, degrees | 0–12 | 0–12 | 0–8 | 0–8 | 0–8 | 0–8 |
| USLS (First Lobe), dB | 18 | 16 | 14 | 16 | 17 | 18 |
| Front-to-Back Ratio at 180°, dB | 28 | 26 | 34 | 30 | 30 | 30 |
| Isolation, Cross Polarization, dB | 25 | 25 | 25 | 25 | 25 | 25 |
| Isolation, Inter-band, dB | 30 | 30 | 25 | 25 | 25 | 25 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 | -153 | -153 | -153 | -153 |
| Input Power per Port at 50°C, maximum, watts | 300 | 300 | 250 | 250 | 250 | 200 |
Mechanical specifications
| Effective Projective Area (EPA), frontal | 0.27 m² | 2.906 ft² |
| Effective Projective Area (EPA), lateral | 0.22 m² | 2.368 ft² |
| Wind Loading @ Velocity, frontal | 283.0 N @ 150 km/h (63.6 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 234.0 N @ 150 km/h (52.6 lbf @ 150 km/h) |
| Wind Loading @ Velocity, maximum | 545.0 N @ 150 km/h (122.5 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 287.0 N @ 150 km/h (64.5 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and weights
| Width, packed | 380 mm | 14.961 in |
| Depth, packed | 295 mm | 11.614 in |
| Length, packed | 1973 mm | 77.677 in |
| Weight, gross | 31.1 kg | 68.564 lb |
Regulatory compliance/certifications
| Agency | Classification |
CHINA-ROHS
|
Above maximum concentration value |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant, Compliant/Exempted |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
General specifications
| Antenna Type | Sector |
| Band | Multiband |
| Color | Light Gray (RAL 7035) |
| Grounding Type | RF connector body grounded to reflector and mounting bracket |
| Performance Note | Outdoor usage |
| Radome Material | Fiberglass, UV resistant |
| Radiator Material | Aluminum | Low loss circuit board |
| Reflector Material | Aluminum |
| RF Connector Interface | 7-16 DIN Female |
| RF Connector Location | Bottom |
| RF Connector Quantity, high band | 4 |
| RF Connector Quantity, low band | 2 |
| RF Connector Quantity, total | 6 |
Remote electrical tilt (ret) information
| RET Interface | 8-pin DIN Female | 8-pin DIN Male |
| RET Interface, quantity | 2 female | 2 male |
| Input Voltage | 10–30 Vdc |
| Internal Bias Tee | Port 1 | Port 3 |
| Internal RET | High band (1) | Low band (1) |
| Power Consumption, active state, maximum | 13 W |
| Power Consumption, idle state, maximum | 2 W |
| Protocol | 3GPP/AISG 2.0 |
Dimensions
| Width | 301 mm | 11.850 in |
| Depth | 180 mm | 7.087 in |
| Length | 1851 mm | 72.874 in |
| Net Weight, antenna only | 19.8 kg | 43.651 lb |
Electrical specifications
| Impedance | 50 ohm |
| Operating Frequency Band | 698 – 896 MHz | 1695 – 2360 MHz |
| Polarization | ±45° |
| Total Input Power, maximum | 900 W @ 50 °C |
Electrical specifications
| R1 | R1 | Y1,Y2 | Y1,Y2 | Y1,Y2 | Y1,Y2 | |
| Frequency Band, MHz | 698–806 | 806–896 | 1695–1880 | 1850–1990 | 1920–2200 | 2300–2360 |
| RF Port | 1-2 | 1-2 | 3-6 | 3-6 | 3-6 | 3-6 |
| Gain, dBi | 14.4 | 14.4 | 17.1 | 17.6 | 17.9 | 18.1 |
| Beamwidth, Horizontal, degrees | 82 | 87 | 80 | 79 | 78 | 78 |
| Beamwidth, Vertical, degrees | 12.3 | 11.2 | 5.7 | 5.3 | 5 | 4.6 |
| Beam Tilt, degrees | 0–12 | 0–12 | 0–8 | 0–8 | 0–8 | 0–8 |
| USLS (First Lobe), dB | 18 | 16 | 14 | 16 | 17 | 18 |
| Front-to-Back Ratio at 180°, dB | 28 | 26 | 34 | 30 | 30 | 30 |
| Isolation, Cross Polarization, dB | 25 | 25 | 25 | 25 | 25 | 25 |
| Isolation, Inter-band, dB | 30 | 30 | 25 | 25 | 25 | 25 |
| VSWR | Return loss, dB | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 | 1.5 | 14.0 |
| PIM, 3rd Order, 2 x 20 W, dBc | -153 | -153 | -153 | -153 | -153 | -153 |
| Input Power per Port at 50°C, maximum, watts | 300 | 300 | 250 | 250 | 250 | 200 |
Mechanical specifications
| Effective Projective Area (EPA), frontal | 0.27 m² | 2.906 ft² |
| Effective Projective Area (EPA), lateral | 0.22 m² | 2.368 ft² |
| Wind Loading @ Velocity, frontal | 283.0 N @ 150 km/h (63.6 lbf @ 150 km/h) |
| Wind Loading @ Velocity, lateral | 234.0 N @ 150 km/h (52.6 lbf @ 150 km/h) |
| Wind Loading @ Velocity, maximum | 545.0 N @ 150 km/h (122.5 lbf @ 150 km/h) |
| Wind Loading @ Velocity, rear | 287.0 N @ 150 km/h (64.5 lbf @ 150 km/h) |
| Wind Speed, maximum | 241 km/h (150 mph) |
Packaging and weights
| Width, packed | 380 mm | 14.961 in |
| Depth, packed | 295 mm | 11.614 in |
| Length, packed | 1973 mm | 77.677 in |
| Weight, gross | 31.1 kg | 68.564 lb |
| Click on image to enlarge. |
| Click on image to enlarge. |
Regulatory compliance/certifications
| Agency | Classification |
|
CHINA-ROHS
|
Above maximum concentration value |
| ROHS | Compliant/Exempted |
| UK-ROHS | Compliant, Compliant/Exempted |
| REACH-SVHC | Compliant as per SVHC revision on www.andrew.com/ProductCompliance |
Documentation & downloads
Assembly drawing
Product information
Product specification
Assembly drawing
Product compliance documentation
Product information
Product specification
